Displaying & Reading Trouble Codes
>>
Without Scan Tools
>>
With O/D Off Indicator Lamp
With O/D Off Indicator Lamp

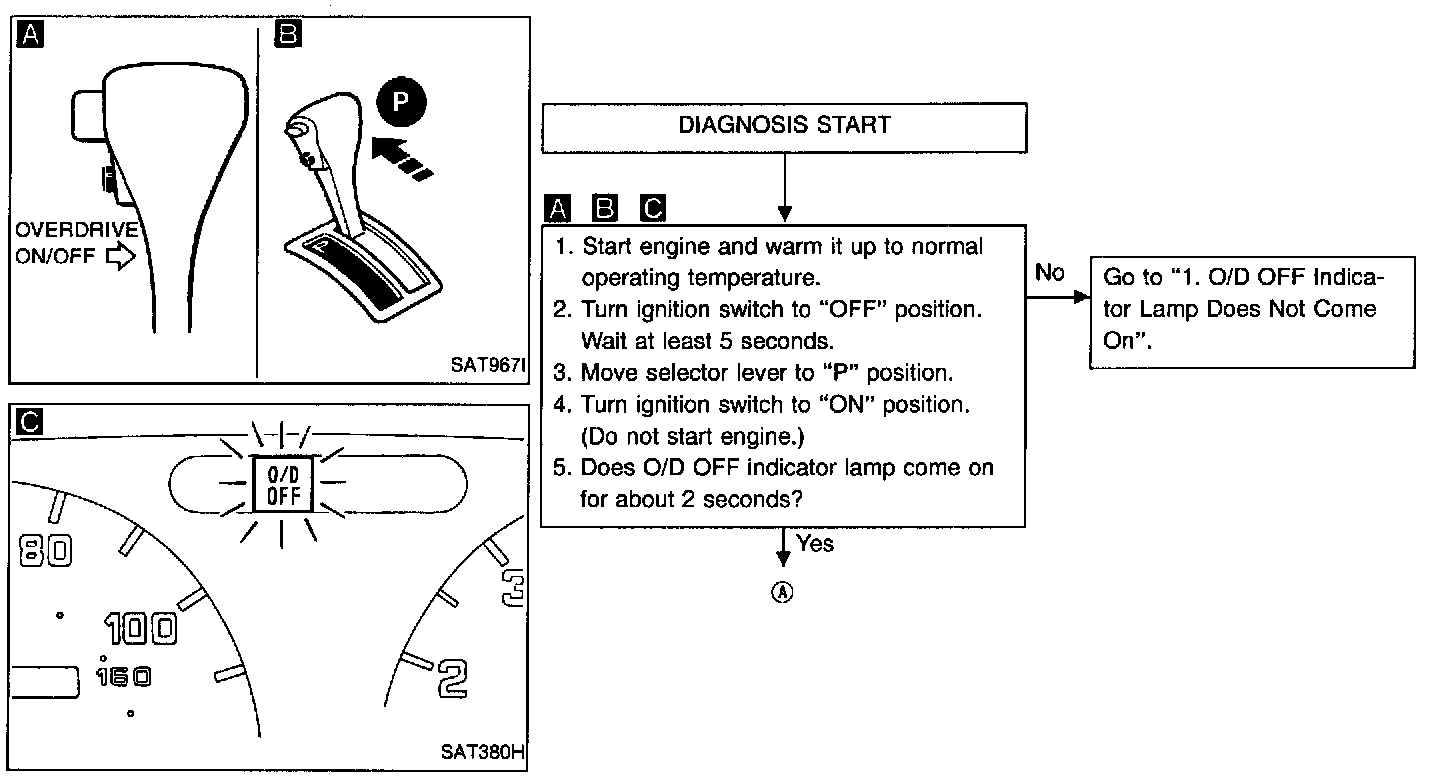

TCM SELF-DIAGNOSTIC PROCEDURE (No Tools) (1 Of 2):

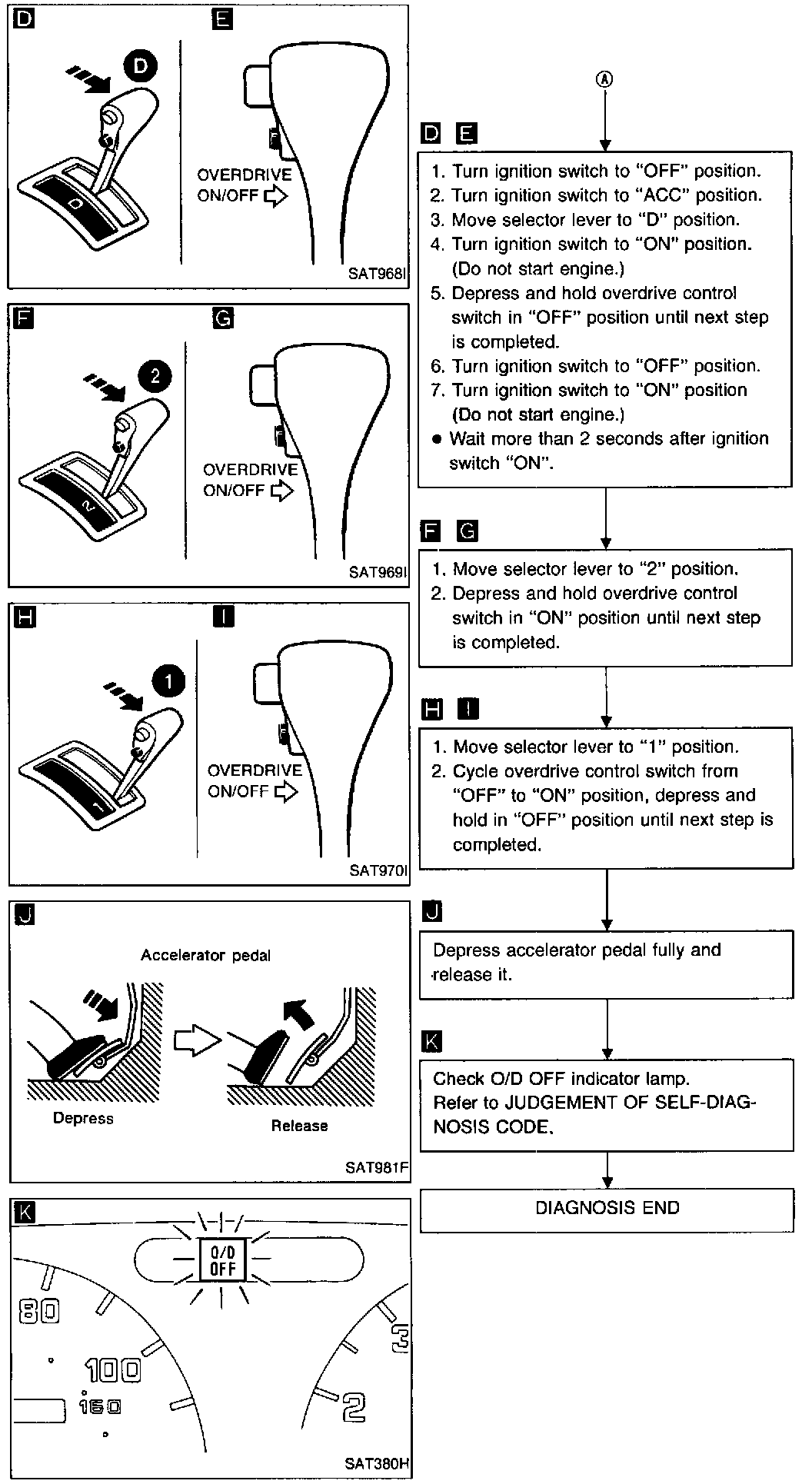

TCM SELF-DIAGNOSTIC PROCEDURE (No Tools) (2 Of 2):
