Part 1

#3 - CRUISE TEST (WITH CONSULT)
Check all items listed in Parts 1 through 3.

Part 1 (1 Of 2):

Part 1 (2 Of 2):

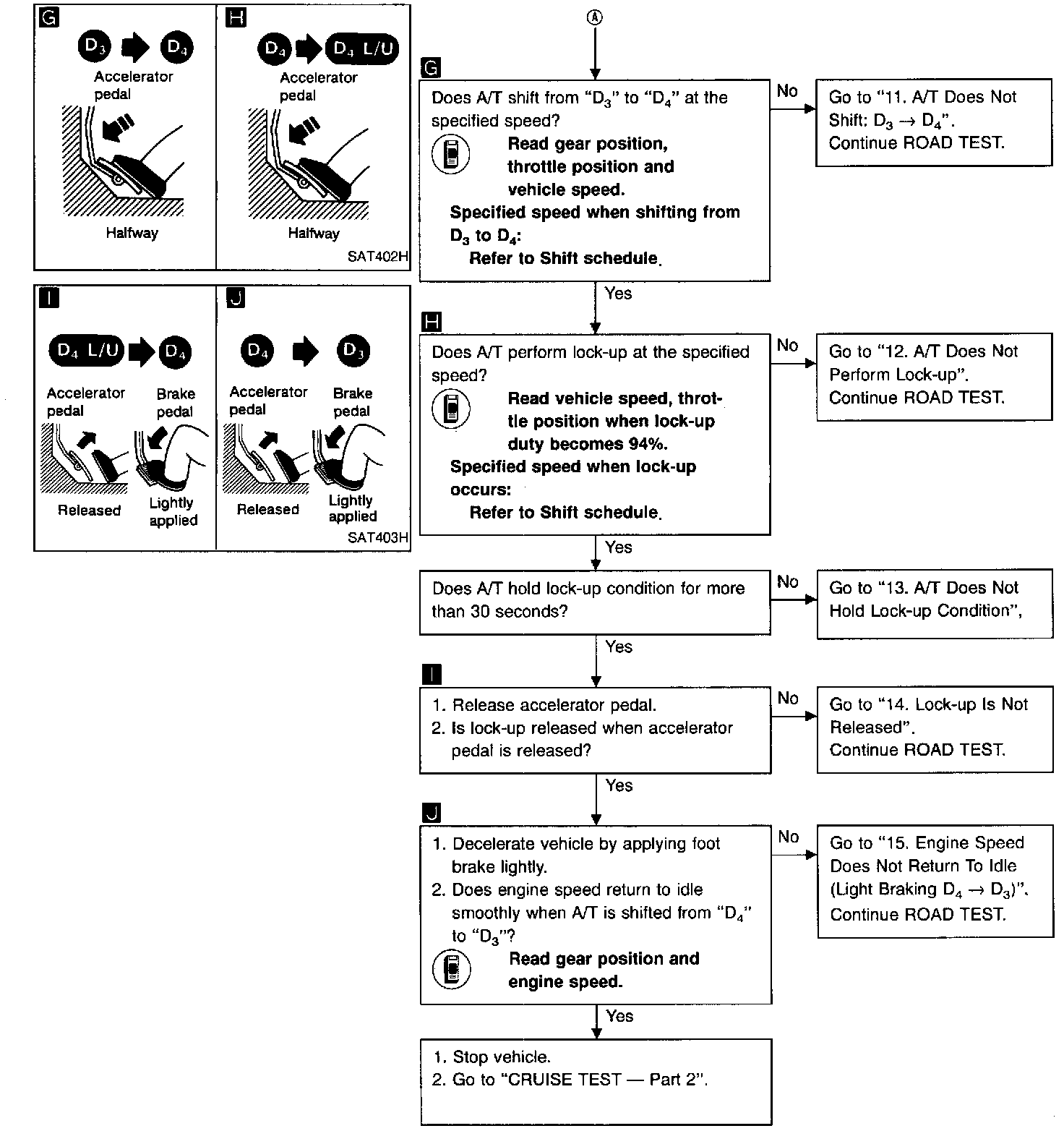

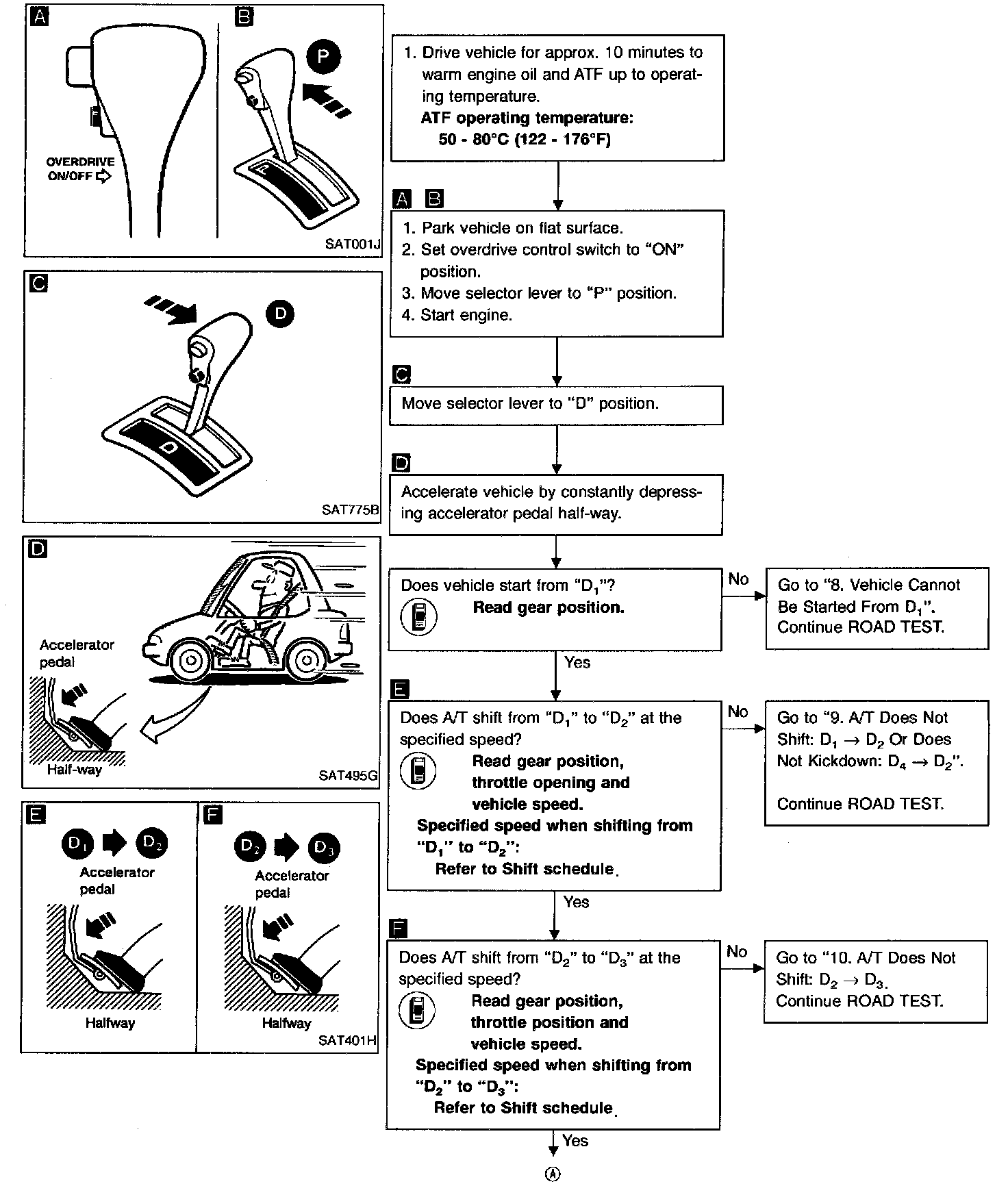

CRUISE TEST - Part 1


Using CONSULT, conduct a cruise test and record the result.

Print the result and ensure that shifts and lock-ups take place as per "Shift Schedule."

CONSULT SETTING PROCEDURE
1. Turn off ignition switch.

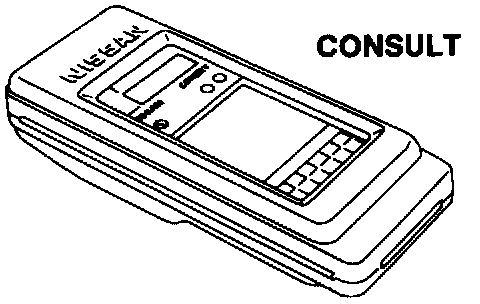

2. Connect "CONSULT" to data link connector for CONSULT.

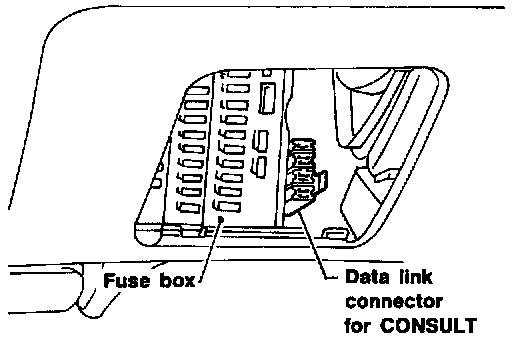

5Data link connector for CONSULT is located in left side of dash panel.

3. Turn on ignition switch.

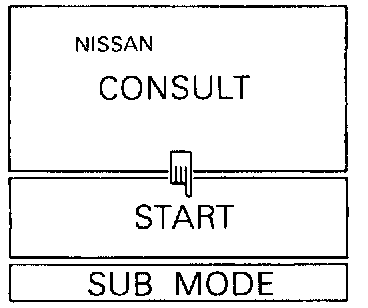

4. Touch "START".

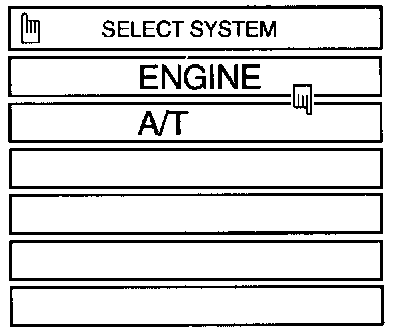

5. Touch "A/T".

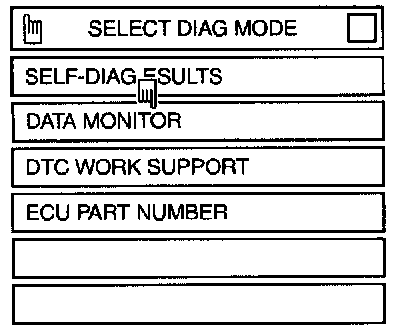

6. Touch "DATA MONITOR".

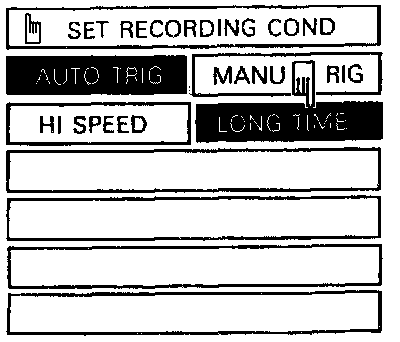

7. Touch "SETTING" to set recording condition.






8. Touch "LONG TIME" and "ENTER" key.

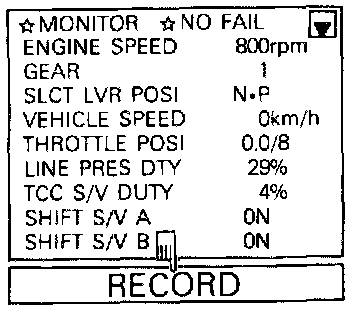

9. Go back to SELECT MONITOR ITEM and touch "MAIN SIGNALS".
10. Touch "START".

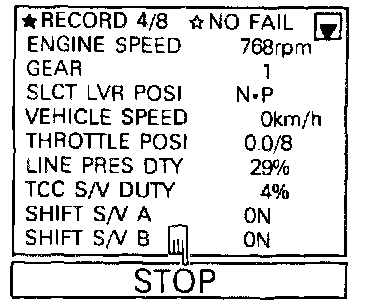

11. When performing cruise test, touch "RECORD".






12. After finishing cruise test part 1, touch "STOP".

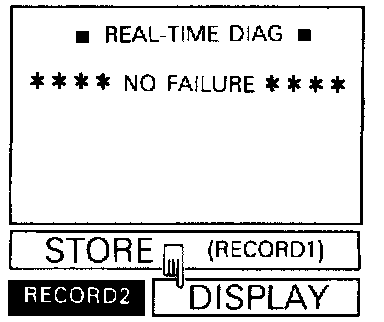

13. Touch "DISPLAY".

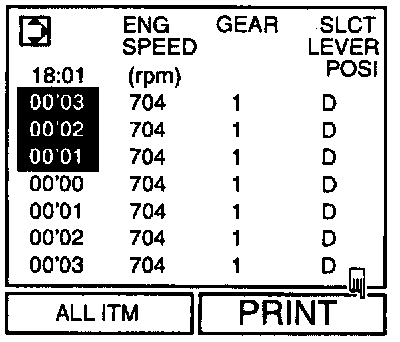

14. Touch "PRINT".






15. Touch "PRINT" again.

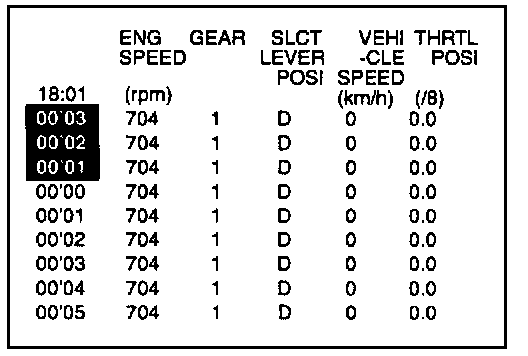

16. Check the monitor data printed out.
17. Continue cruise test part 2 and 3.
