Component Testing Procedures

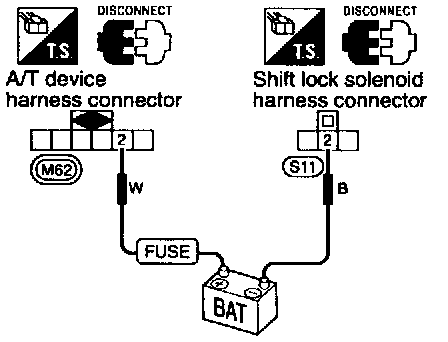

SHIFT LOCK SOLENOID
Check operation by applying battery voltage to A/T device harness terminal (2) and shift lock solenoid harness terminal (2).

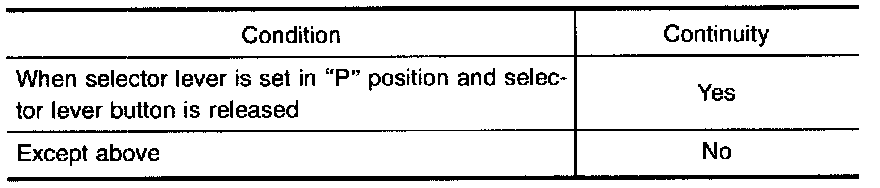

PARK POSITION SWITCH
Check continuity between A/T device harness terminal (1) and park position switch harness terminal (2).

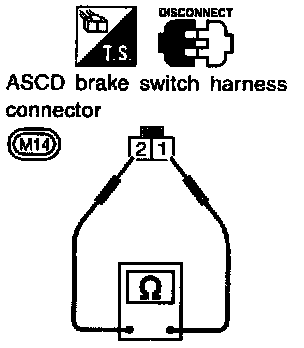

ASCD BRAKE SWITCH

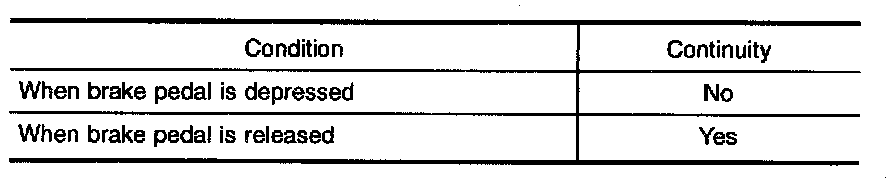

Check continuity between terminals (1) and (2).

Check ASCD brake switch after adjusting brake pedal.
