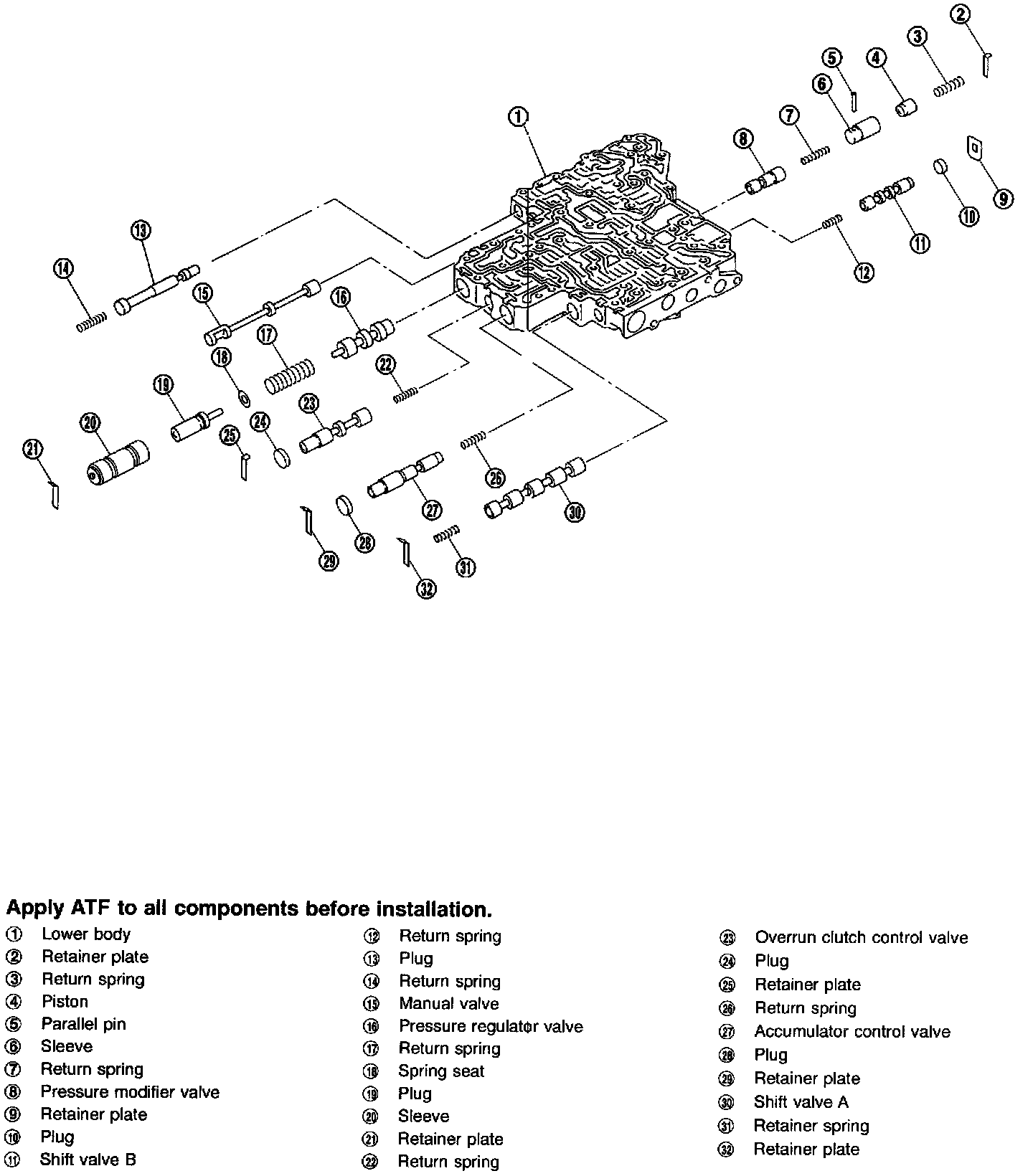

Control Valve Lower Body

DISASSEMBLY

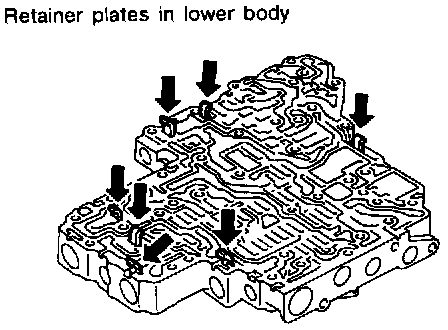

- Remove valves at retainer plate.

INSPECTION





Valve Springs

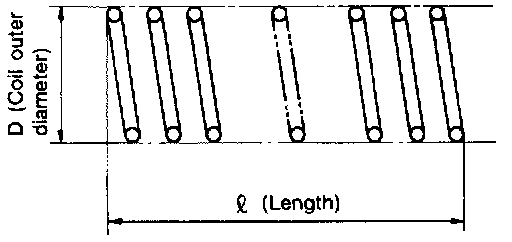

- Check each valve spring for damage or deformation. Also measure free length and outer diameter.

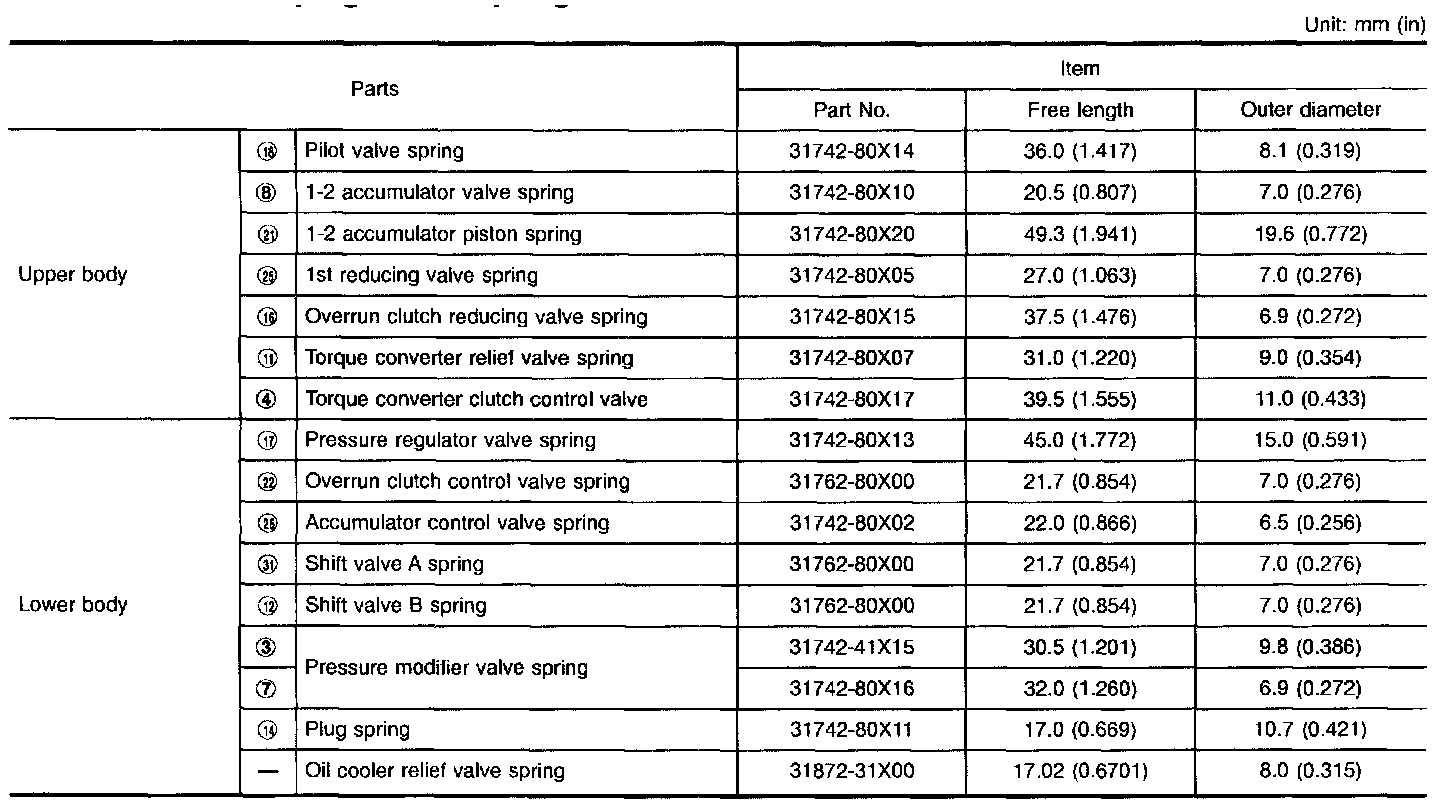

Inspection standard:

- Replace valve springs if deformed or fatigued.

Control Valves
- Check sliding surfaces of control valves, sleeves and plugs for damage.

ASSEMBLY





- Install control valves.

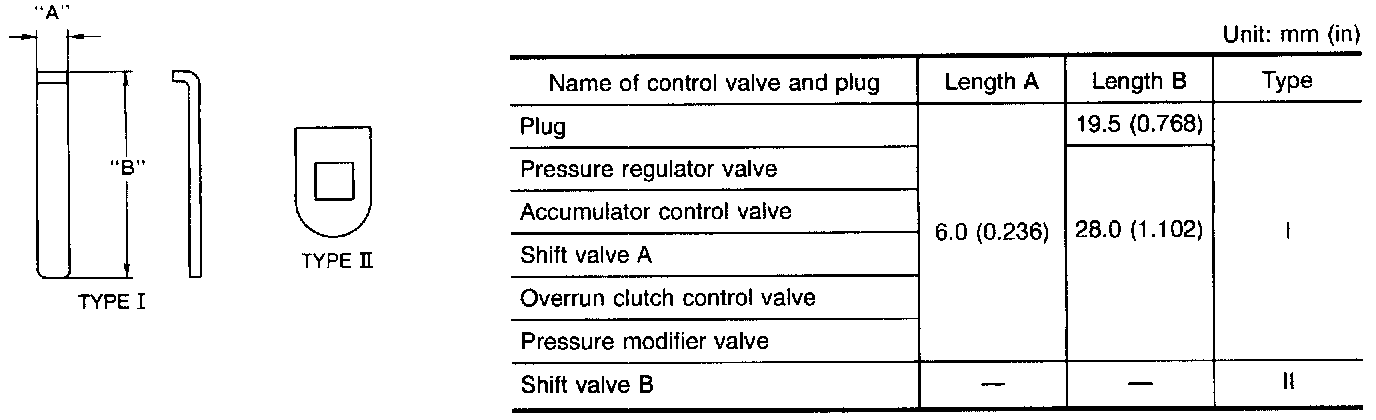

Retainer Plate





- Install proper retainer plates.
