Inspection and Adjustment

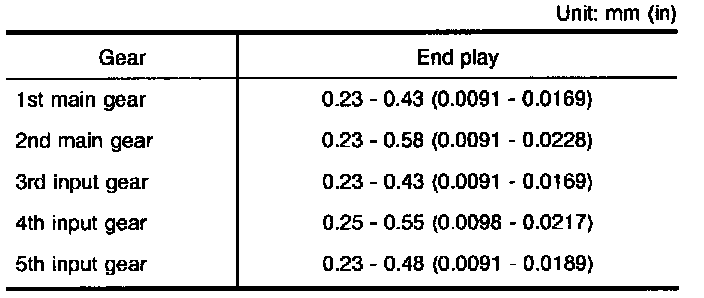

GEAR END PLAY
CLEARANCE BETWEEN BAULK RING AND GEAR

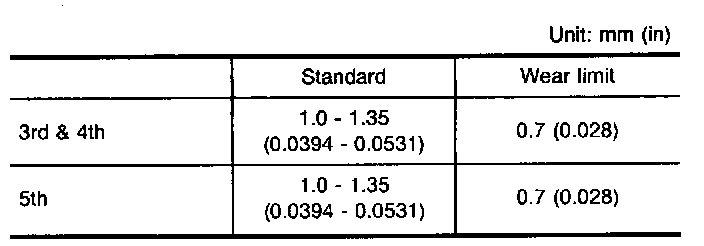

3rd, 4th & 5th

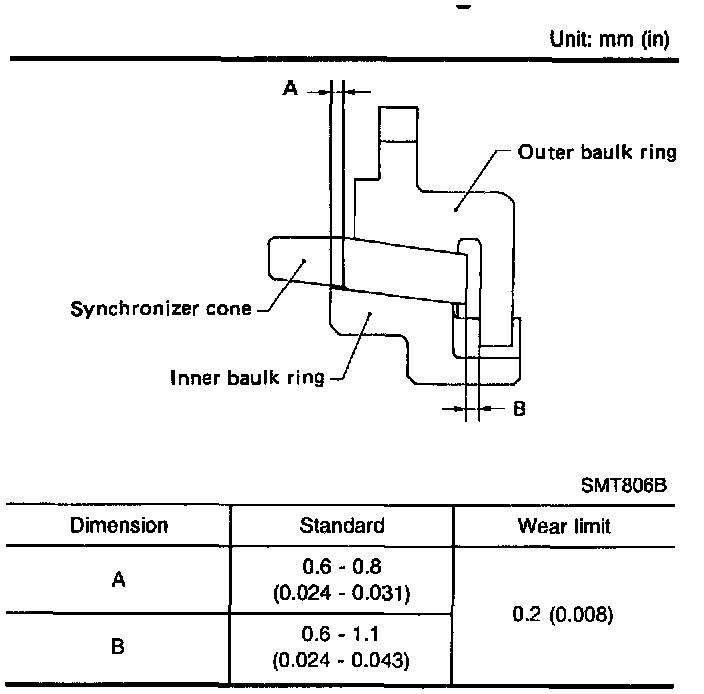

1st And 2nd Double Baulk Ring

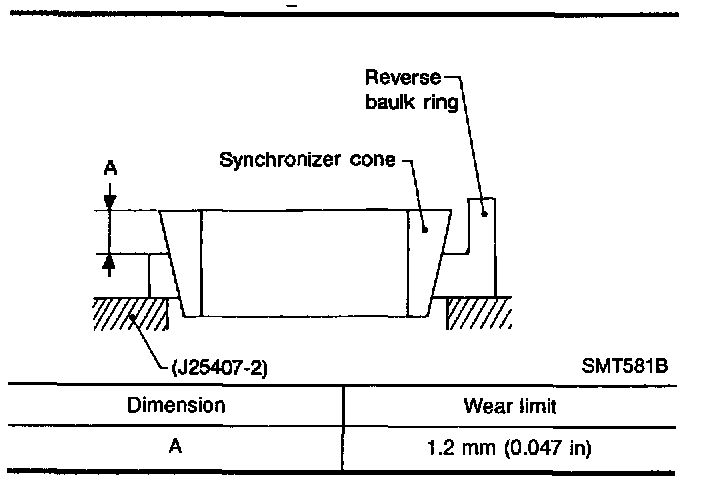

Reverse Baulk Ring

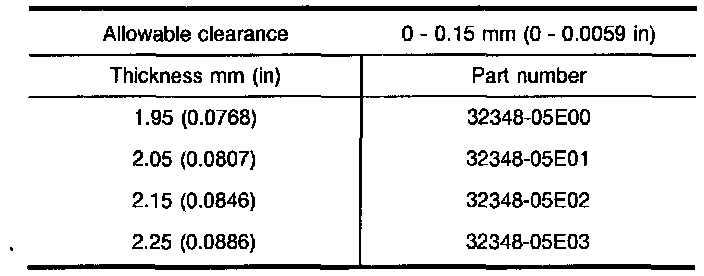

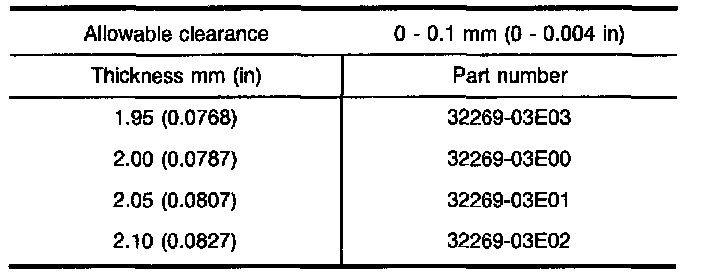

AVAILABLE SNAP RING
1st & 2nd Synchronizer Hub (At Mainshaft)
3rd & 4th Synchronizer Hub (At Input Shaft)
5th Main Gear (At Mainshaft)

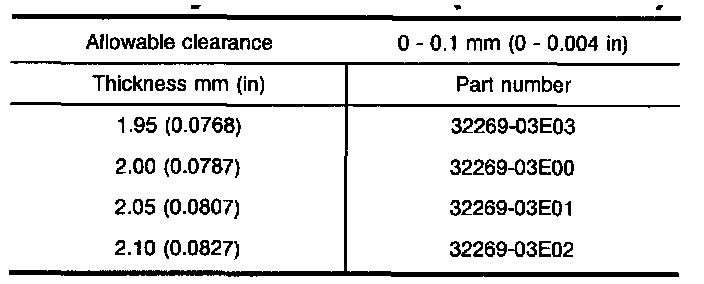

AVAILABLE THRUST WASHER
4th Input Gear (At Input Shaft)

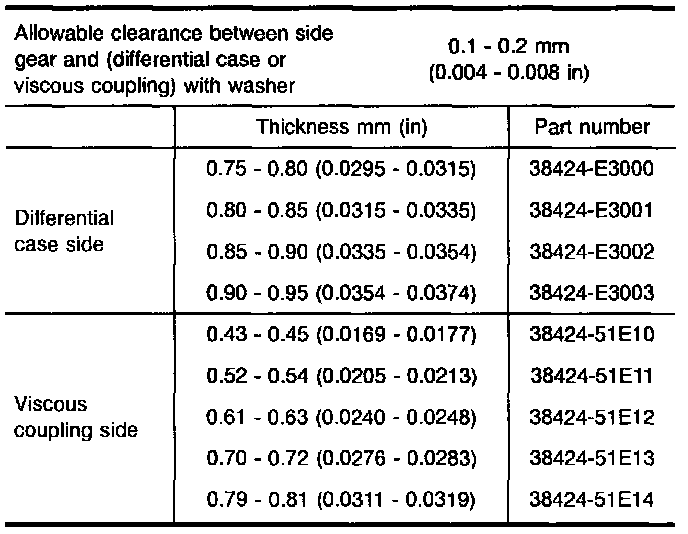

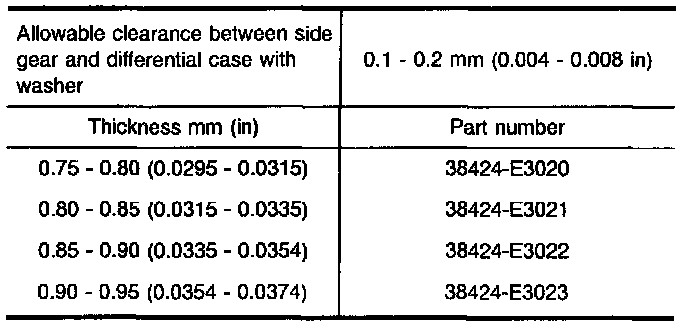

Differential Side Gear Thrust Washer - RS5F50A
Differential Side Gear Thrust Washer - RS5F50V

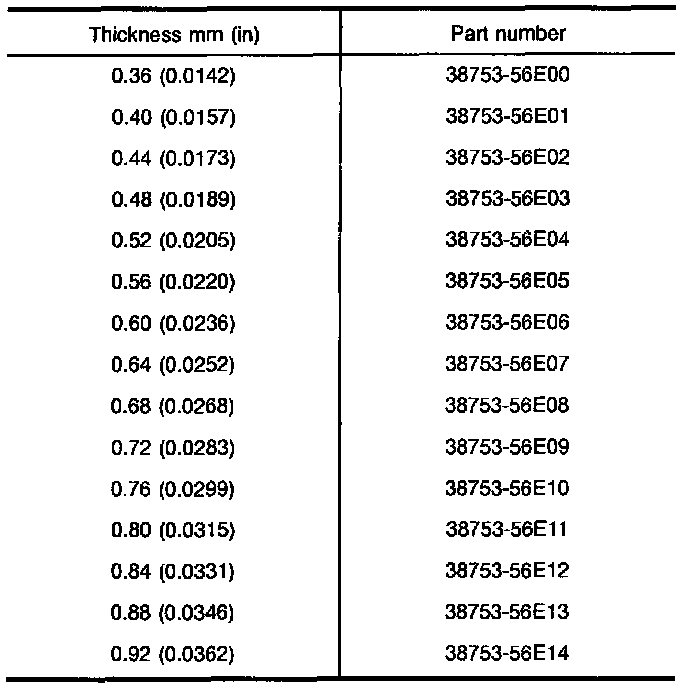

AVAILABLE SHIM - INPUT SHAFT END PLAY AND MAINSHAFT AND DIFFERENTIAL SIDE BEARING PRELOAD AND ADJUSTING SHIM

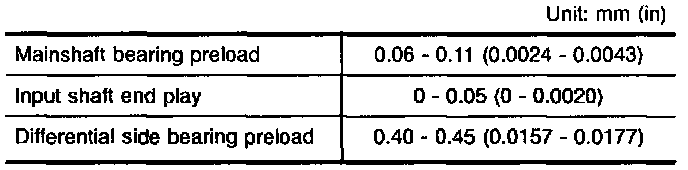

Bearing Preload And End Play

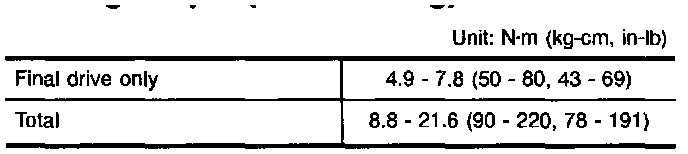

Turning Torque (New Bearing)

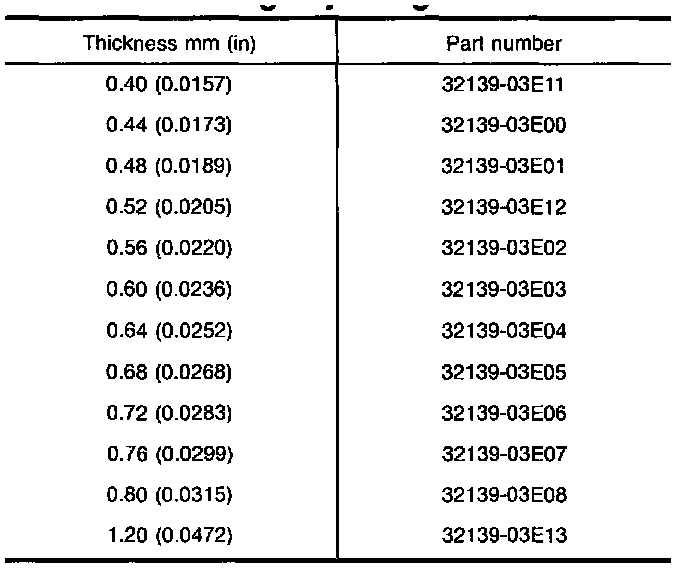

Mainshaft Bearing Adjusting Shim

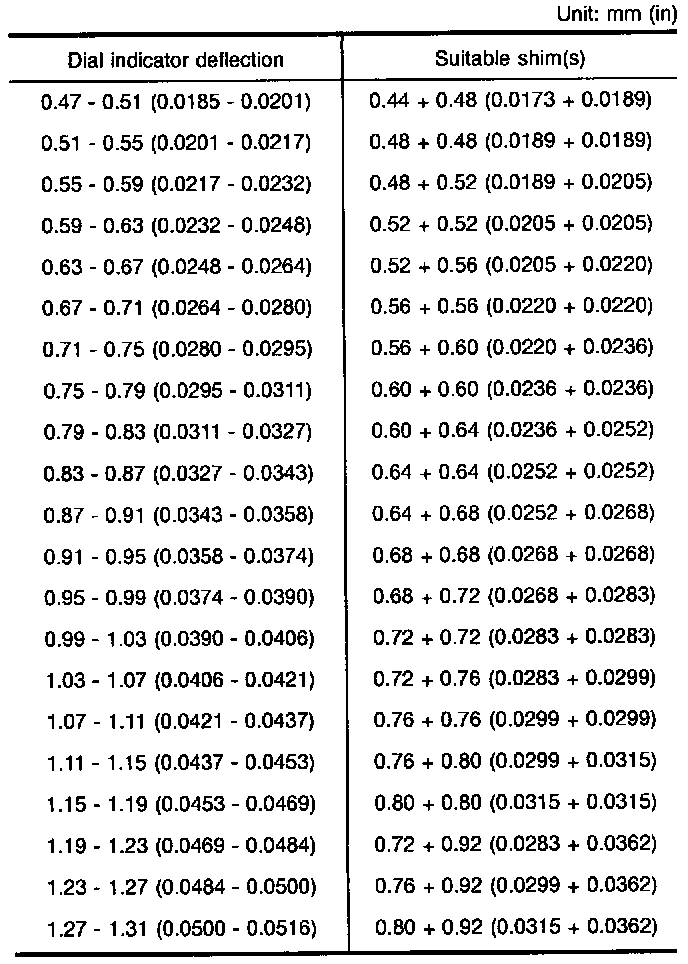

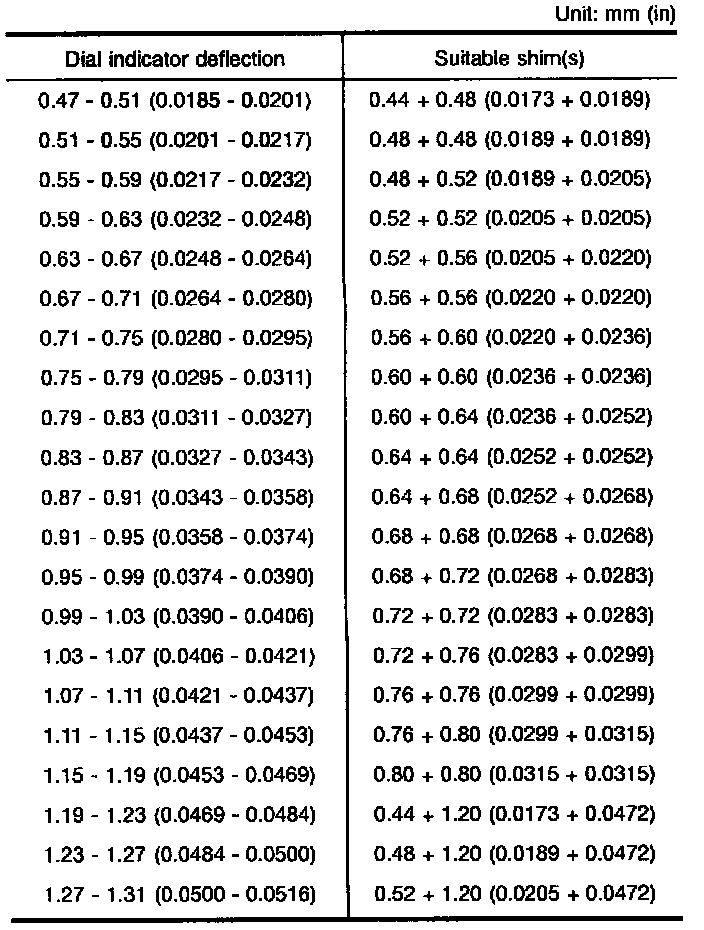

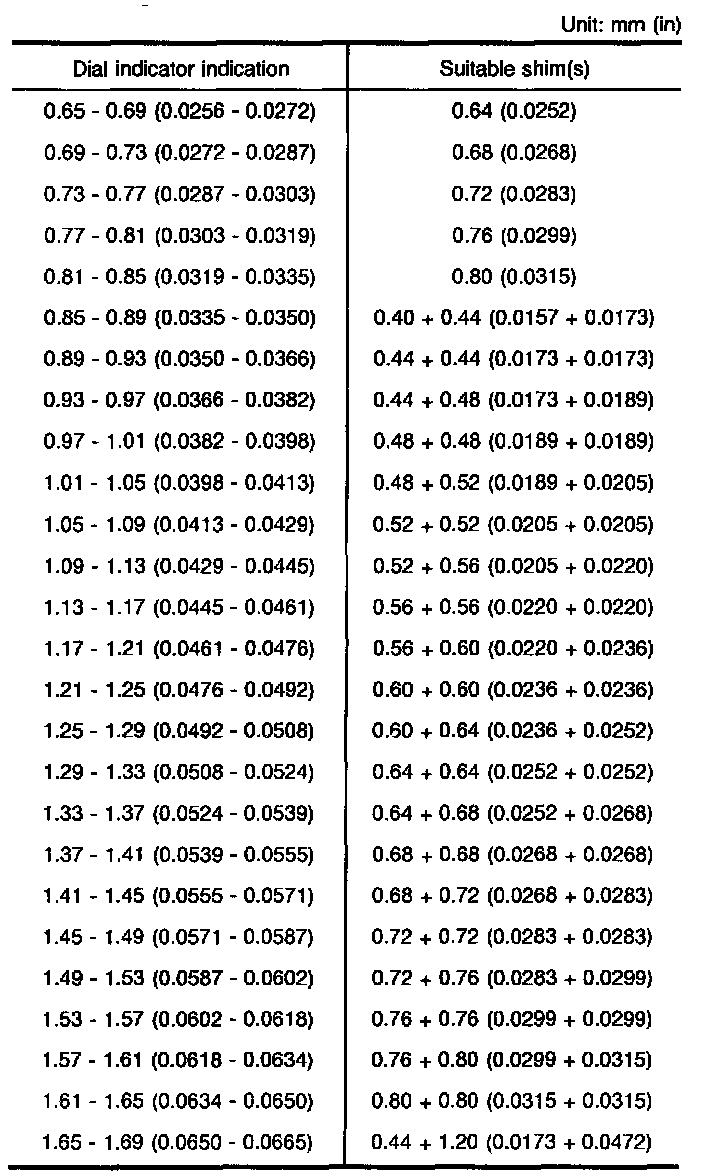

Table For Selecting Mainshaft Bearing Adjusting Shim

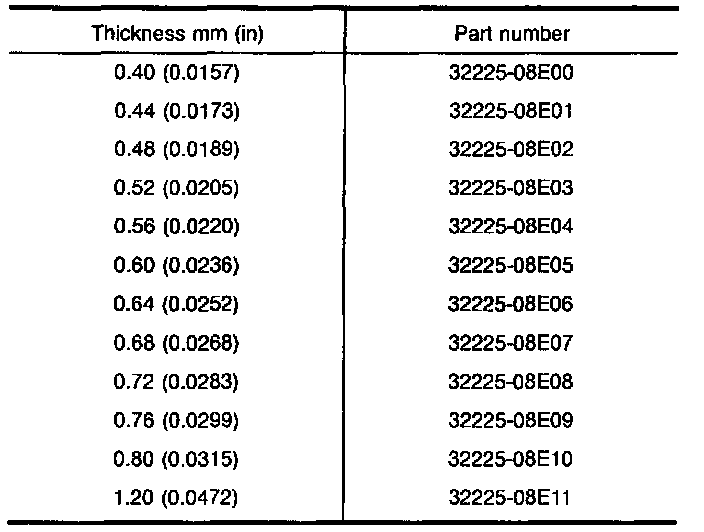

Input Shaft Bearing Adjusting Shim

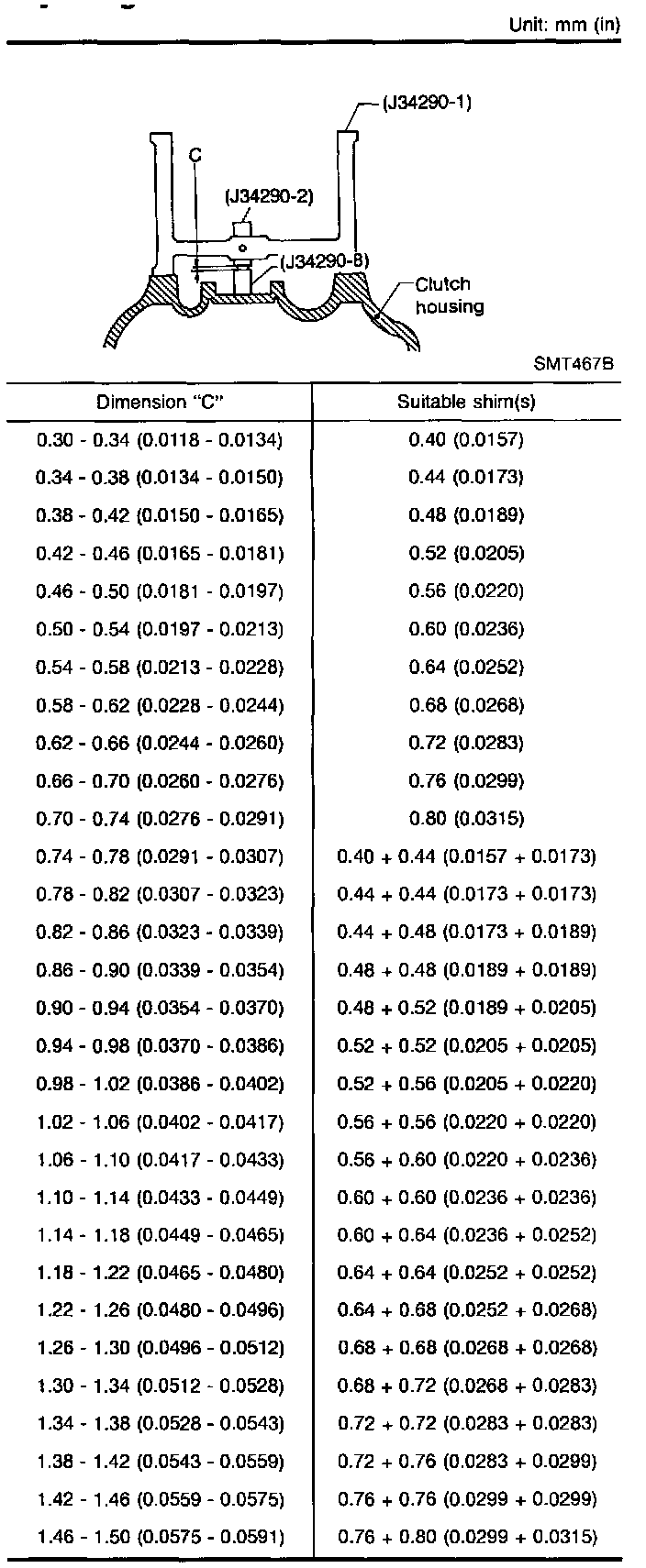

Table For Selecting Input Shaft Bearing Adjusting Shim

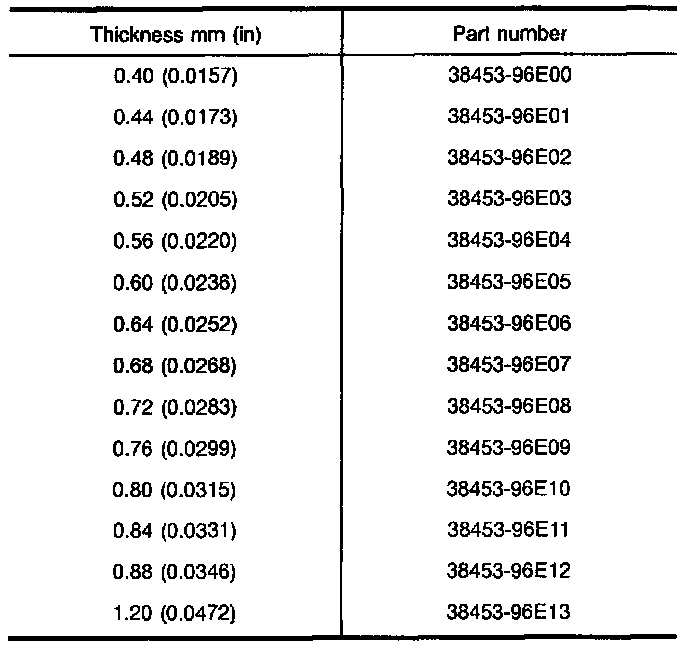

Differential Side Bearing Adjusting Shim - RS5F50A
Differential Side Bearing Adjusting Shim - RS5F50V
Table For Selecting Differential Side Bearing Adjusting Shim(s) - RS5F50A
Table For Selecting Differential Side Bearing Adjusting Shim(s) - RS5F50V
