System Specifications
>>
Inspection and Adjustment
Inspection and Adjustment

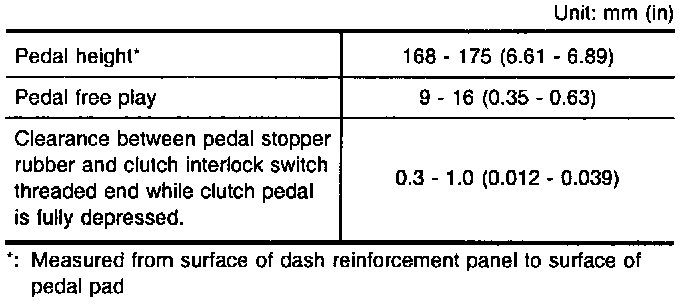

CLUTCH PEDAL

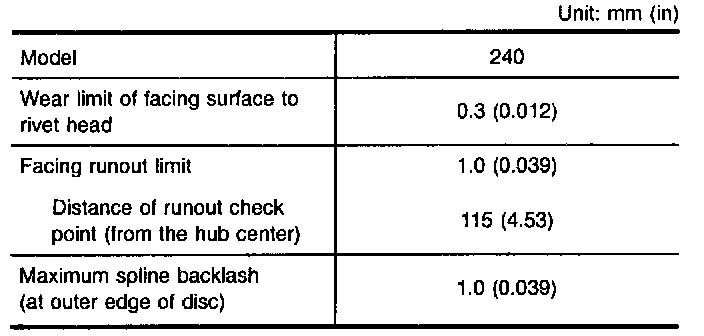

CLUTCH DISC

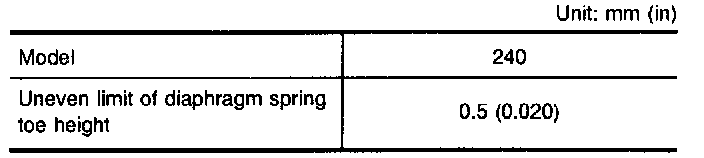

CLUTCH COVER
