Component Testing Procedures

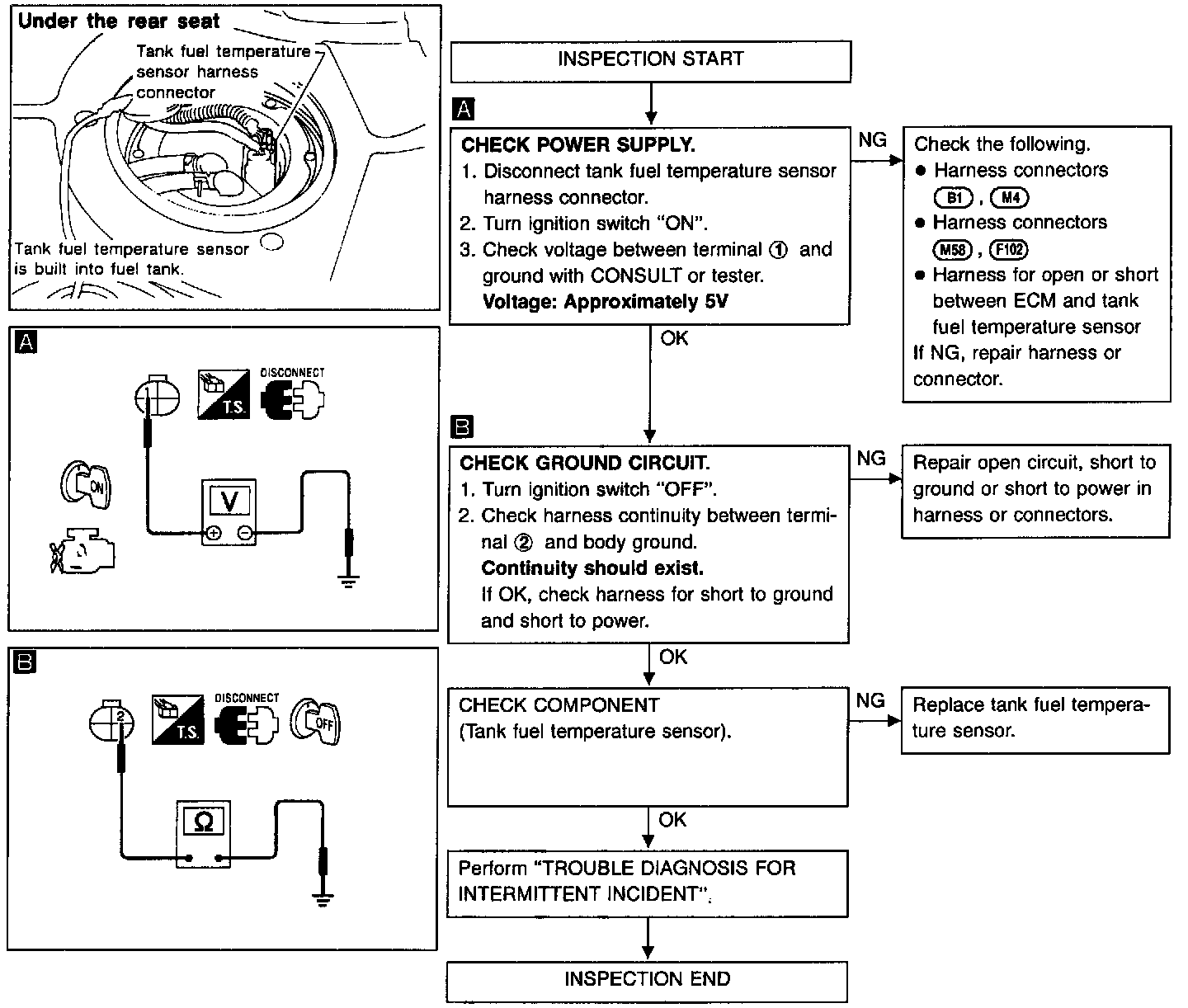

DIAGNOSTIC PROCEDURE


COMPONENT INSPECTION
Tank fuel temperature sensor

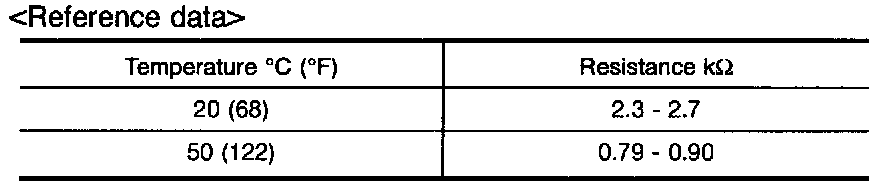

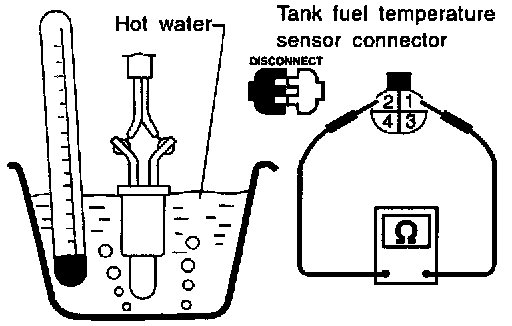

Check resistance as shown in the figure.






If NG, replace tank fuel temperature sensor.
