Oxygen Sensor: Locations

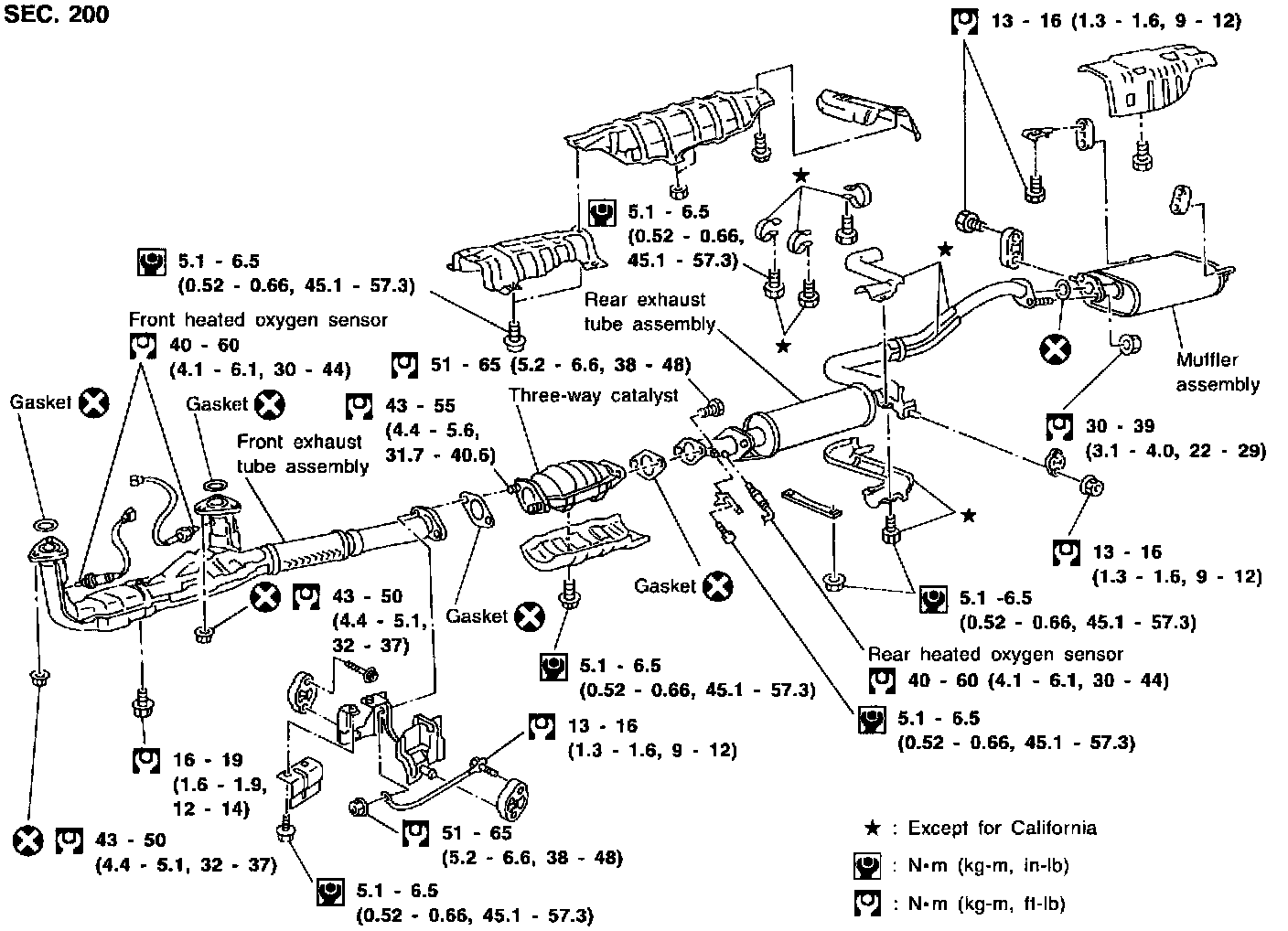

Exhaust System:










Under-vehicle View

Note:
Bank 1 - Right cylinder bank
Bank 2 - Left cylinder bank
