Home >> Nissan-Datsun >> 1998 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Instrument Panel >> Key Reminder Switch >> Testing and Inspection

Key Reminder Switch: Testing and Inspection

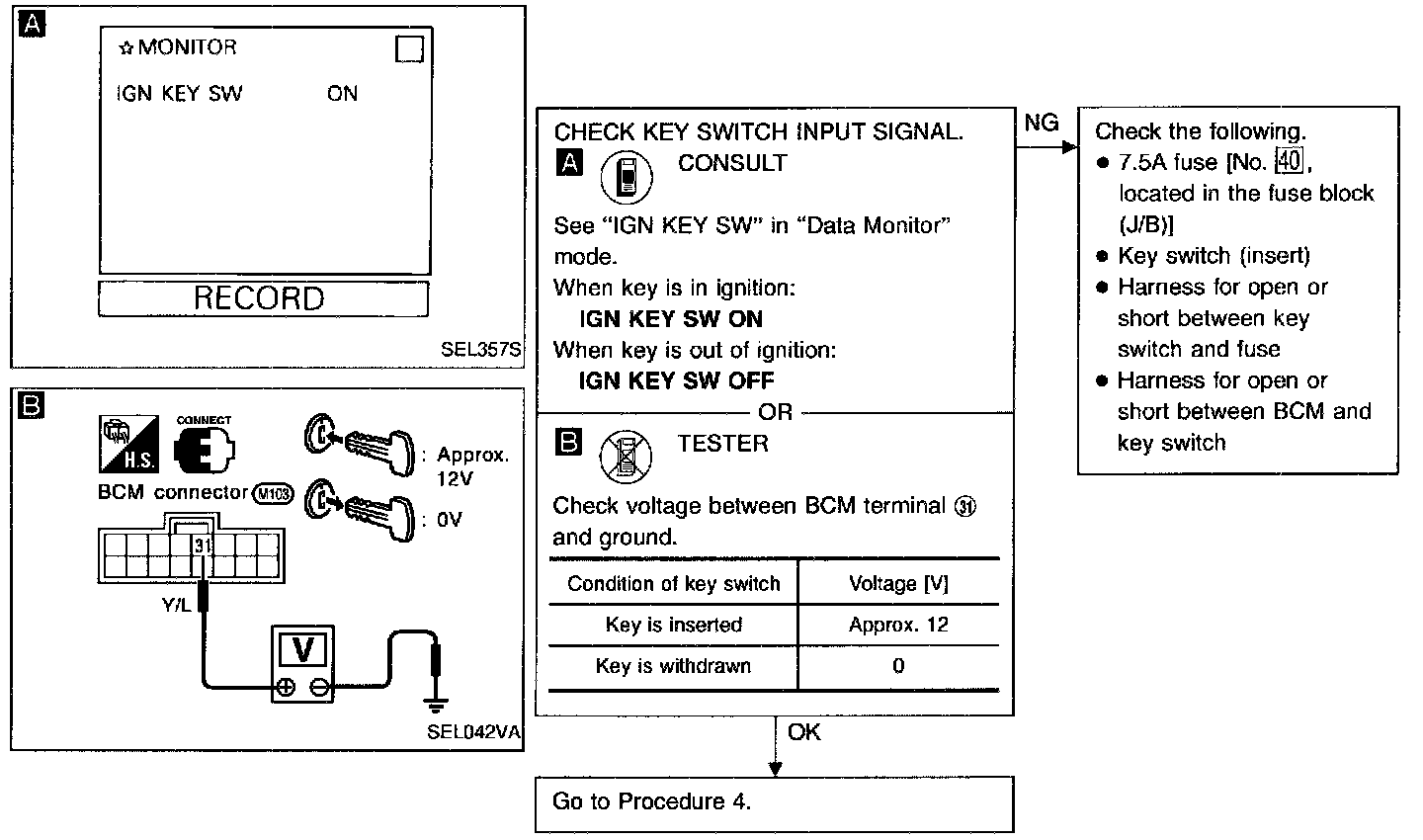

Diagnostic Procedure (Key Switch Input Signal Check)
