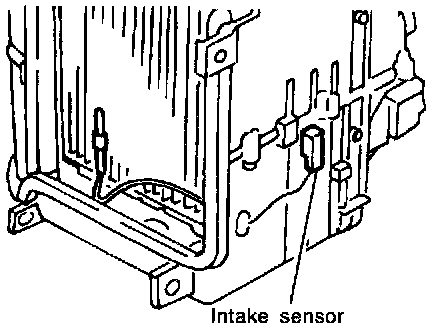

Intake Sensor

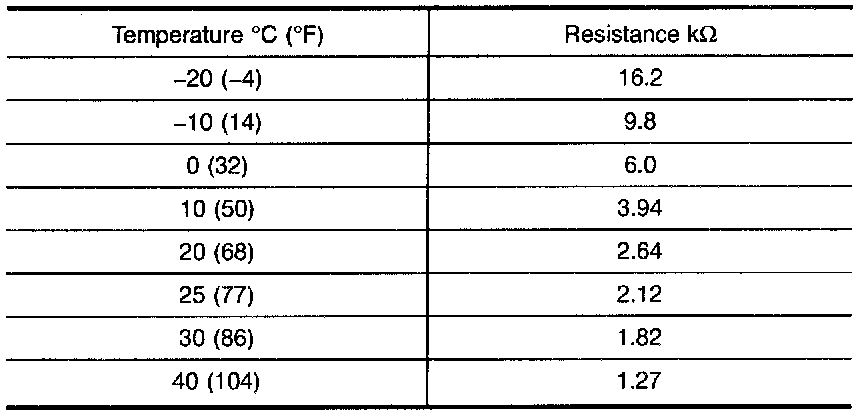

After disconnecting intake sensor harness connector, measure resistance between terminals 1 and 2 at sensor harness side, using the table.
