Removal

CAUTION:
- Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3 minutes.
- Always work from the rear of air bag module.

1. Remove seatback finisher.
- When using a clip removal tool to remove the seatback finisher, take care not to damage the air bag harness.

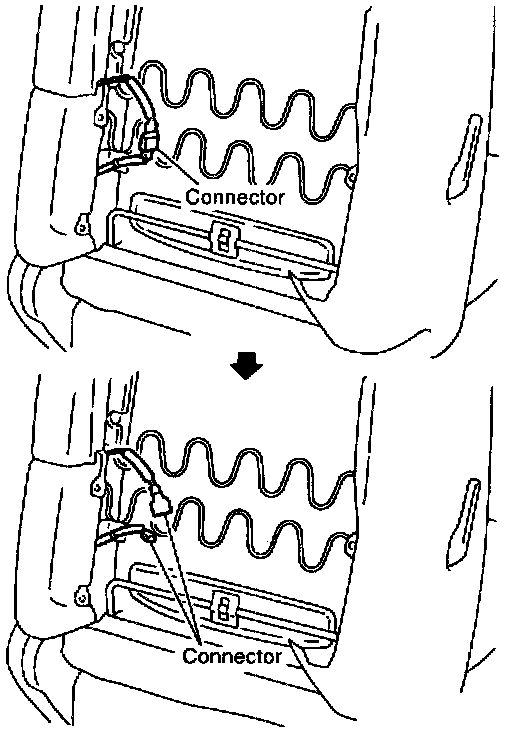

Side Air Bag Module Connectors:

2. Disconnect side air bag module connector.

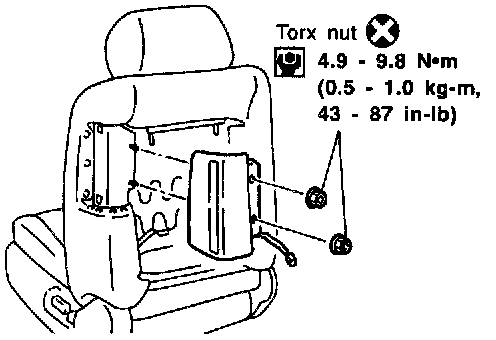

Removal Of Side Air Bag Module:

3. Remove torx nuts from air bag module. Air bag module can then be removed.

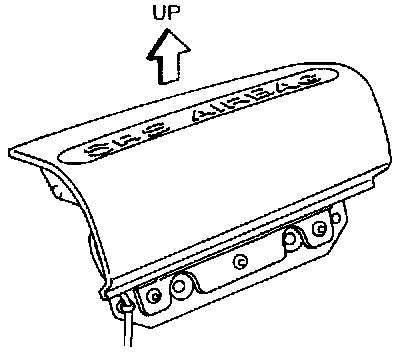

Proper Handling Of Side Air Bag Module:

Improper Handling Of Side Air Bag Module:

CAUTION:
- Always place air bag module with pad side facing upward.
- Do not attempt to disassemble air bag module.
- The torx nuts are coated with bonding agent. Do not use old nuts after removal; replace with new coated nuts.
- Do not insert any foreign objects (screwdriver, etc.) into air bag module connector.
- Replace air bag module if it has been dropped or sustained an impact.
- Do not expose the air bag module to temperatures exceeding 90°C (194°F).
- Do not allow oil, grease or water to come in contact with the air bag module.
- After air bag inflates, the front seat should be replaced if damaged.
