Installation

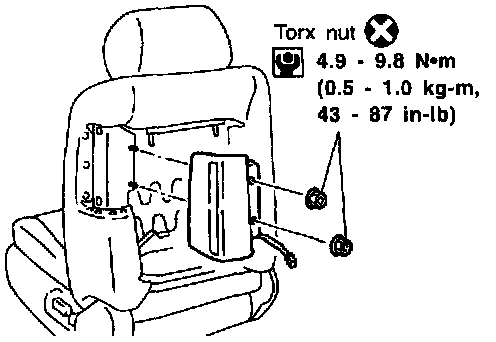

Installation Of Side Air Bag Module:

1. Install side air bag module on front seat with new torx nuts.

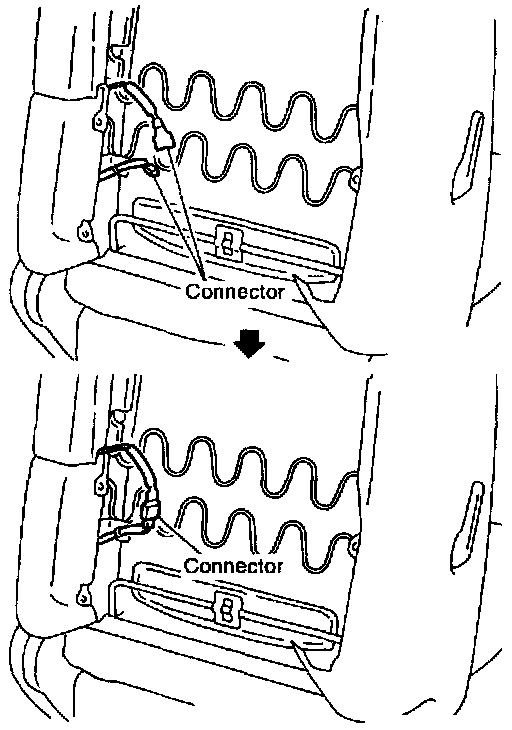

Side Air Bag Module Connectors:

2. Connect side air bag module connector.
3. Install seatback finisher with new clips.
- Ensure harness is not caught between seatback finisher and seatback.
4. Connect both battery cables.
5. Conduct Self-diagnosis to ensure SRS operates properly. (Use CONSULT or air bag warning lamp). Clearing Trouble Codes
