Removal

Front Passenger Air Bag Module Connector:

CAUTION:
- Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3 minutes.
- Always work from the side of or under air bag module.

1. Open the glove box lid.

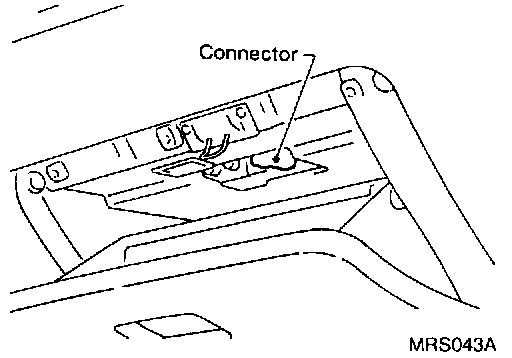

2. Disconnect air bag module connector from body harness air bag connector.
3. Remove glove box assembly.

Removal Of Front Passenger Air Bag Module:

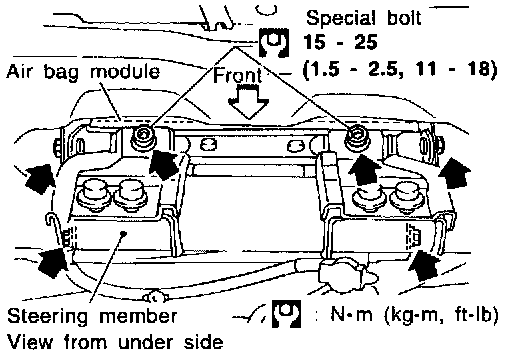

4. Remove the nuts and special bolts using the TAMPER RESISTANT TORX (Size T5O) from front passenger air bag module. Take out the air bag module from the instrument panel.
- The air bag module is heavy and should be supported using both hands during removal.

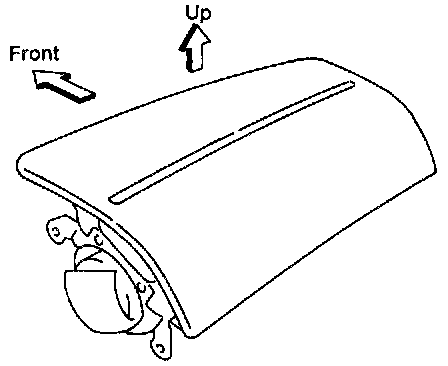

Proper Handling Of Front Passenger Air Bag Module:

Improper Handling Of Front Passenger Air Bag Module:

CAUTION:
- Always place air bag module with pad side facing upward.
- Do not attempt to disassemble air bag module.
- The special bolts are coated with bonding agent. Do not use old bolts after removal; replace with new coated bolts.
- Do not insert any foreign objects (screwdriver, etc.) into air bag module connector.
- Replace air bag module if it has been dropped or sustained an impact.
- Do not expose the air bag module to temperatures exceeding 90°C (194°F).
- Do not allow oil, grease or water to come in contact with the air bag module.
- After air bag inflates, the front instrument panel assembly should be replaced if damaged.
