Installation

Installation Of Front Passenger Air Bag Module:

- Always work from the side of or under air bag module.

1. Install front passenger air bag module on steering member
- Ensure harness is not caught between rear of air bag module and steering member.
2. Install glove box assembly. (Glove box lid is open.)

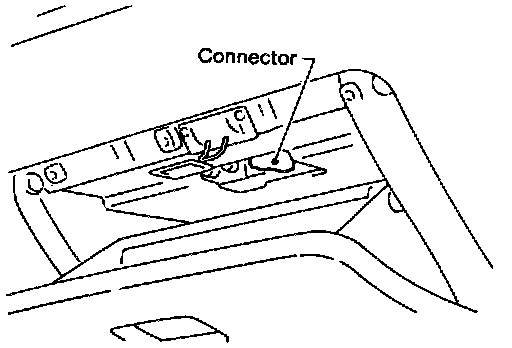

Front Passenger Air Bag Module Connector:

3. Connect air bag module connector to body harness connector.
4. Close the glove box lid.
5. Connect both battery cables.
6. Conduct self-diagnosis to ensure entire SRS operates properly. (Use CONSULT or warning lamp check). Clearing Trouble Codes
