Removal

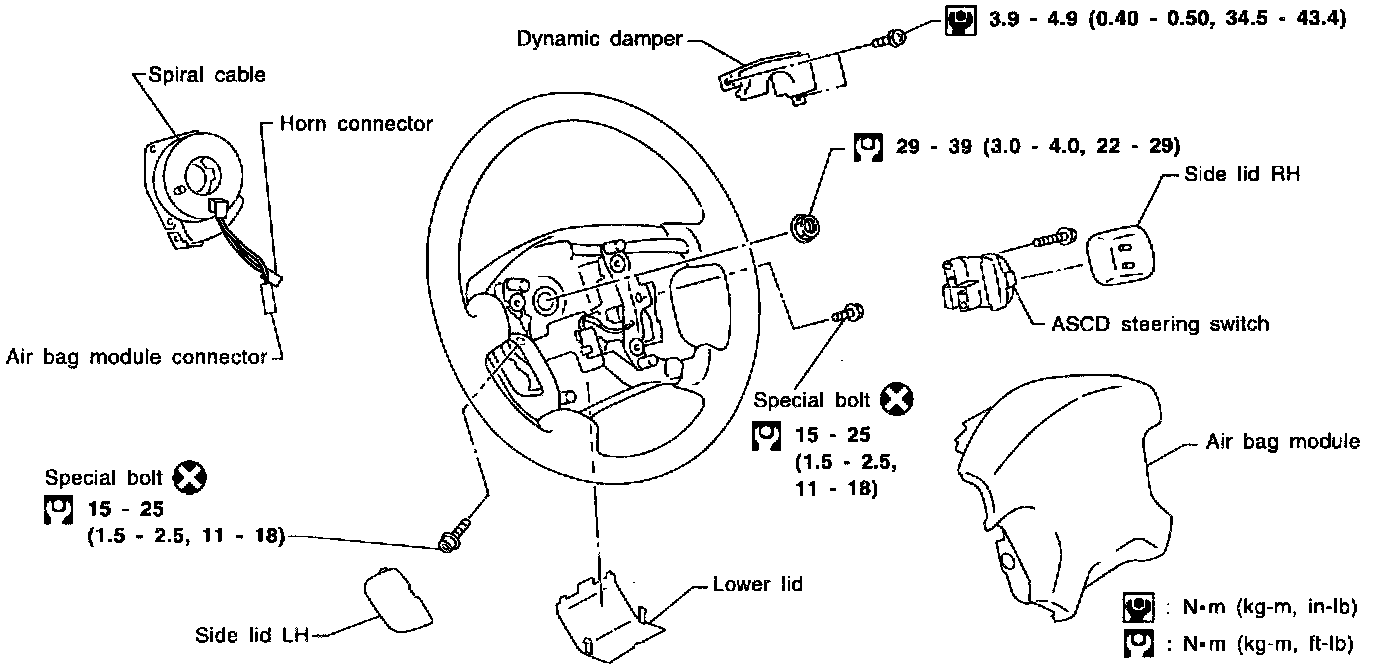

Removal Of Air Bag Module And Spiral Cable:

CAUTION:
- Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3 minutes.
- Always work from the side of air bag module.

Air Bag Module Connector:

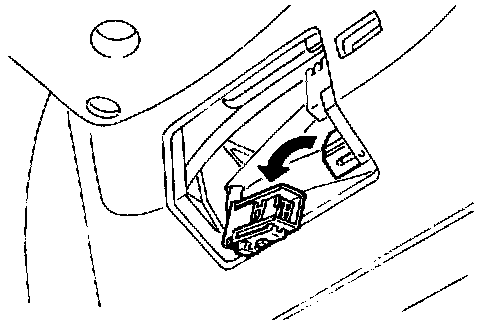

1. Remove lower lid from steering wheel, and disconnect air bag module connector.

Air Bag Module Special Bolts:

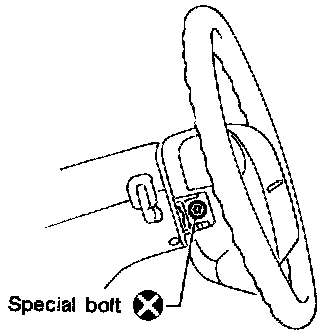

2. Remove side lid. Using the TAMPER RESISTANT TORX (Size T50), remove left and right special bolts. Air bag module can then be removed.

Proper Handling Of Air Bag Module:

CAUTION:

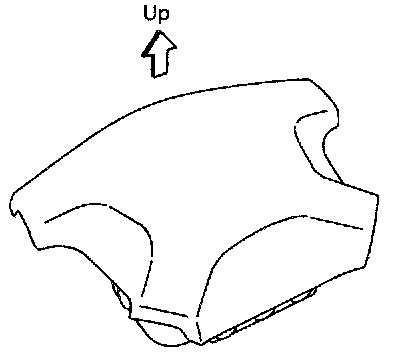

- Always place air bag module with pad side facing upward.
- Do not attempt to disassemble air bag module.
- The special bolts are coated with bonding agent. Do not use old bolts after removal; replace with new ones.
- Do not insert any foreign objects (screwdriver, etc.) into air bag module connector.

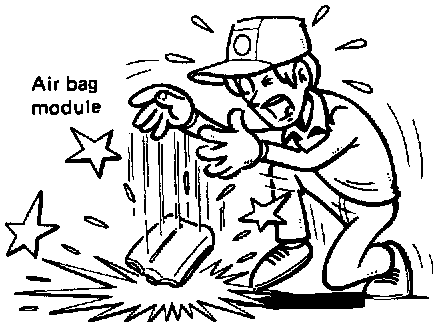

Improper Handling Of Air Bag Module:

- Replace air bag module if it has been dropped or sustained an impact.
- Do not expose the air bag module to temperatures exceeding 90°C (194°F).
- Do not allow oil, grease or water to come in contact with the air bag module.

Using Steering Whelling Puller:

3. Set steering wheel in the neutral position.
4. Disconnect horn connector and remove nuts.

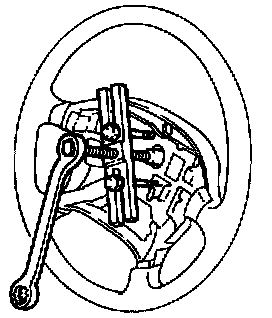

5. Remove dynamic damper. Then using steering wheel puller, remove steering wheel. Be careful not to over-tighten puller bolt on steering wheel.

CAUTION: Do not tap or bump the steering wheel.

6. Remove steering column cover.

Spiral Cable Connector:

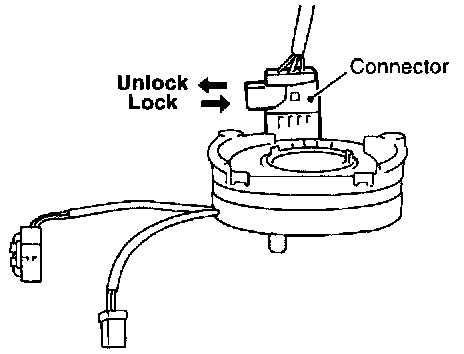

7. Unlock the spiral cable connector. Then, disconnect connector and remove the tour screws. The spiral cable can then be removed.

CAUTION:
- Do not attempt to disassemble spiral cable.
- Do not apply lubricant to the spiral cable.
