Home >> Nissan-Datsun >> 1998 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Strategies >> Diagnostic Worksheet

Diagnostic Worksheet

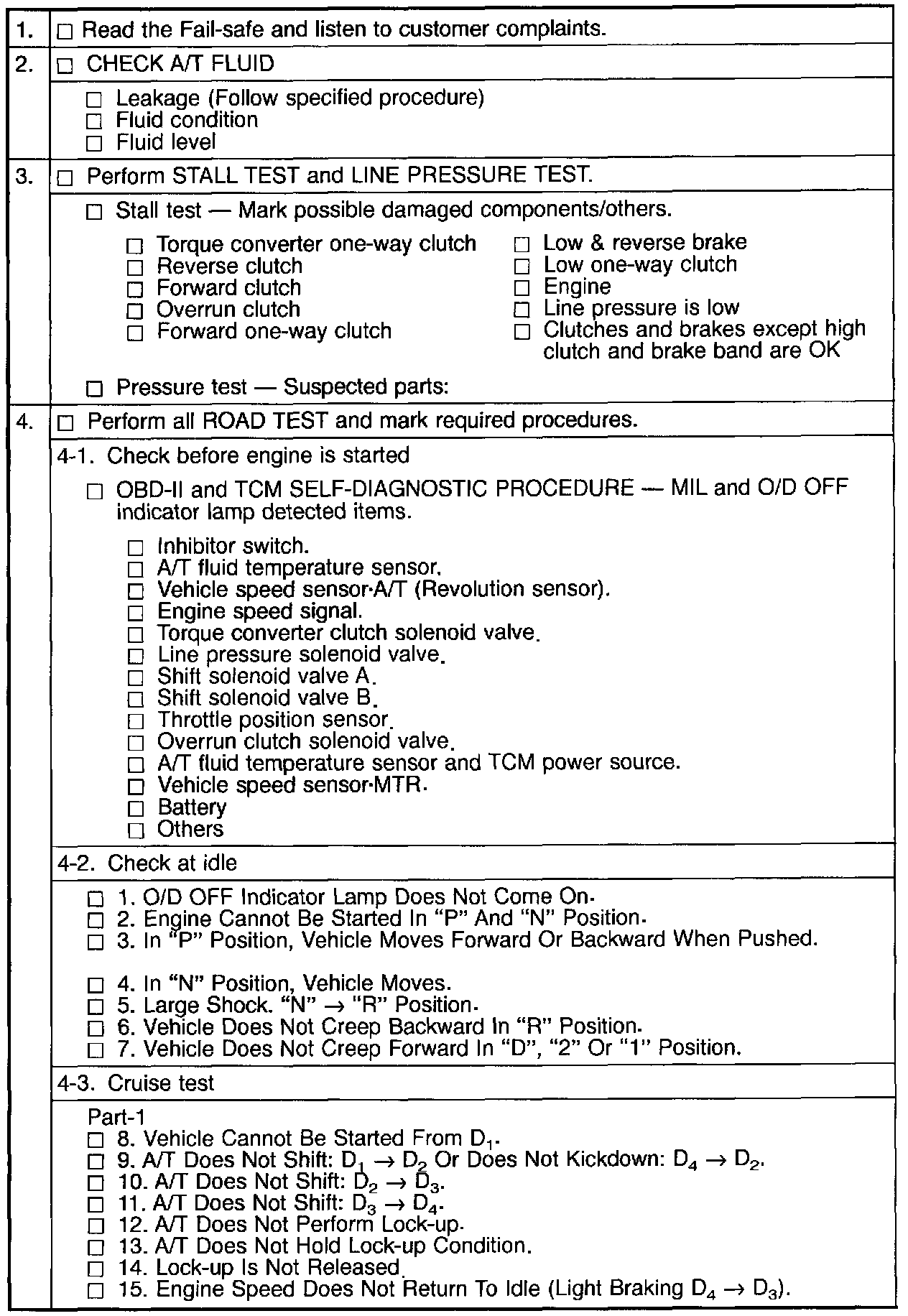

Diagnostic Worksheets / Diagnosis (1 Of 2):

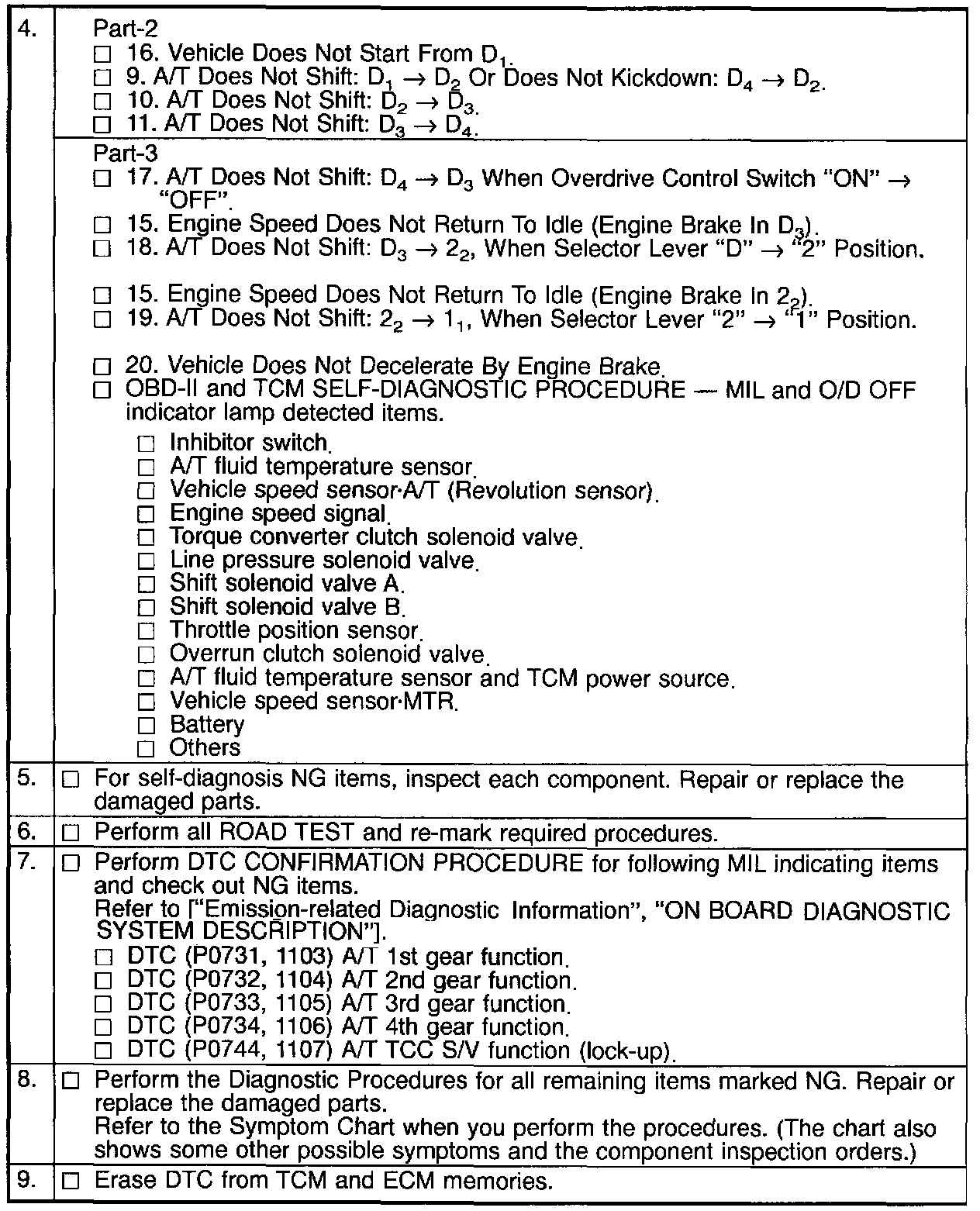

Diagnostic Worksheets / Diagnosis (2 Of 2):
