Diagnostic Procedure 18
Diagnostic Procedure 18

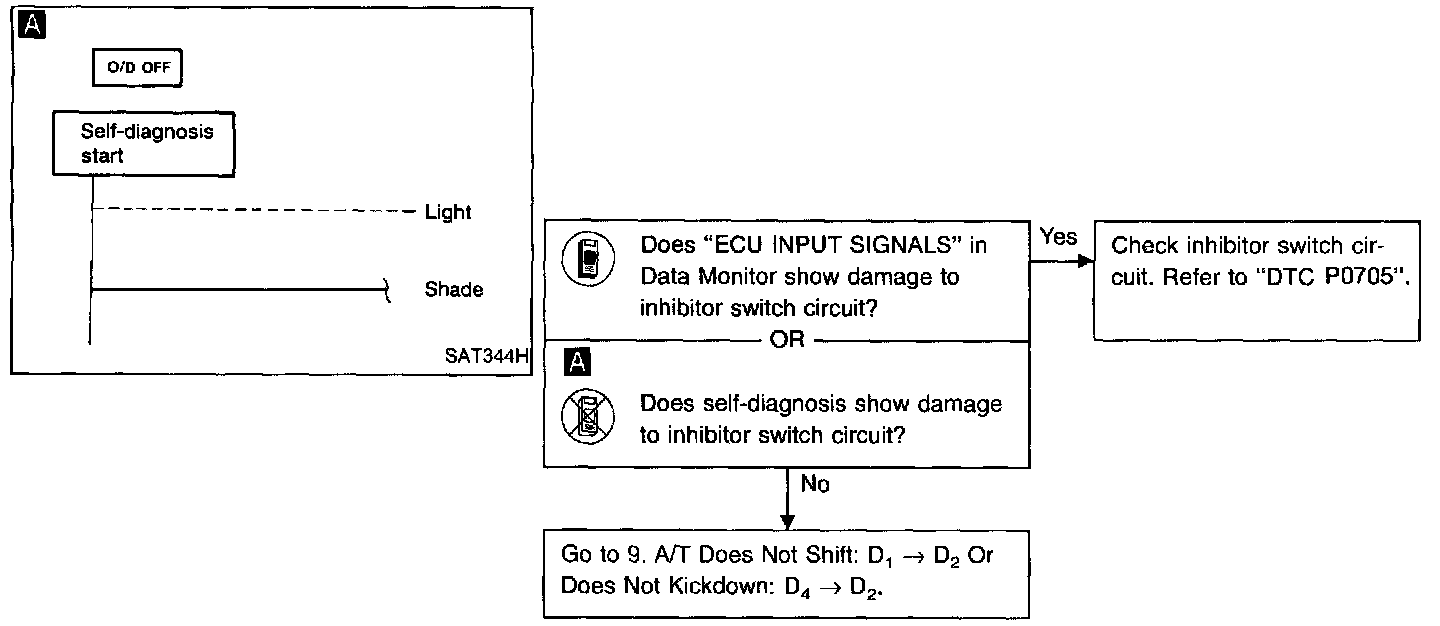

#18:
SYMPTOM:
A/T does not shift from D3 to 22 when changing selector lever from "D" to "2" position.
