VHCL SPEED SEN-MTR

DESCRIPTION
The vehicle speed sensor-MTR is built into the speedometer assembly. The sensor functions as an auxiliary device to the revolution sensor when it is malfunctioning. The TCM will then use a signal sent from the vehicle speed sensor-MTR.






TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.






ON BOARD DIAGNOSIS LOGIC



DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

CAUTION:
- Always drive vehicle at a safe speed.
- If conducting this "DTC CONFIRMATION PROCEDURE" again, always turn ignition switch "OFF" and wait at least 5 seconds before continuing.

After the repair, perform the following procedure to confirm the malfunction is eliminated.









With CONSULT

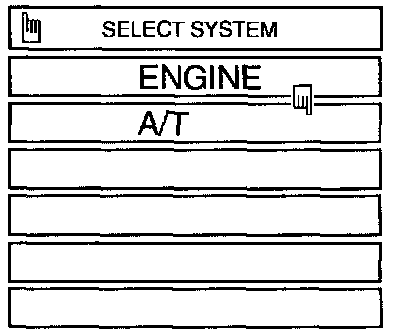

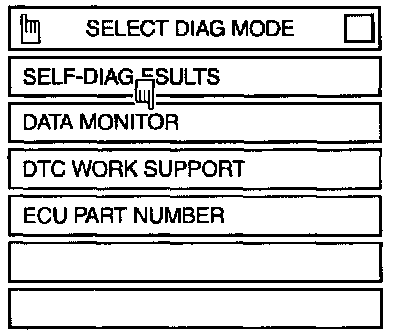

(1) Turn ignition switch "ON" and select "DATA MONITOR" mode for "A/T" with CONSULT.
(2) Start engine and accelerate vehicle from 0 to 25 km/h (0 to 6 MPH).







DIAGNOSTIC PROCEDURE
