INHIBITOR SW/CIRC

DESCRIPTION
Detects the selector lever position and sends a signal to the TCM.

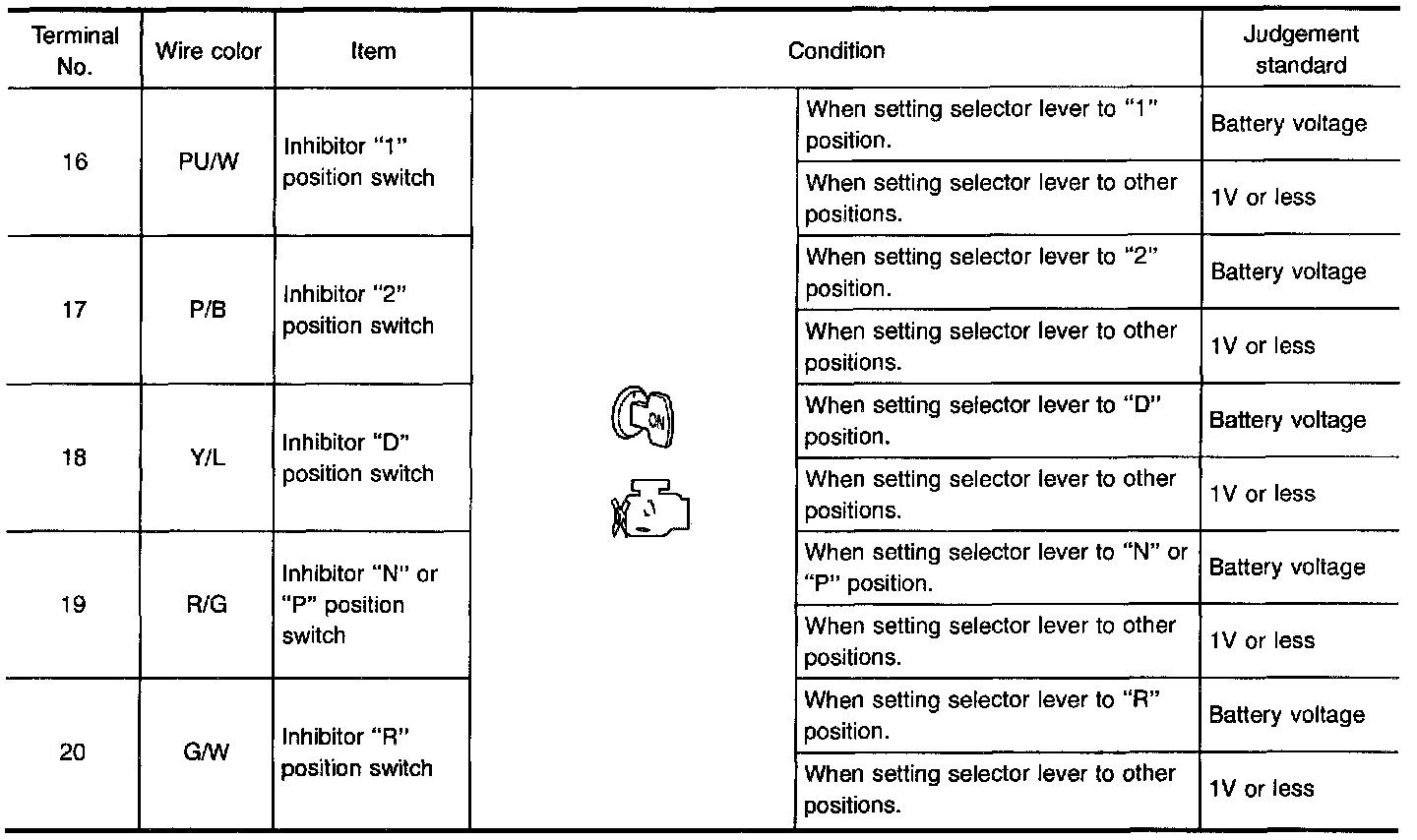

TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.

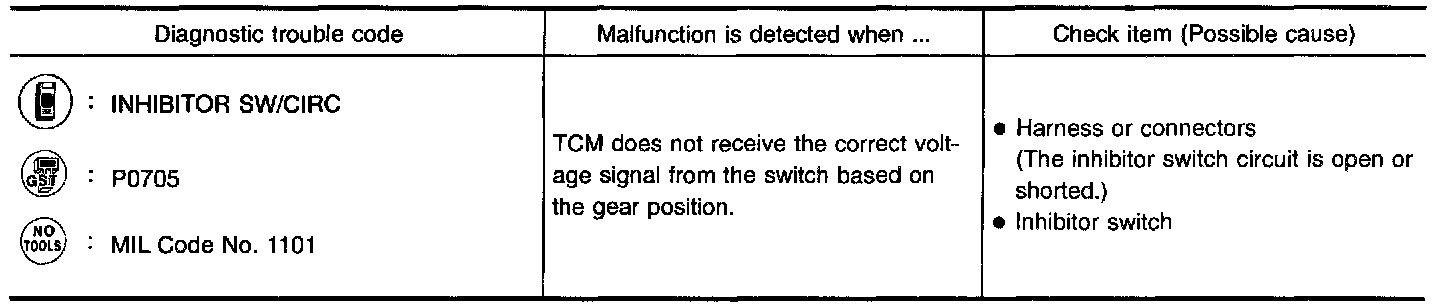

ON BOARD DIAGNOSIS LOGIC


DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.









With CONSULT
(1) Turn ignition switch "ON".

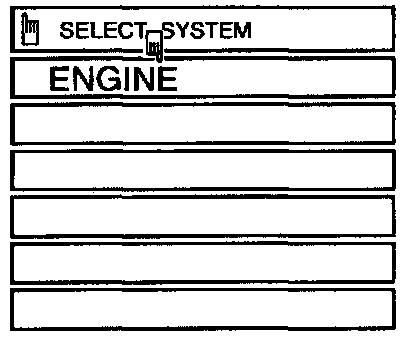

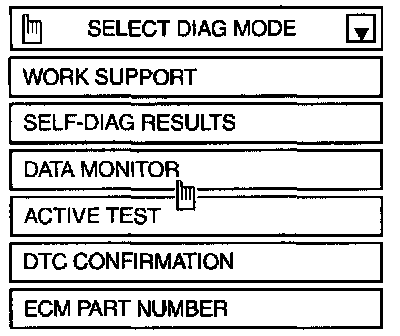

(2) Select "DATA MONITOR" mode for "ENGINE" with CONSULT.
(3) Start engine and maintain the following conditions for at least 5 consecutive seconds.

VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.3V
Selector lever: D position (OD "ON" or "OFF")

Inhibitor Switch:

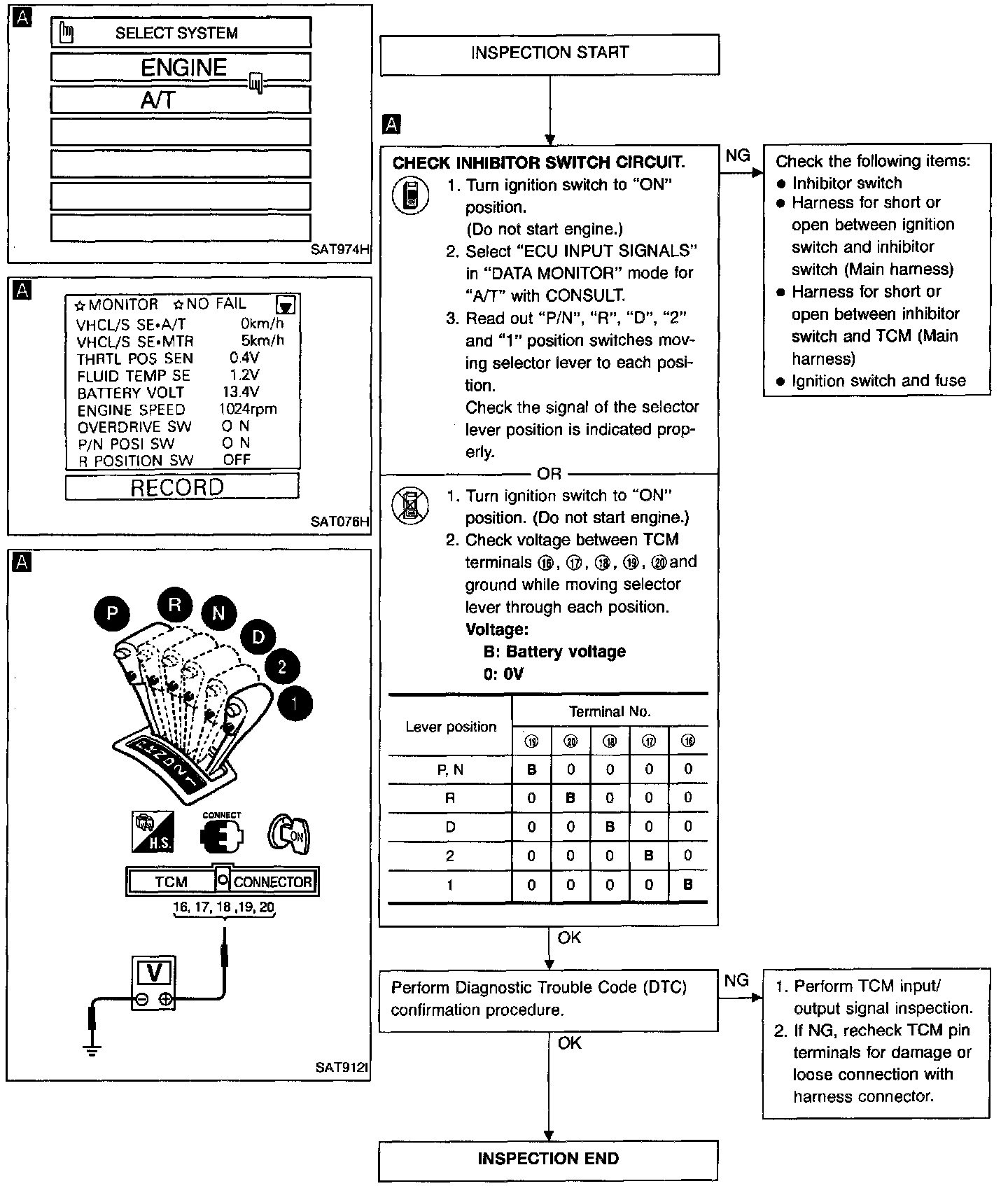

DIAGNOSTIC PROCEDURE


COMPONENT INSPECTION
Inhibitor Switch

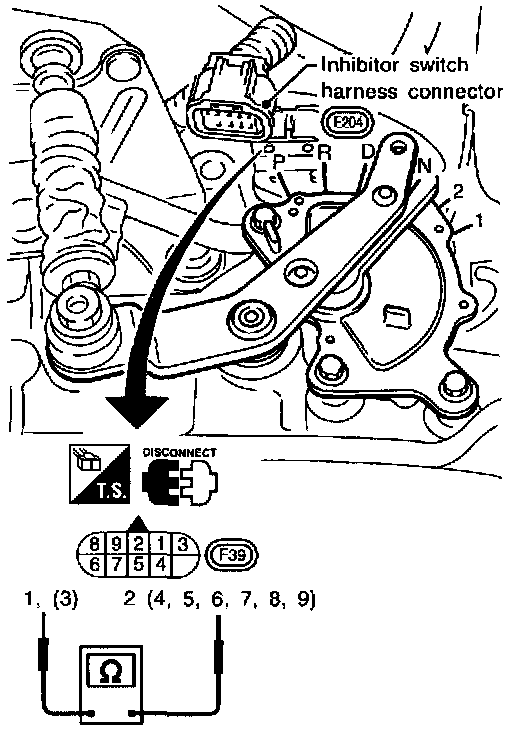

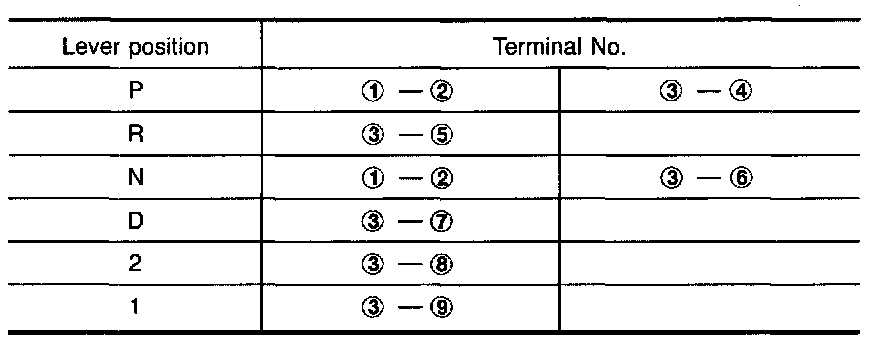

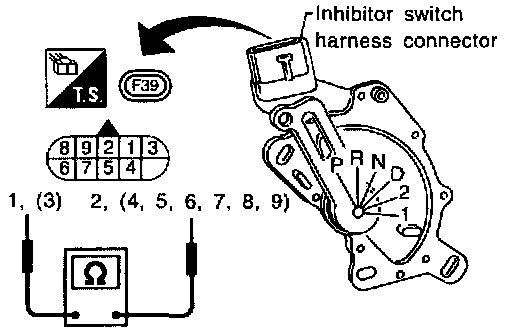

1. Check continuity between terminals (1) and (2) and between terminals (3) and (4), (5), (6), (7), (8), (9) while moving manual shaft through each position.






2. If NG, check again with manual control cable disconnected from manual shaft of Air assembly. Refer to step 1.
3. If OK on step 2, adjust manual control cable.

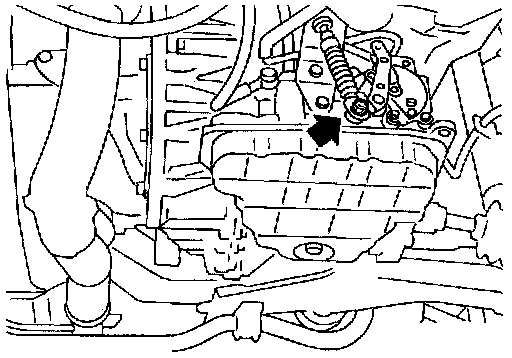

4. If NG on step 2, remove inhibitor switch from Air and check continuity of inhibitor switch terminals. Refer to step 1.
5. If OK on step 4, adjust inhibitor switch.
6. If NG on step 4, replace inhibitor switch.
