Accelerator Pedal: Adjustments

Accelerator Wire Adjustment







CAUTION:
- Make sure the ASCD wire is not pulling the throttle drum.
- Refer to "AUTOMATIC SPEED CONTROL DEVICE" (See Cruise Control) for ASCD wire adjustment.

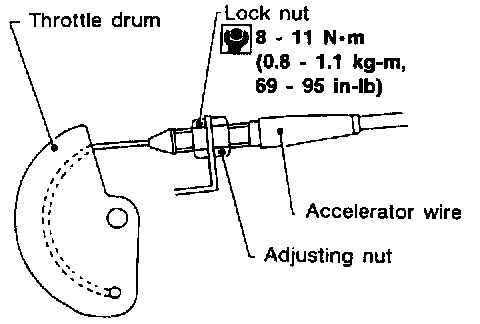

1. Loosen lock nut, and tighten adjusting nut until throttle drum starts to move.
2. From that position turn back adjusting nut 1.5 to 2 turns, and fasten it with lock nut.
