Front Heated Oxygen Sensor Heater

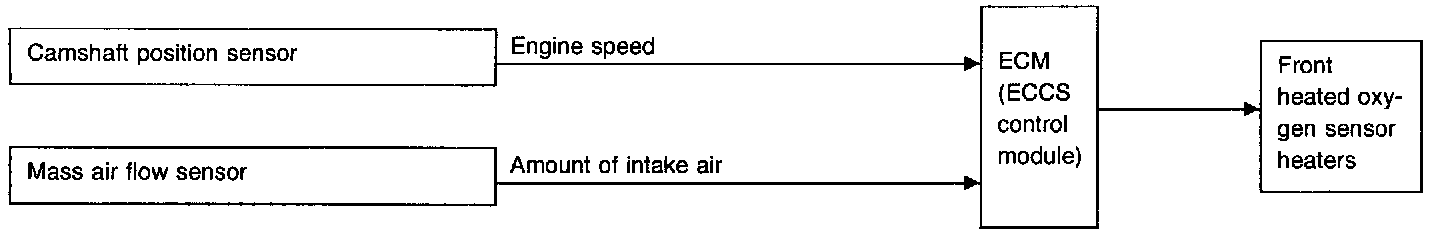

SYSTEM DESCRIPTION
The ECM performs ON/OFF control of the front heated oxygen sensor heaters corresponding to the engine speed.

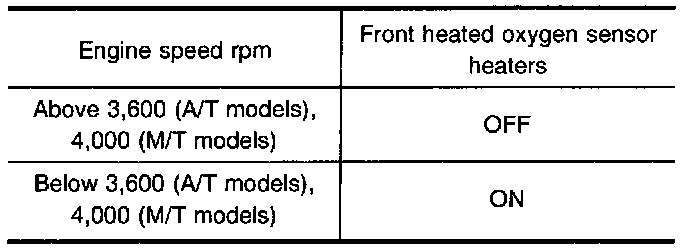

OPERATION
