Home >> Nissan-Datsun >> 1998 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Lighting and Horns >> Daytime Running Lamp >> Testing and Inspection

Daytime Running Lamp: Testing and Inspection

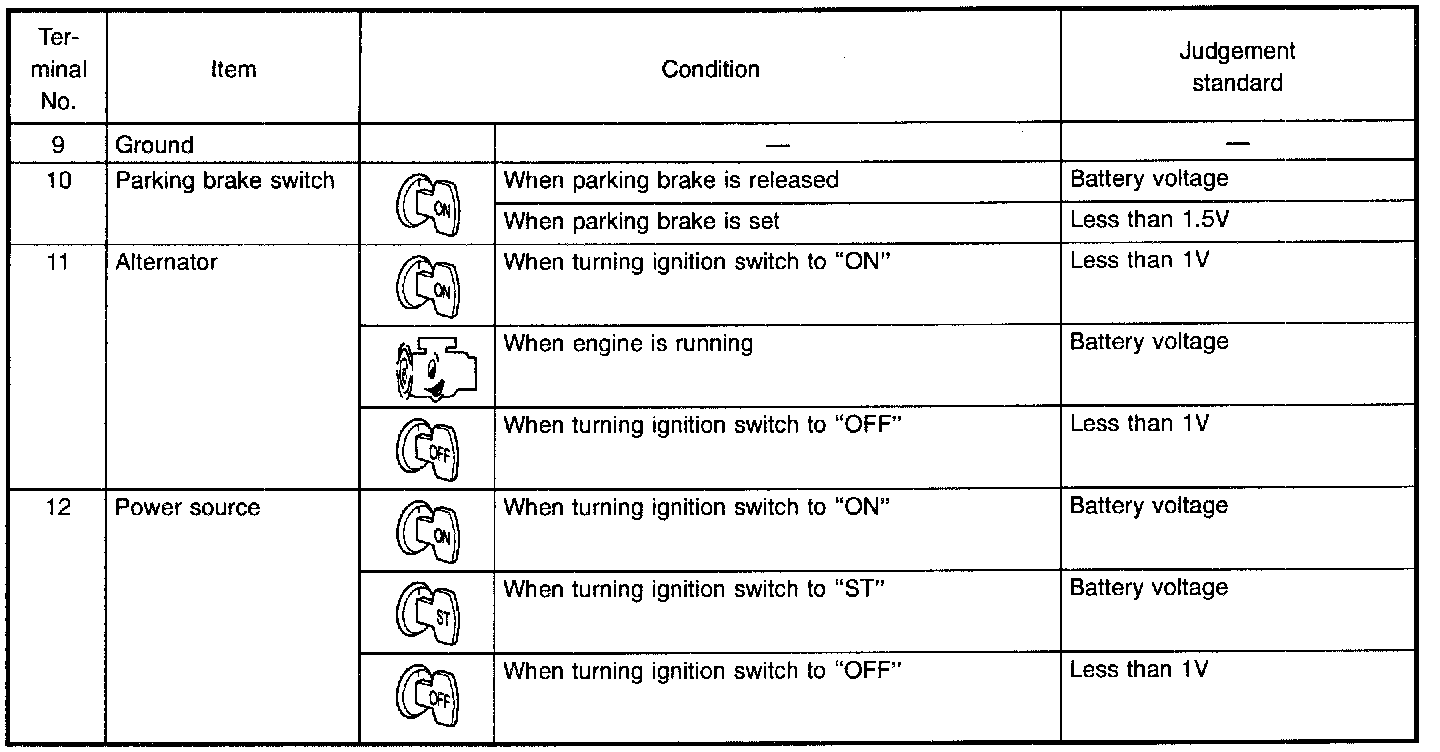

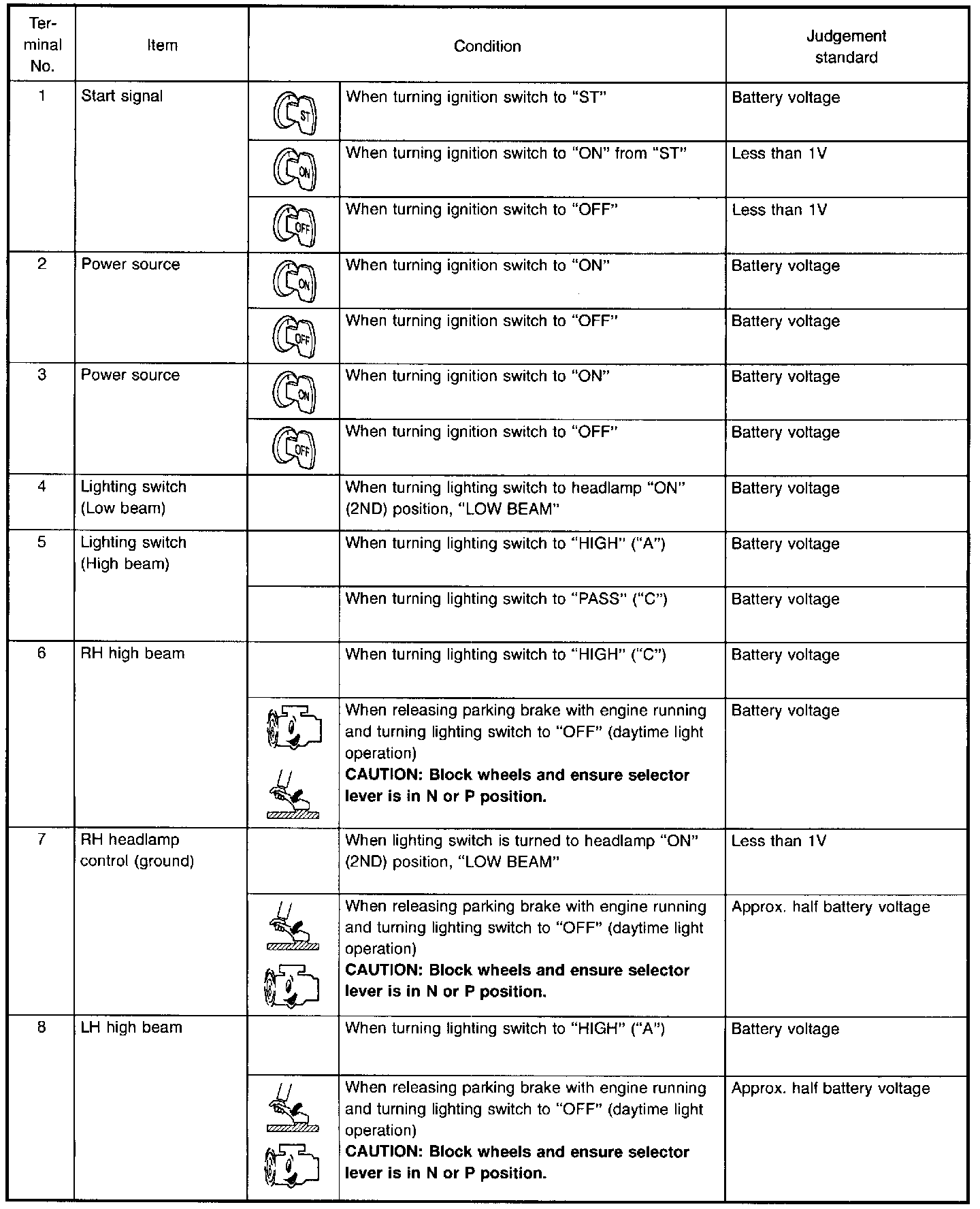

Daytime Light Control Unit Inspection Table (For Canada)








Data are reference values
