Diagnostic Procedure 2
Diagnostic Procedure 2

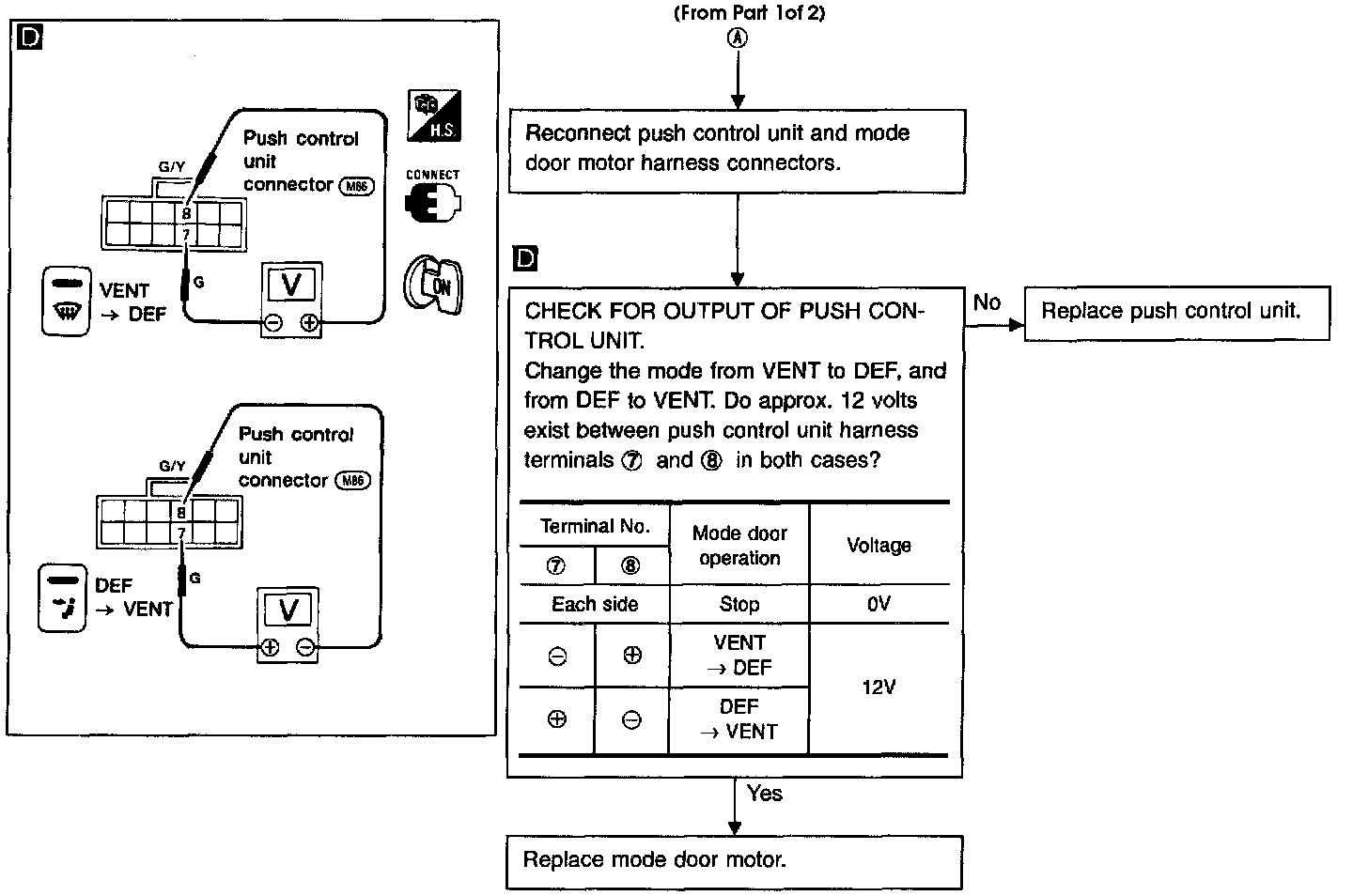

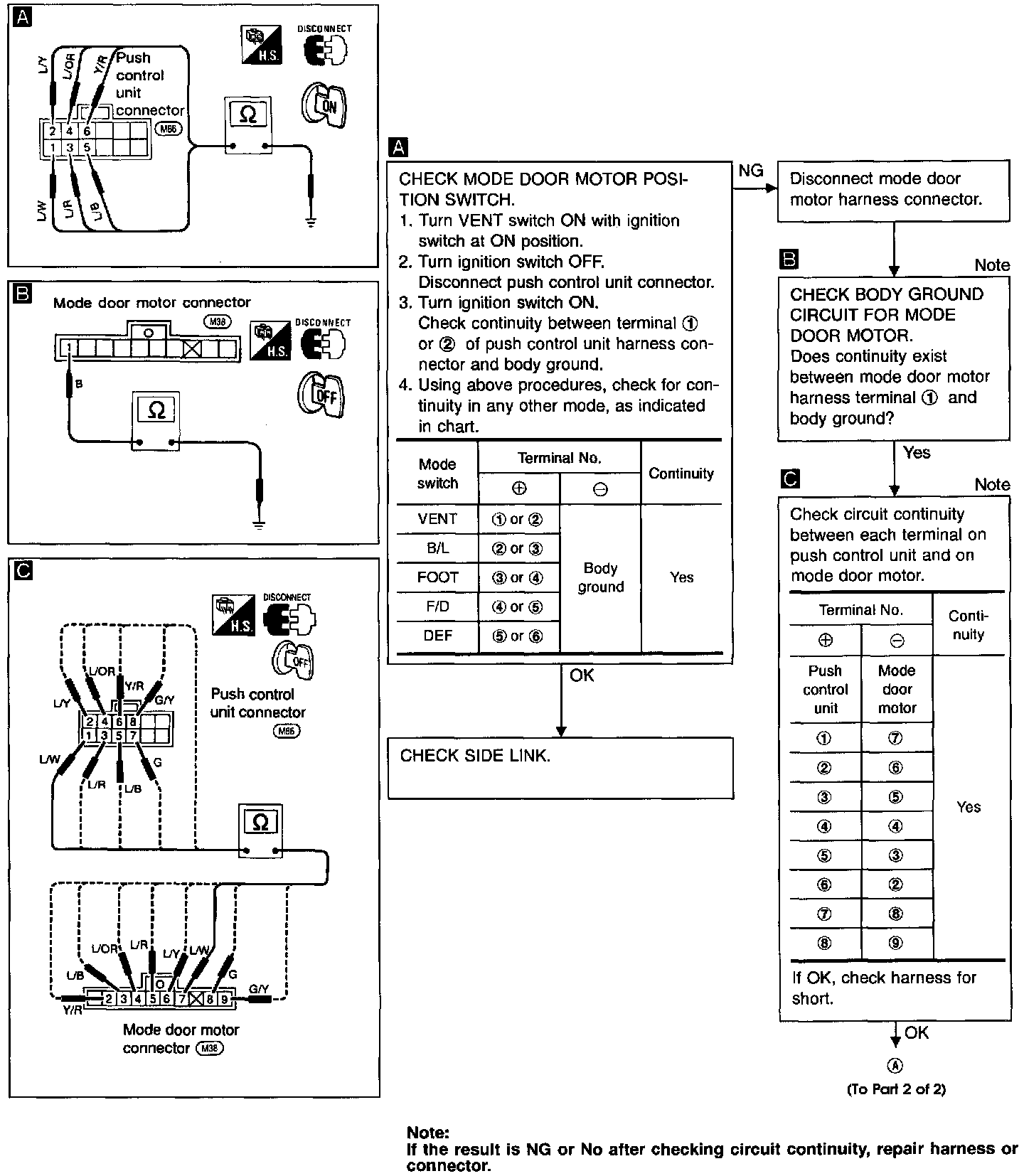

SYMPTOM: Air Outlet does not change.
^ Perform PRELIMINARY CHECK 4, Main Power Supply and Ground Circuit Check before referring to the following flow chart.
SYMPTOM: Air Outlet does not change.
^ Perform PRELIMINARY CHECK 4, Main Power Supply and Ground Circuit Check before referring to the following flow chart.
