Diagnostic Procedure 8











Diagnostic Procedure 8

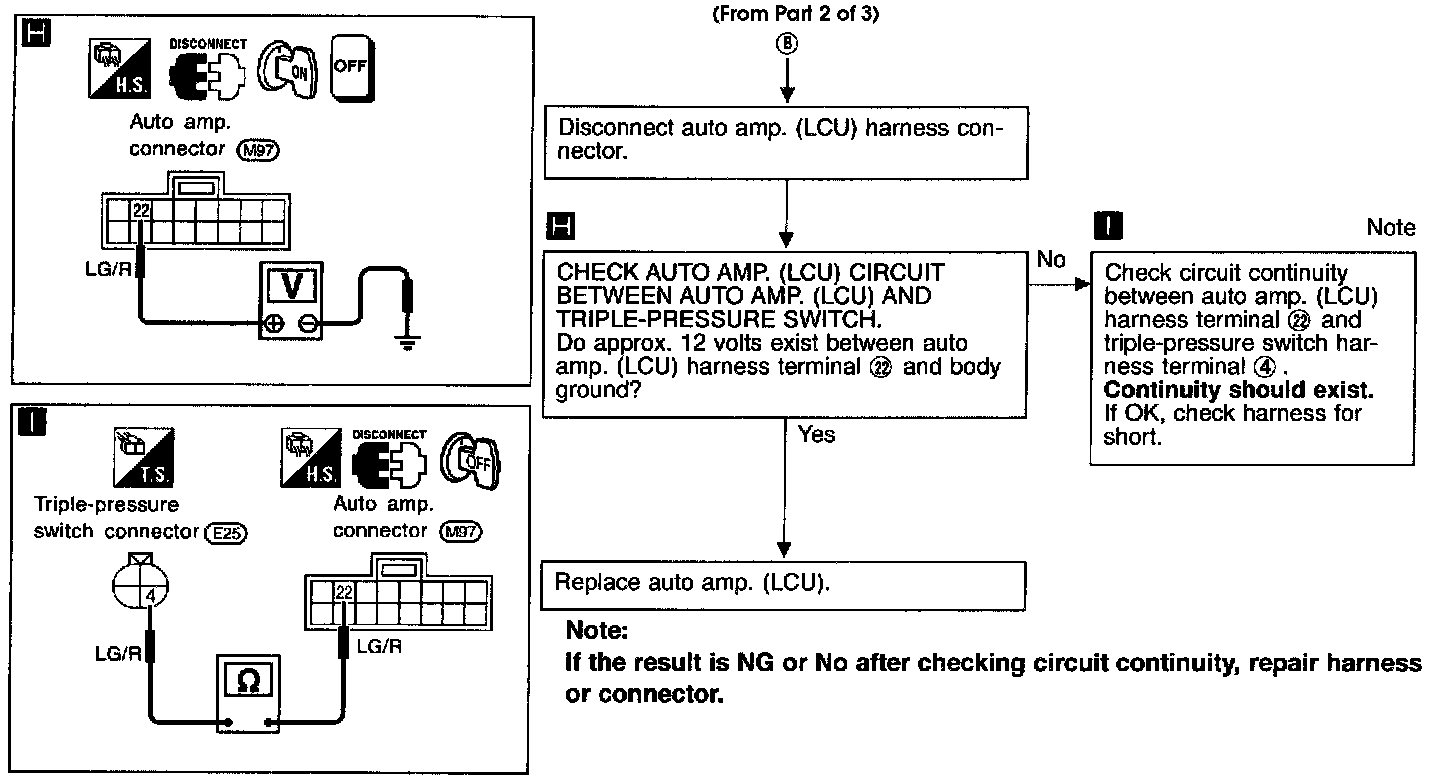

SYMPTOM: Magnet clutch does not engage after performing Preliminary check 6.
^ Perform Preliminary check 6 before referring to the flow chart.
