Diagnostic Procedure 7








Diagnostic Procedure 7

SYMPTOM: Blower motor operation is malfunctioning under out of Starting Fan Speed Control.

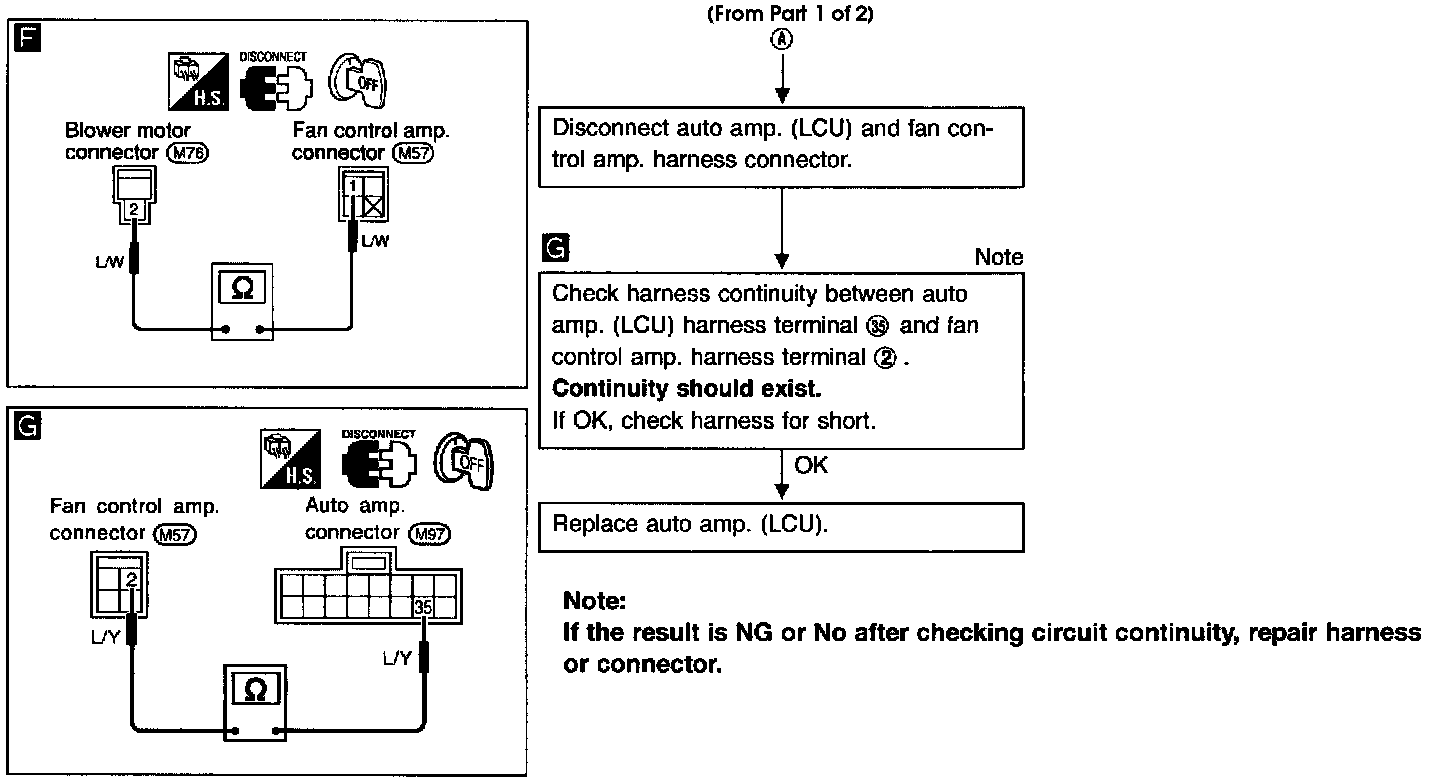

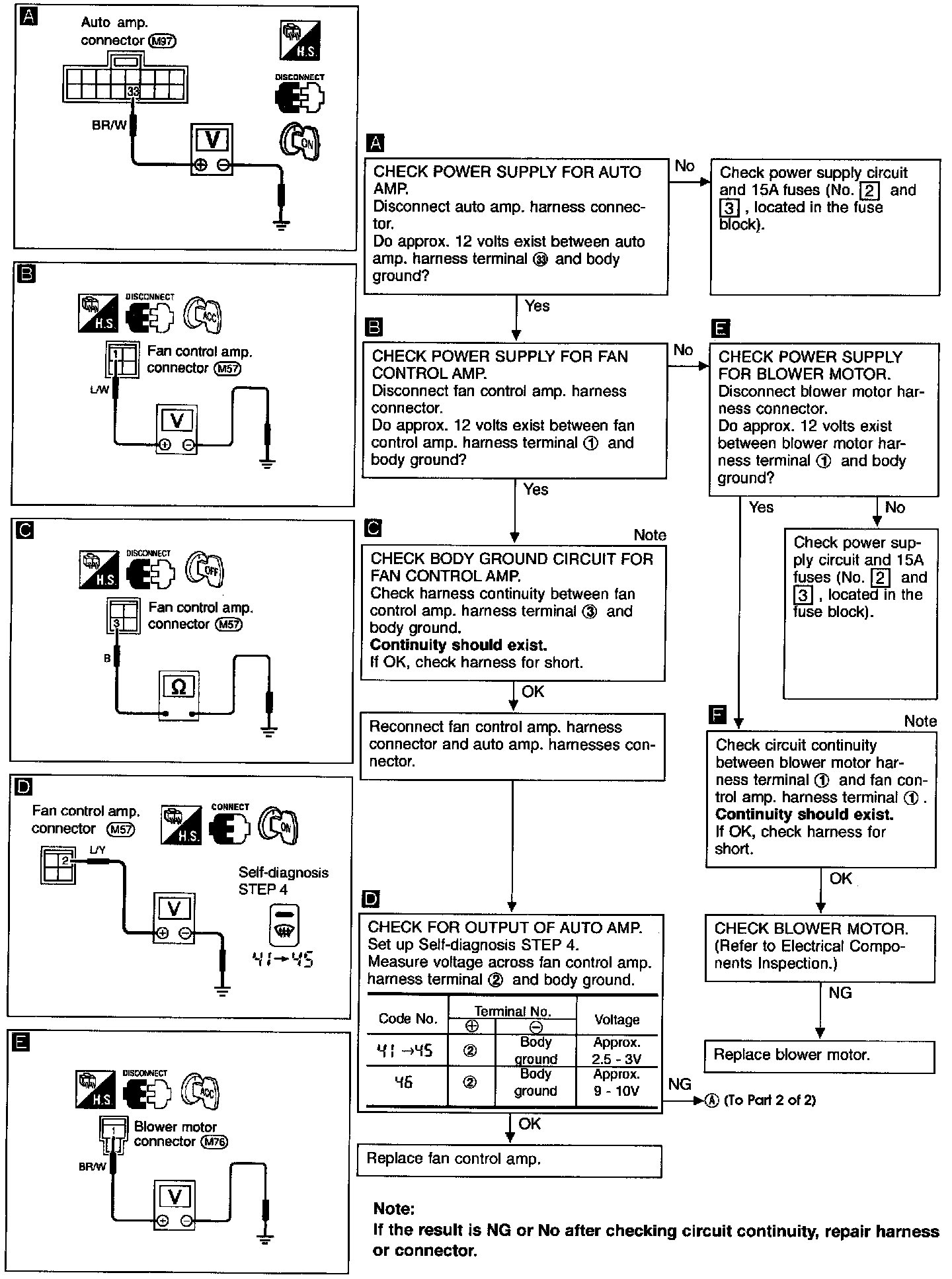

^ Perform Preliminary Check 5 before referring to the following flow chart.
