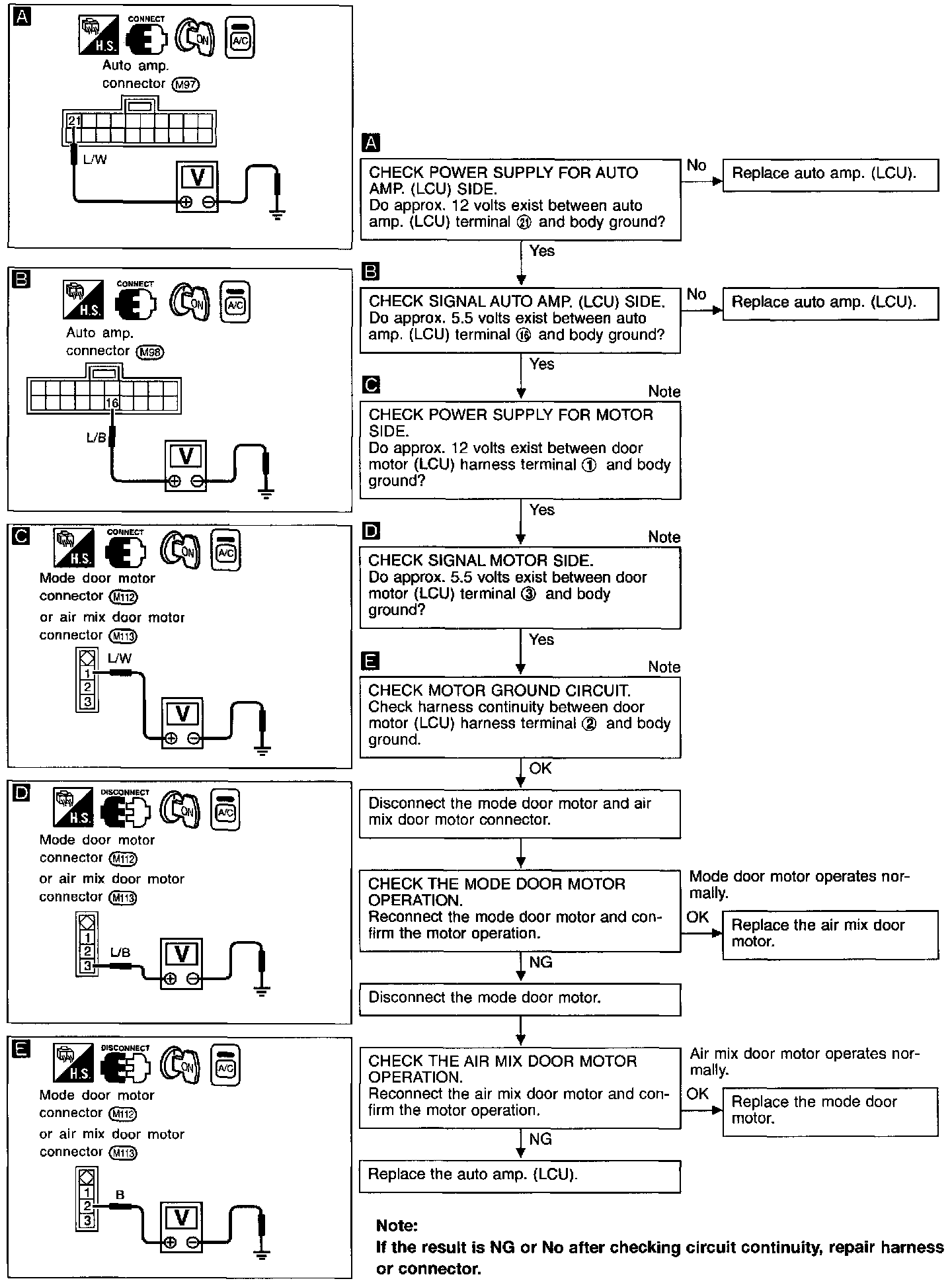

Diagnostic Procedure 5





Diagnostic Procedure 5

SYMPTOM: Mode door motor and/or air mix door motor do not operate normally. (26 or -26 is indicated on auto amp. as a result of conducting self-diagnosis step 2.)
