Diagnostic Procedure 3





Diagnostic Procedure 3

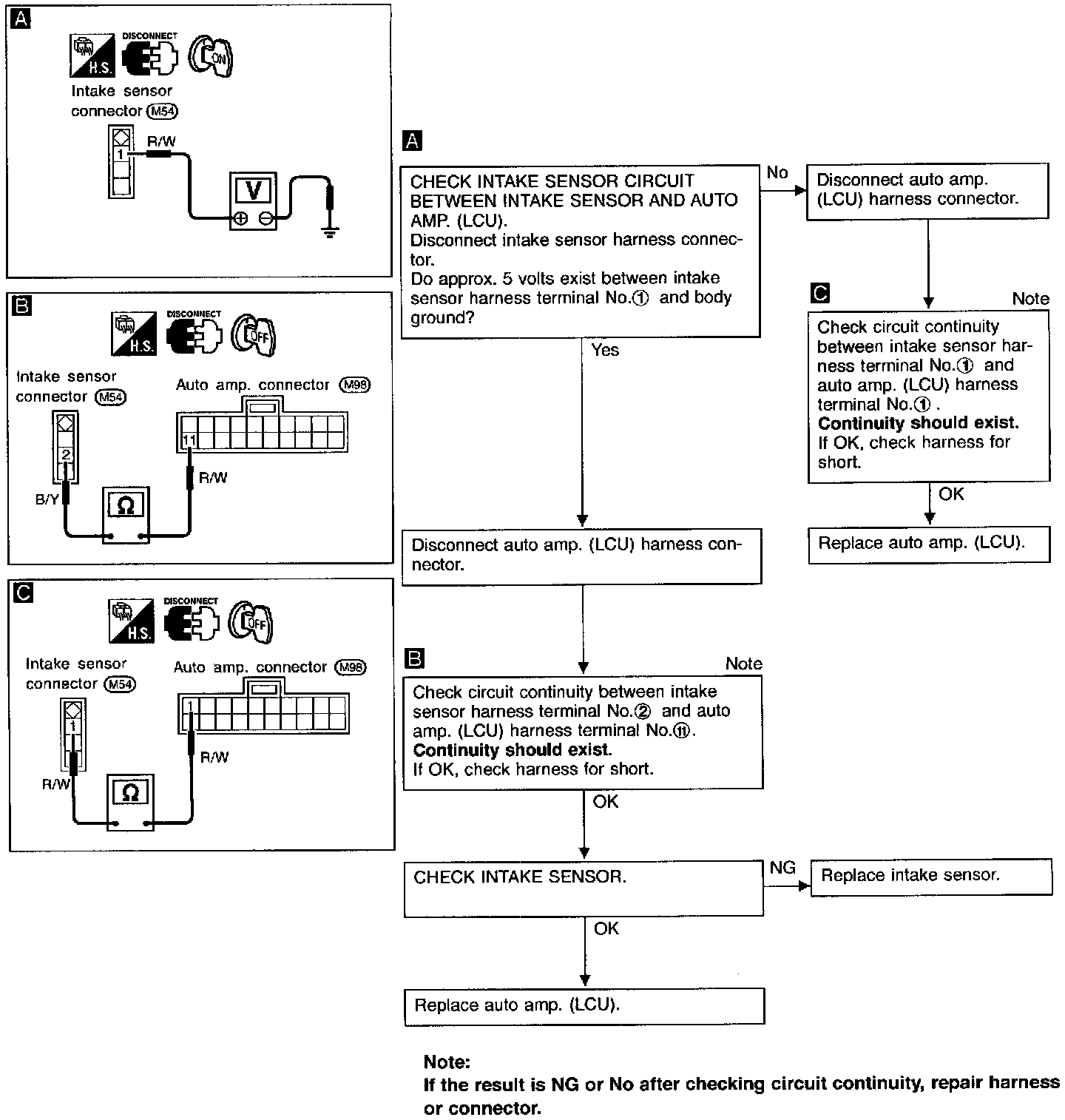

SYMPTOM: Intake sensor circuit is open or shorted. (24 or -24 is indicated on auto amp. as a result of conducting Self-diagnosis STEP 2.)
