Preliminary Checks

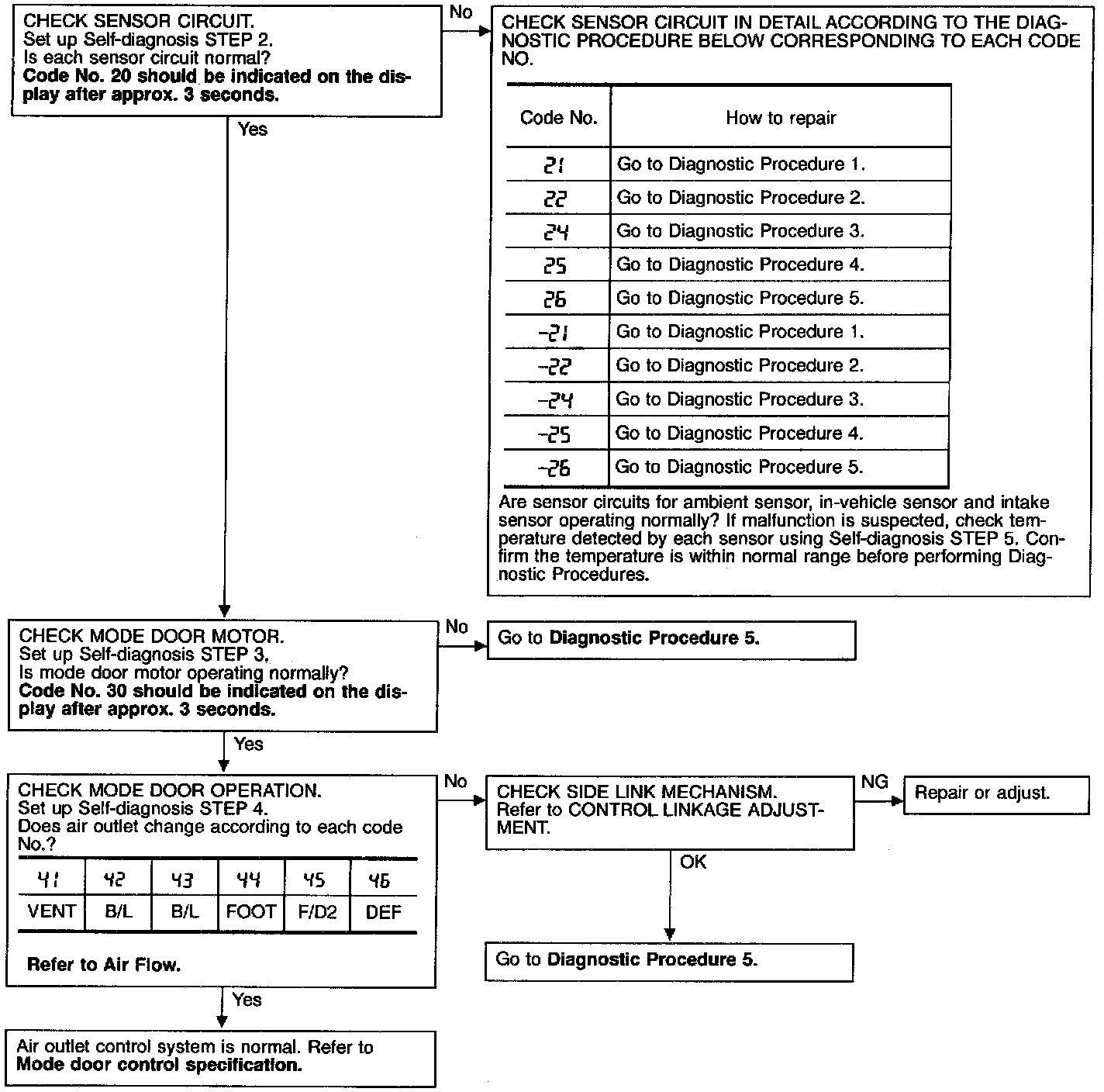

PRELIMINARY CHECK 1
Air outlet does not change.
^ Perform Self-diagnosis STEP 1 before referring to the flow chart.

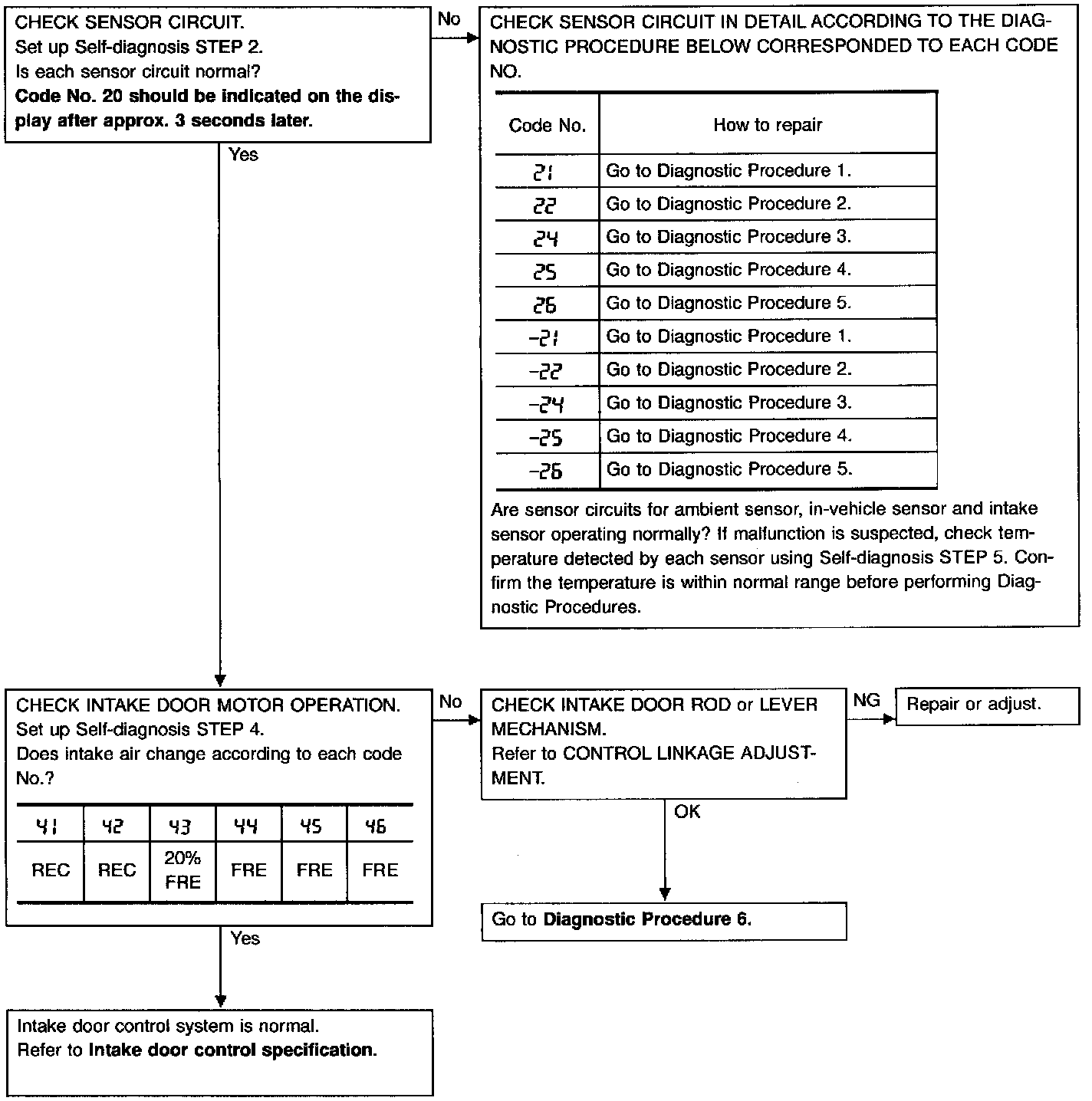

PRELIMINARY CHECK 2
Intake door does not change.
^ Perform Self-diagnosis STEP 1 before referring to the following flow chart.

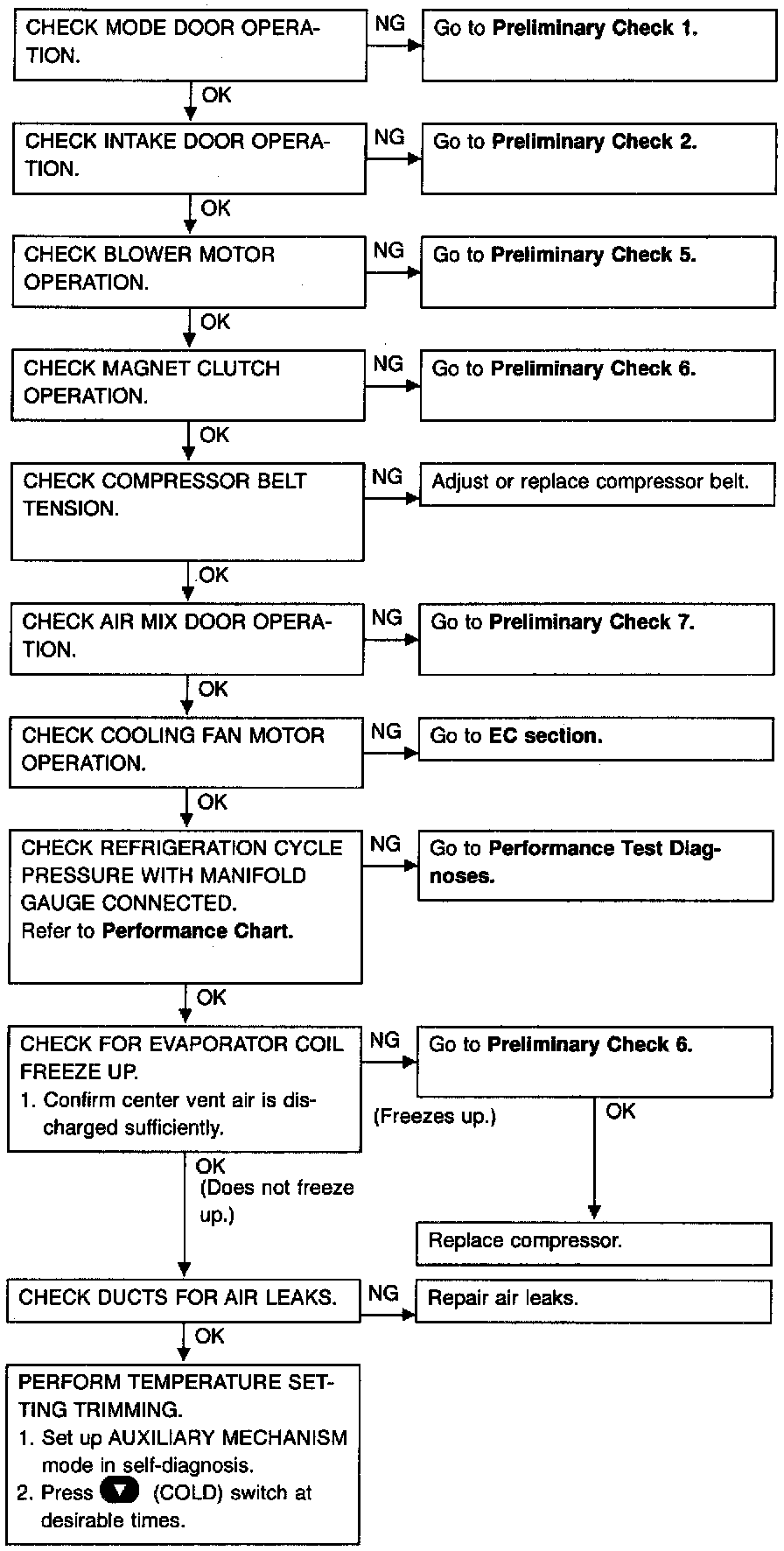

PRELIMINARY CHECK 3
Insufficient cooling

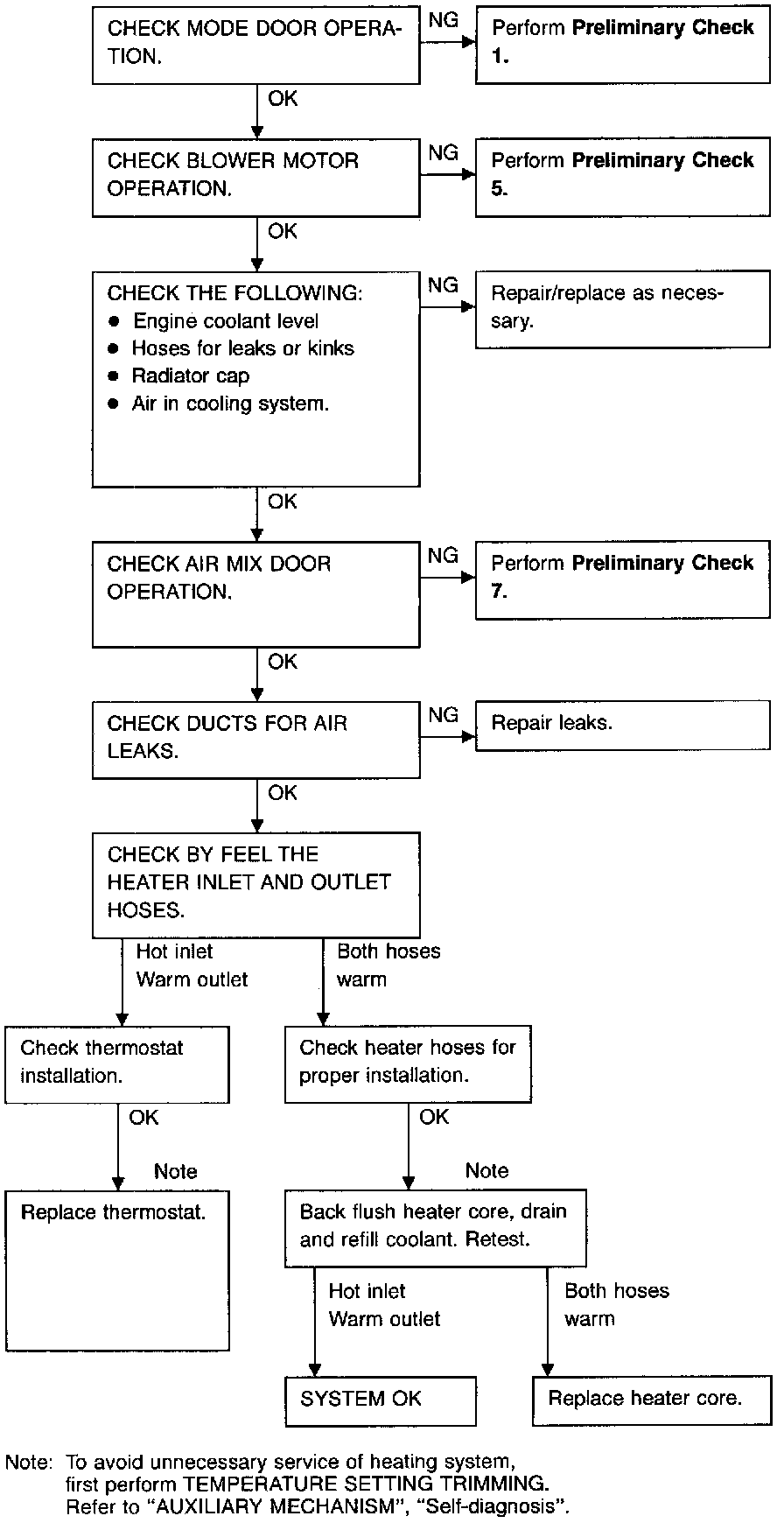

PRELIMINARY CHECK 4
Insufficient heating

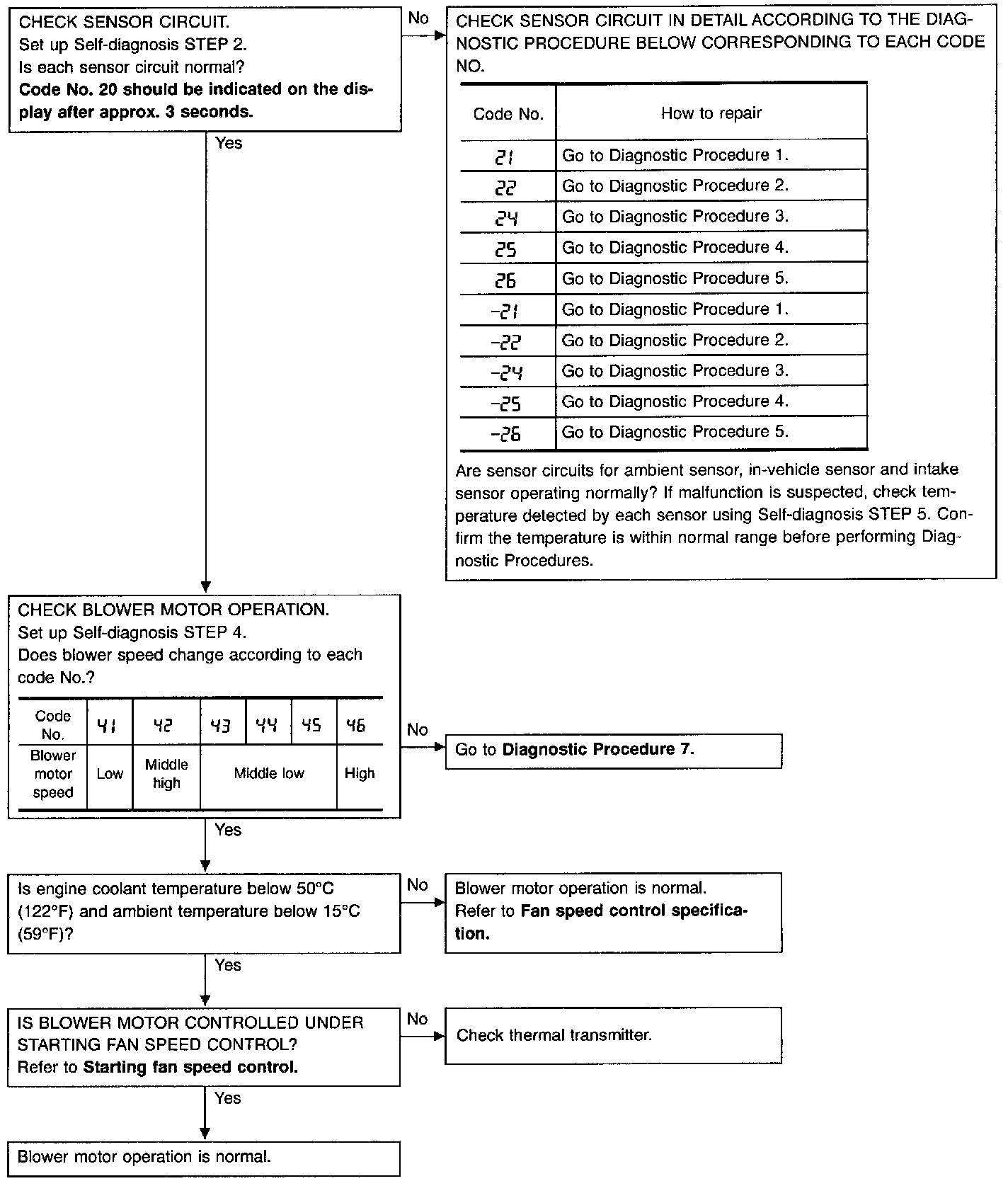

PRELIMINARY CHECK 5
Blower motor operation is malfunctioning.
^ Perform Self-diagnosis STEP 1 before referring to the following flow chart.

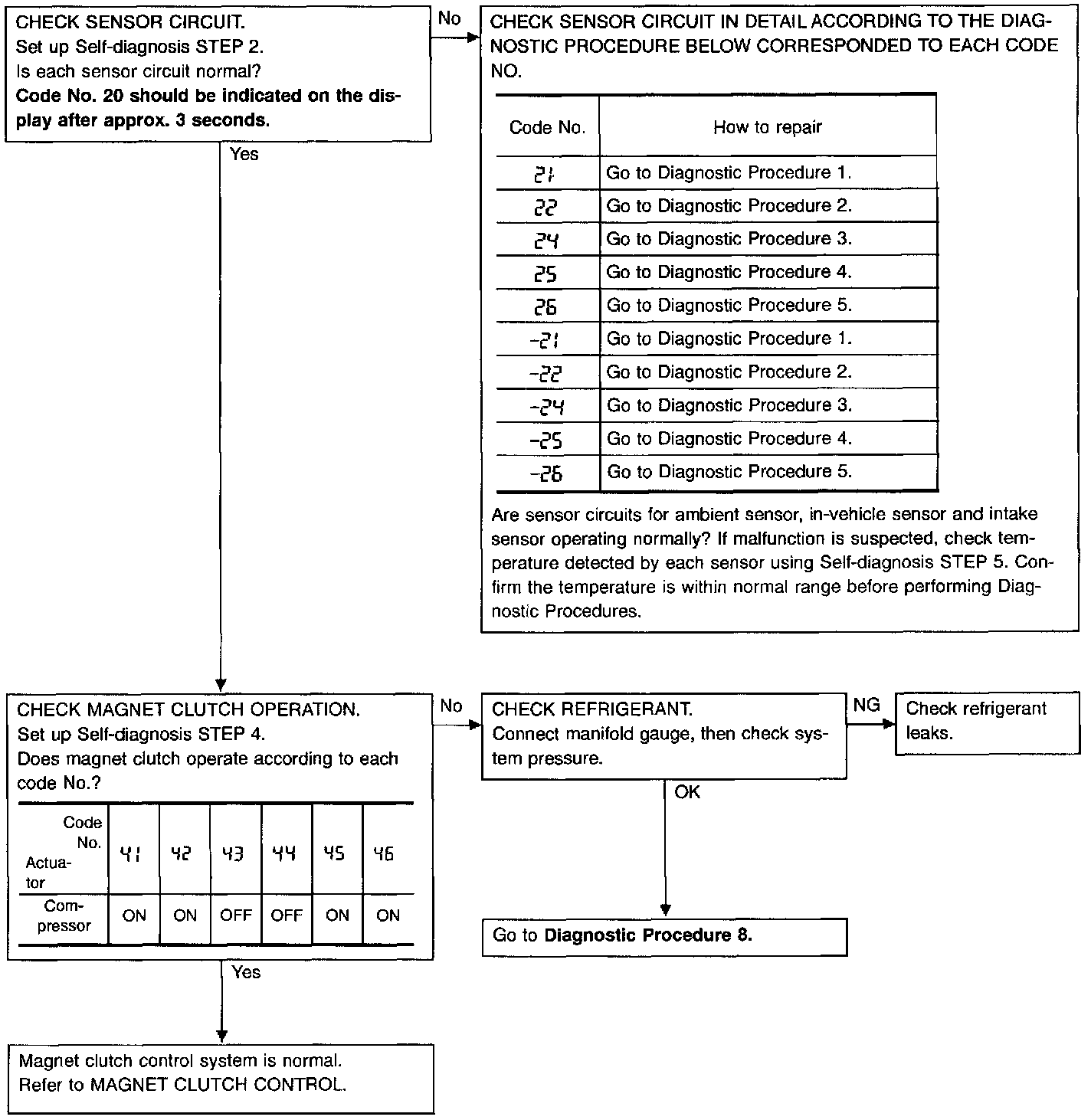

PRELIMINARY CHECK 6
Magnet clutch does not engage.
^ Perform Self-Diagnosis STEP 1 before referring to the following flow chart.

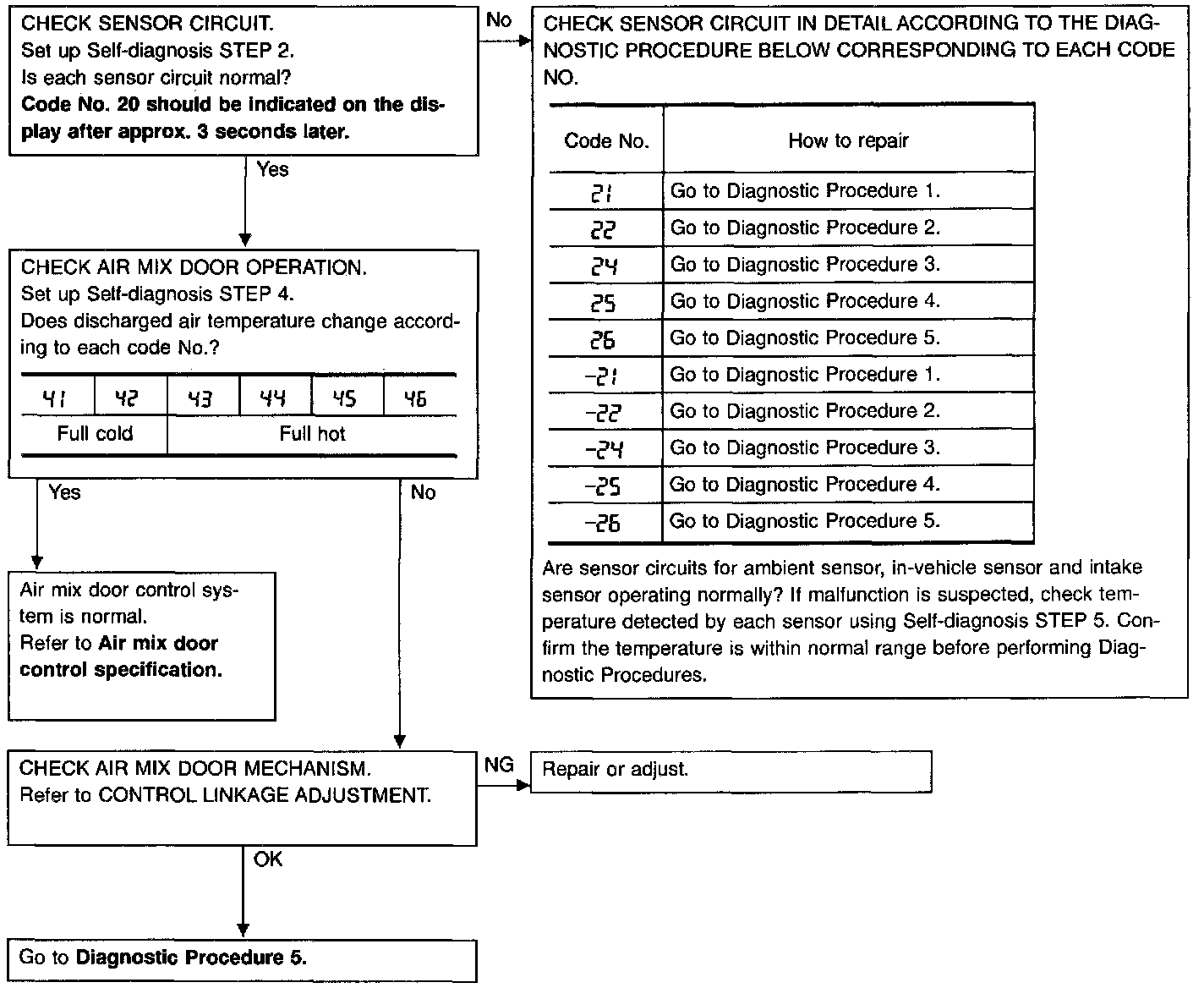

PRELIMINARY CHECK 7
Discharged air temperature does not change.
^ Perform Self-diagnosis STEP 1 before referring to the following flow chart.

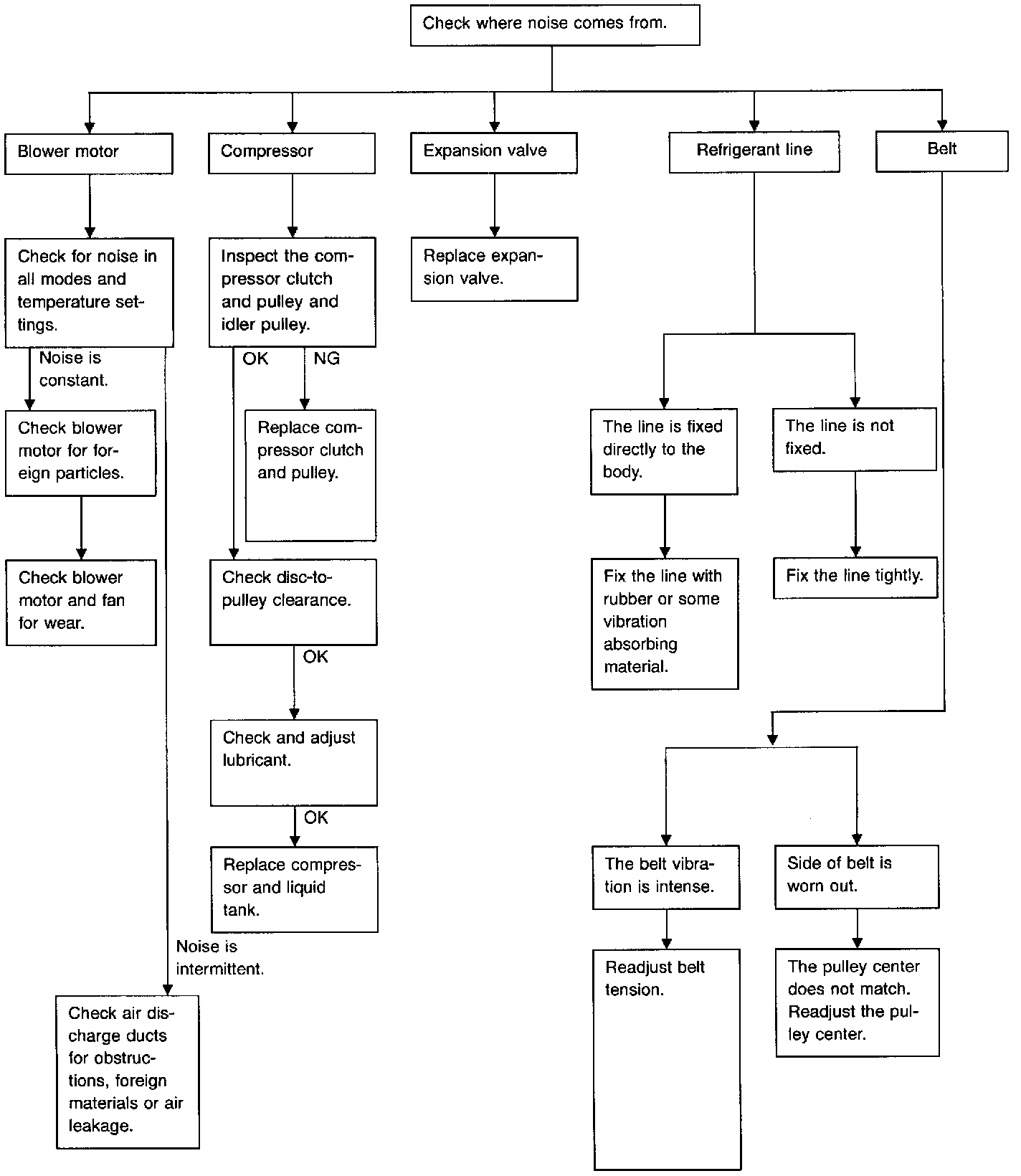

PRELIMINARY CHECK 8
Noise
