Intake Door Control

Components parts

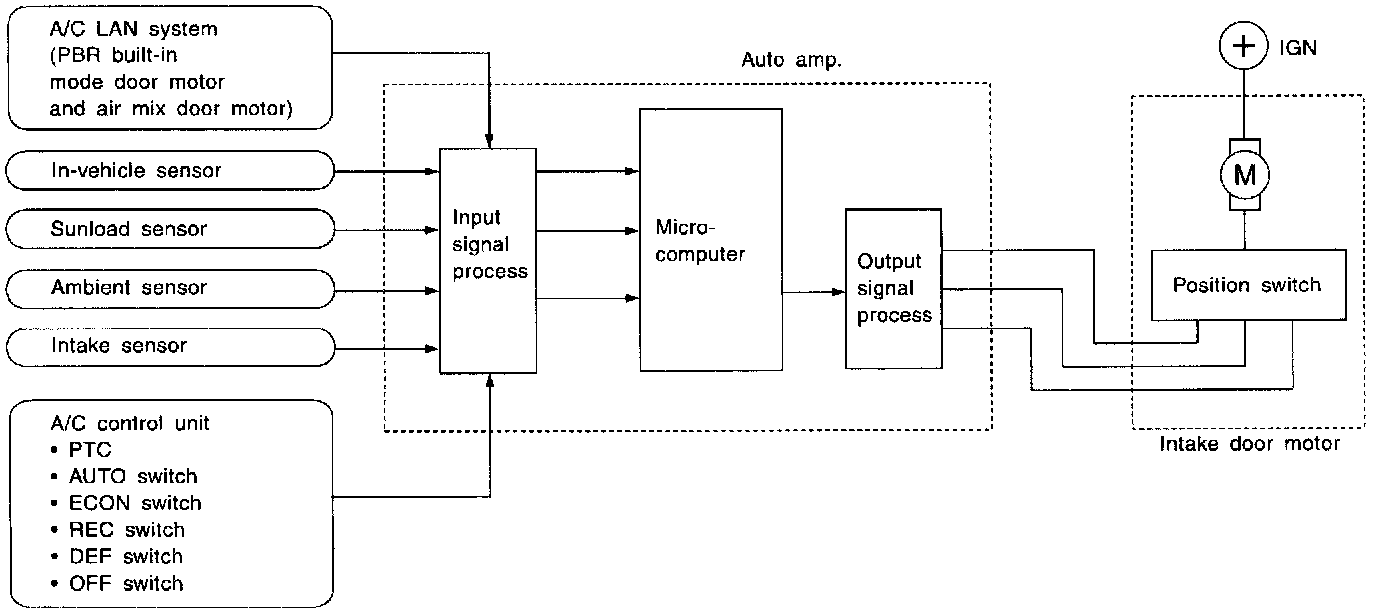

Intake door control system components are:
1. Auto amp.
2. Intake door motor
3. A/C LAN system (PBR built-in mode door motor and air mix door motor)
4. In-vehicle sensor
5. Ambient sensor
6. Sunload sensor
7. Intake sensor




System Operation
The intake door control determines intake door position based on the ambient temperature and the in vehicle temperature. When the ECON, DEF, or OFF buttons are pushed, the auto amp. sets the intake door at the "Fresh" position.

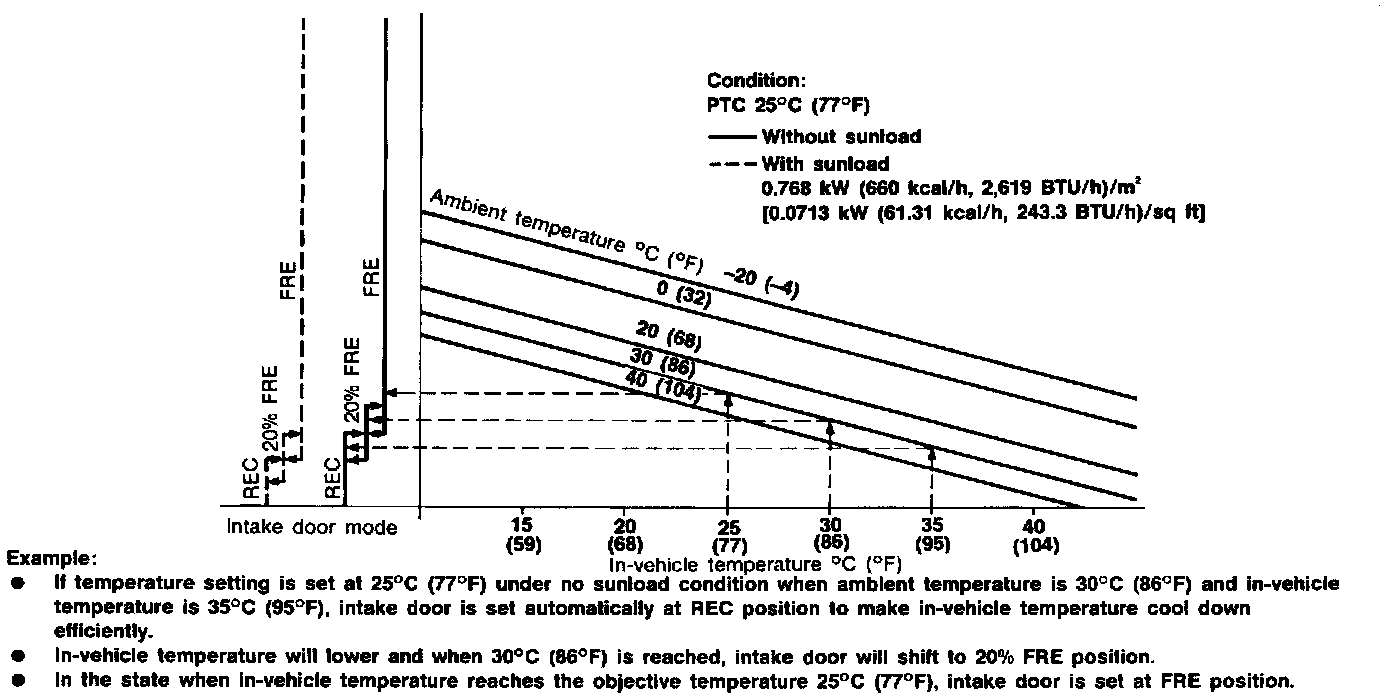

Intake door control specification
