Home >> Nissan-Datsun >> 1998 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Front Heated Oxygen Sensor (Front H2OS) >> Left Bank

Left Bank

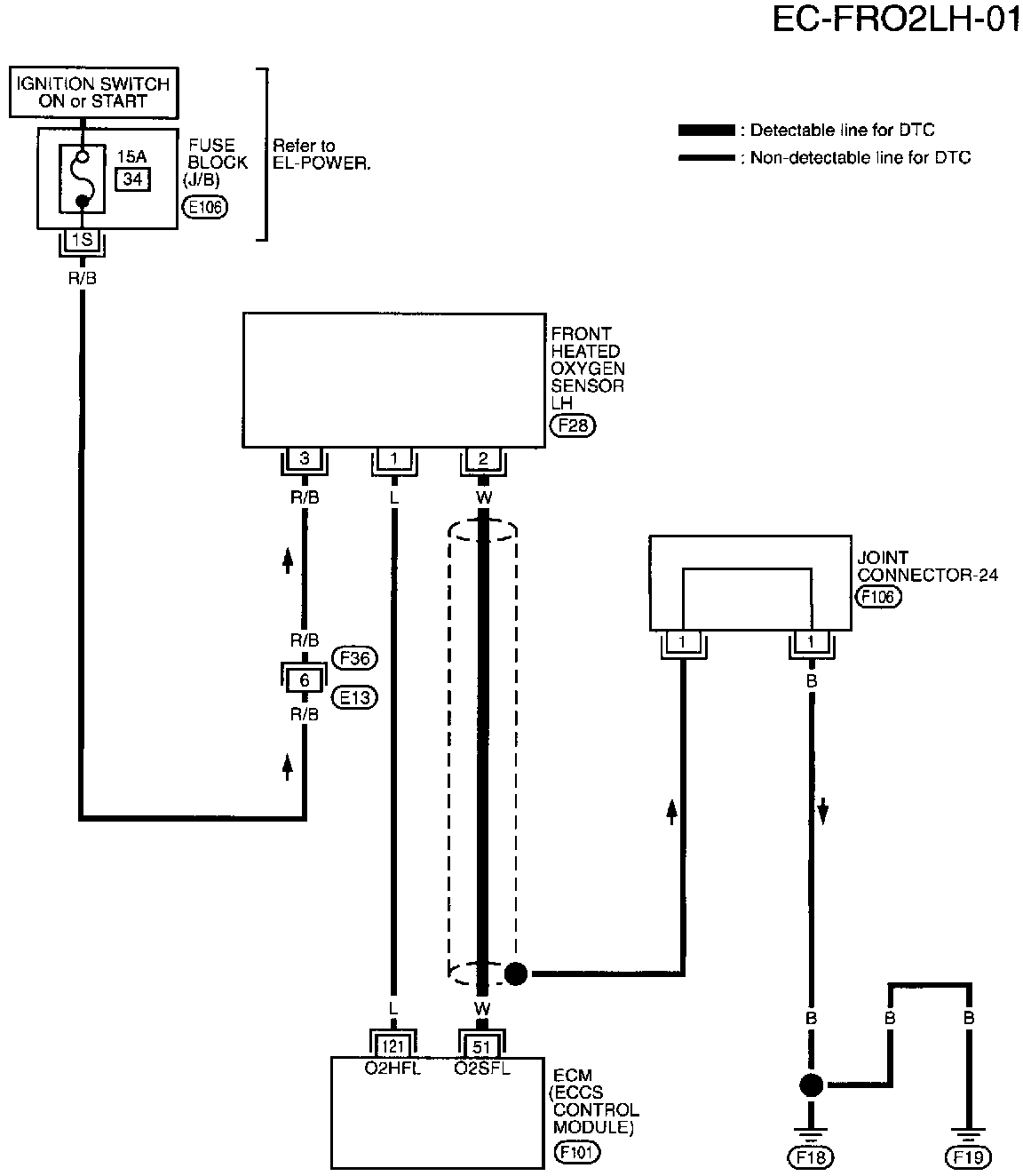

Electrical Diagrams

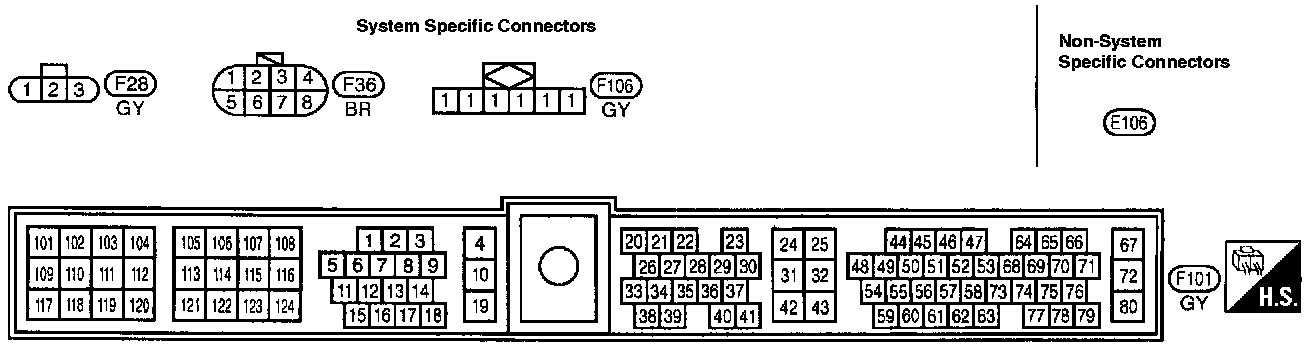

Circuit Connectors





Fuse Block - Junction Box (J/B)
