Home
>>
Nissan-Datsun
>>
1998
>>
Maxima GXE V6-3.0L (VQ30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
System Diagram
>>
Schematic
Schematic

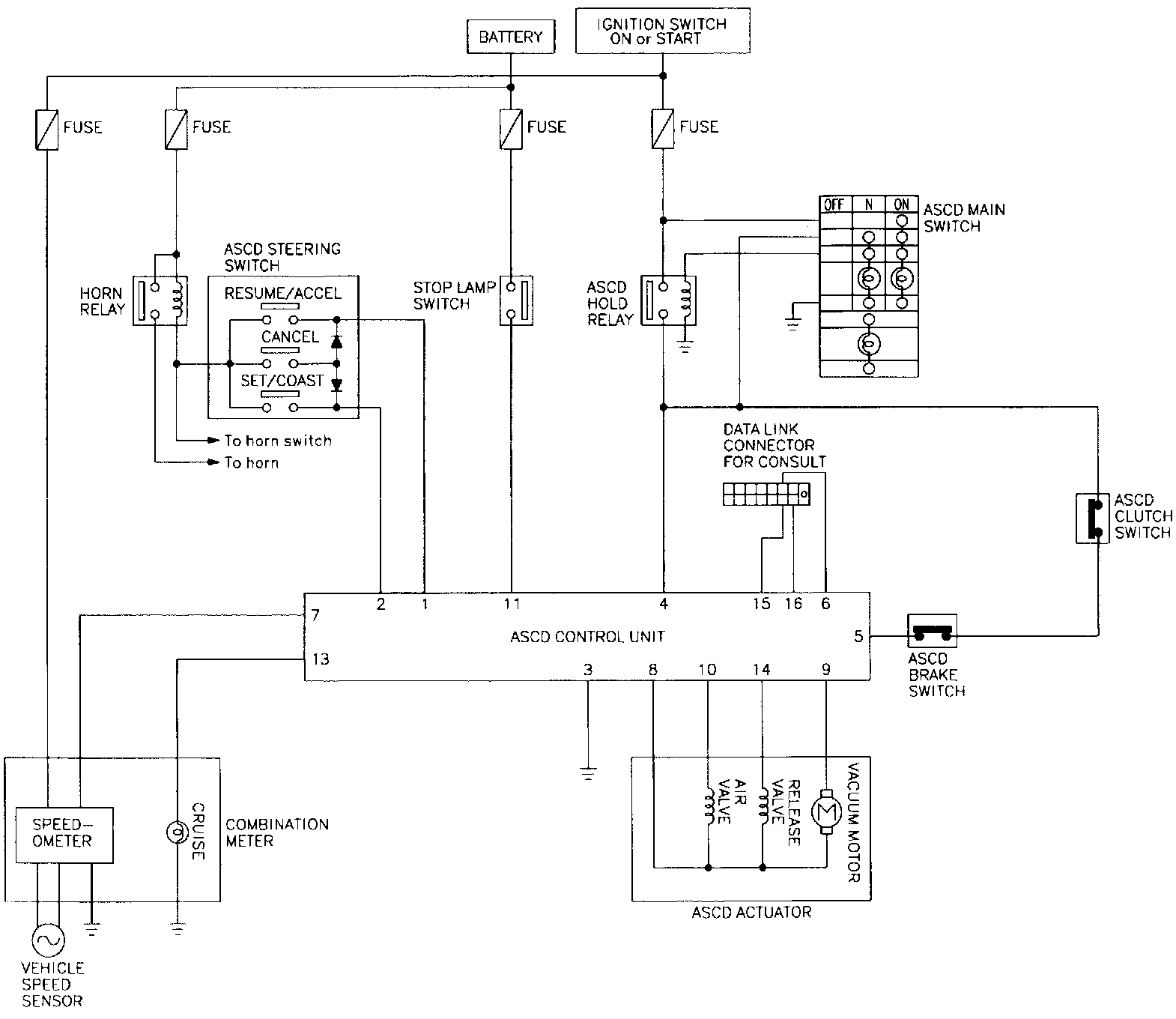

Schematic - M/T Models

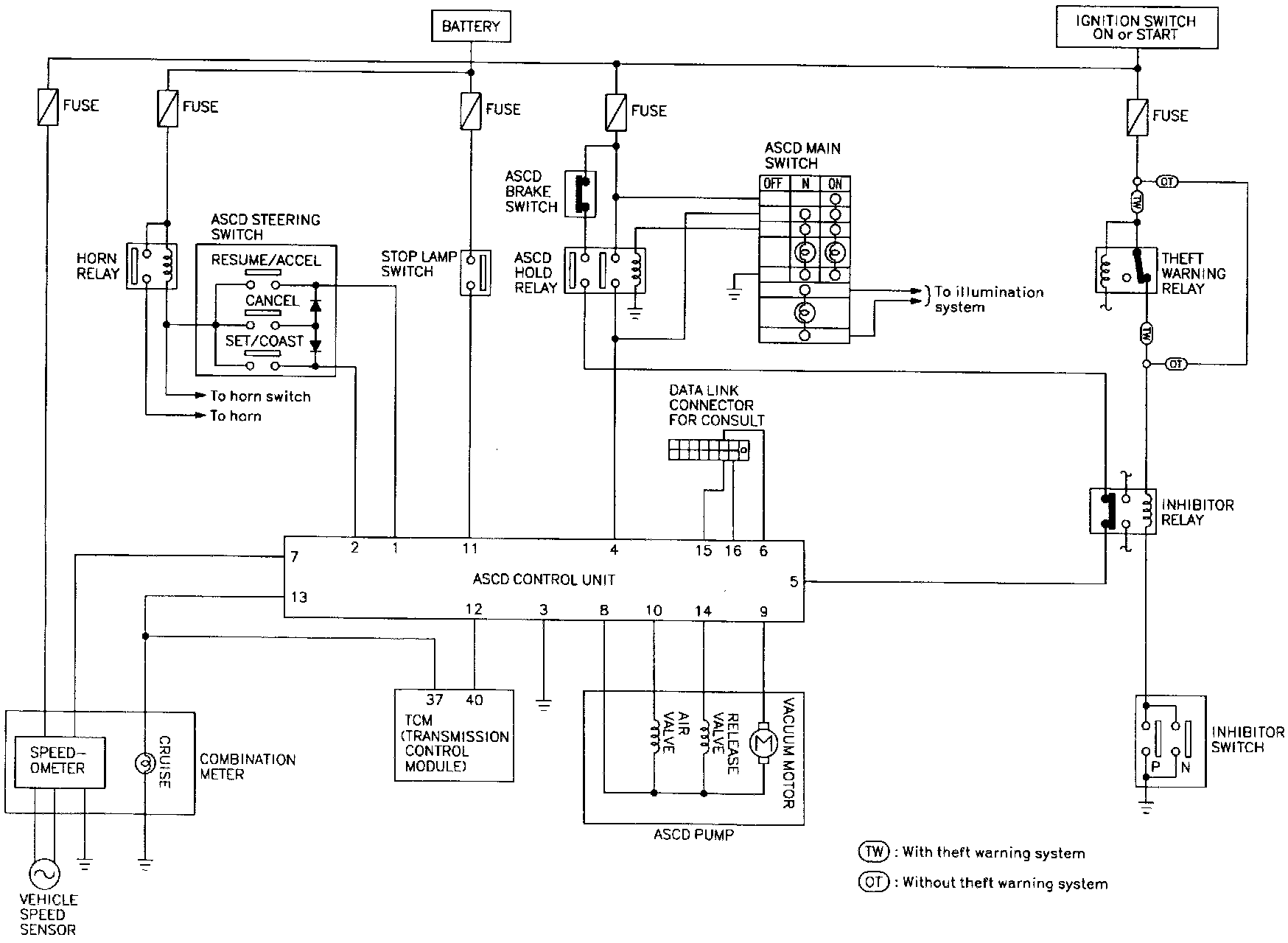

Schematic - A/T Models
