Home >> Nissan-Datsun >> 1998 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Shift Interlock, A/T >> System Diagram

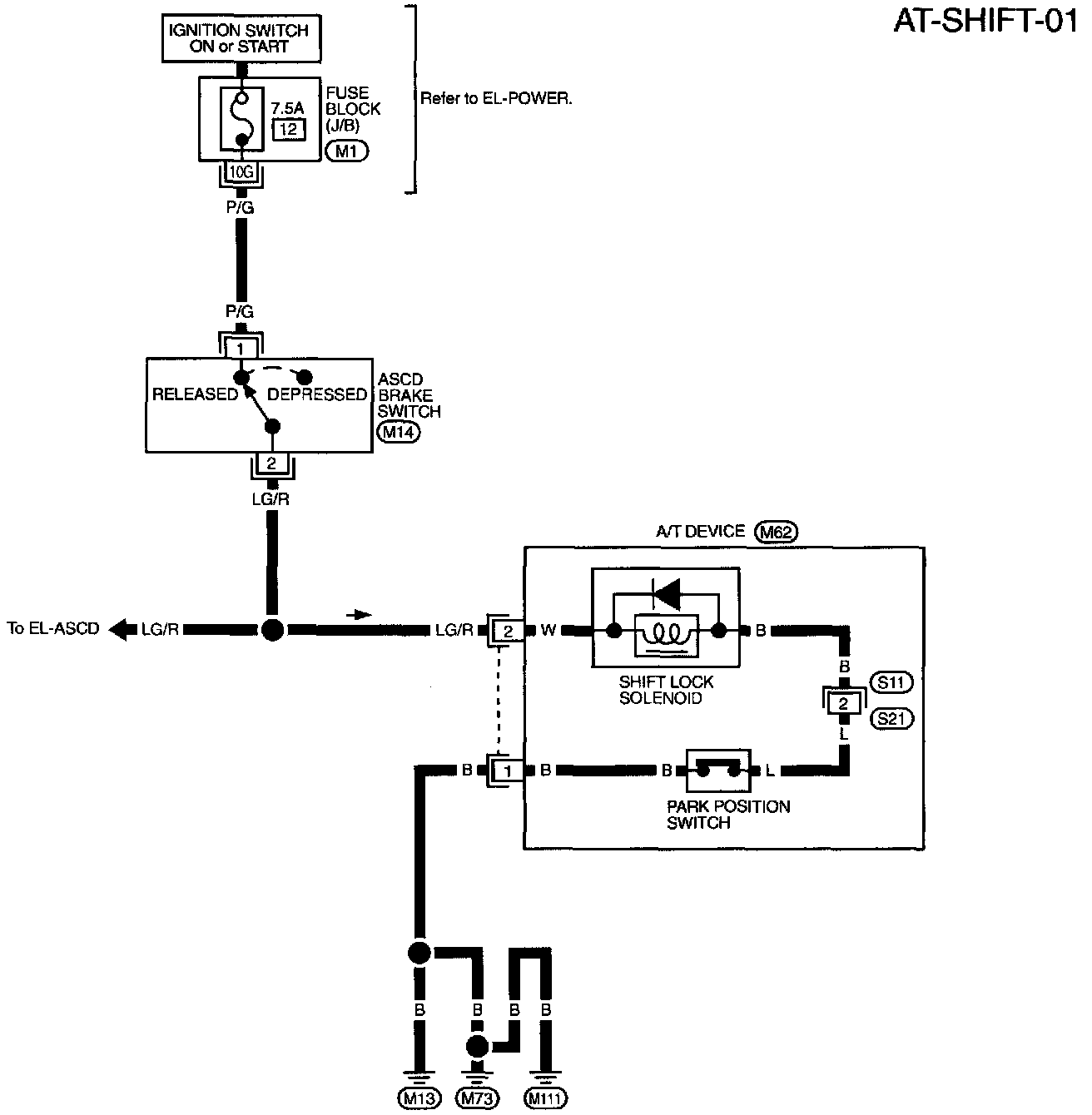

System Diagram





Electrical Diagrams





Circuit Connectors





Fuse Block - Junction Box (J/B)
