With CONSULT Scan Tool

HOW TO DISPLAY THE TROUBLE CODES
1. Turn ignition switch OFF.

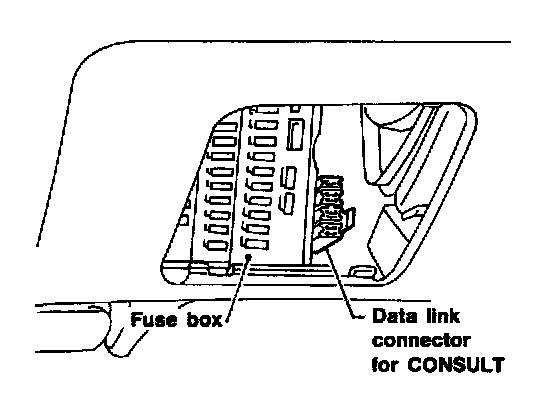

2. Connect CONSULT to data Link Connector for CONSULT.
3. Start engine.
4. Drive vehicle over 30 km/h (19 MPH) for at least one minute.

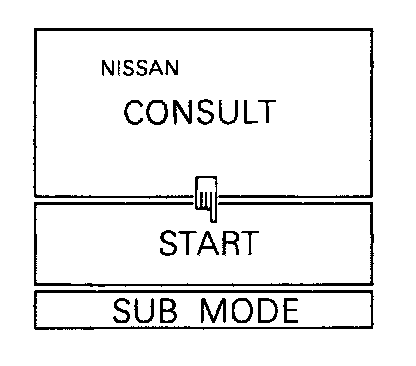

5. Stop vehicle with engine running and touch "START" on CONSULT screen.

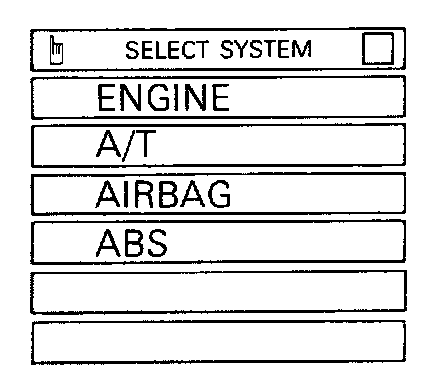

6. Touch "ABS".

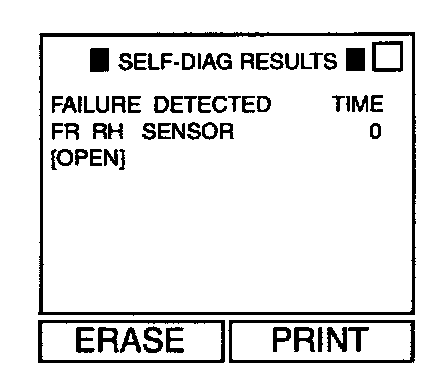

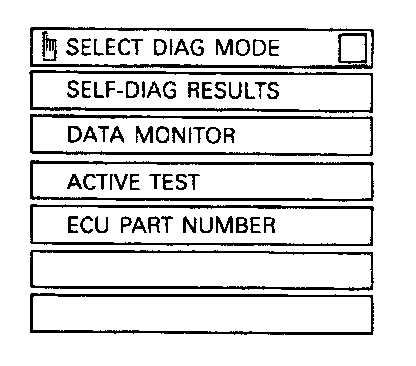

7. Touch "SELF-DIAG RESULTS".
- The screen shows the detected malfunction and how many times the ignition has been turned since the malfunction.
8. Make the necessary repairs following the diagnostic procedures.
Refer to Testing and Inspection.

9. After all malfunctions are repaired, erase the self-diagnostic results stored in the control unit by touching "ERASE".
10. Check warning lamp for deactivation after driving vehicle over 30 km/h (19 MPH) for at least one minute.




NOTE: "SELF-DIAG RESULTS" screen shows the detected malfunction and how many times the ignition switch has been turned since the malfunction.
