Component Tests and General Diagnostics

DIAGNOSTIC PROCEDURES





Diagnostic Procedure 1-(1) (Door switch check)

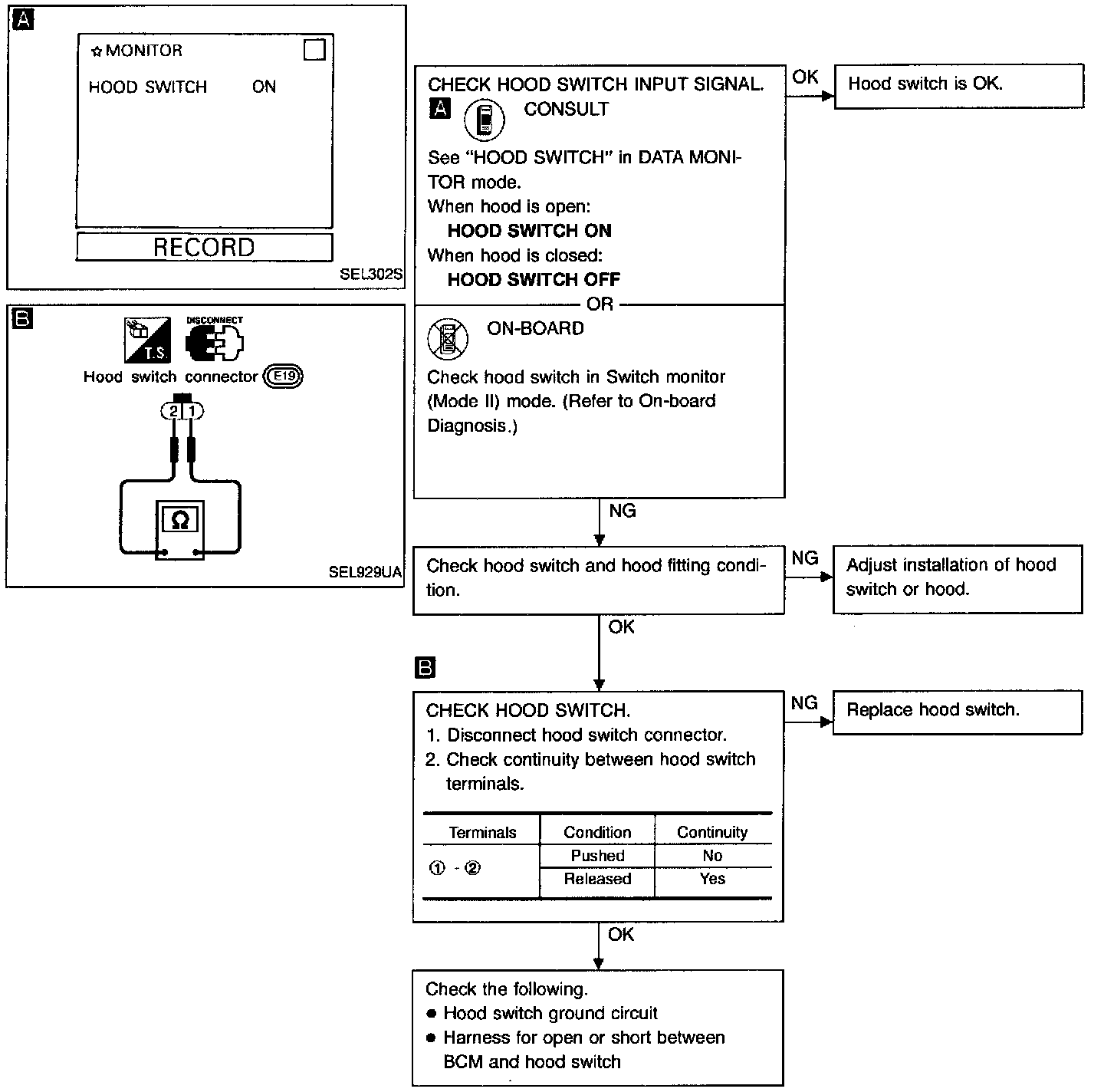

Diagnostic Procedure 1-(2) (Hood Switch Check)

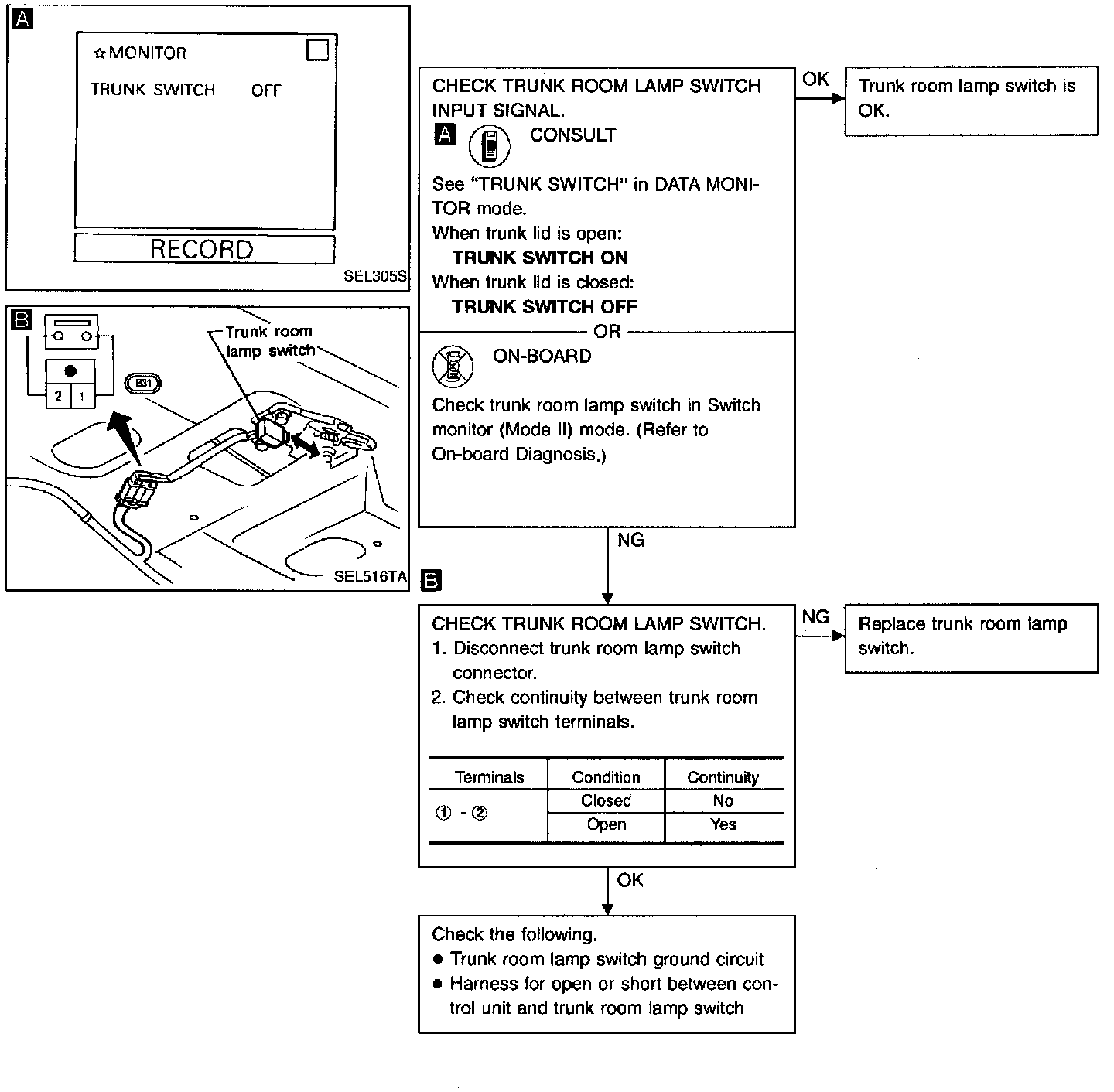

Diagnostic Procedure 1-(3) (Trunk Room Lamp Switch Check)

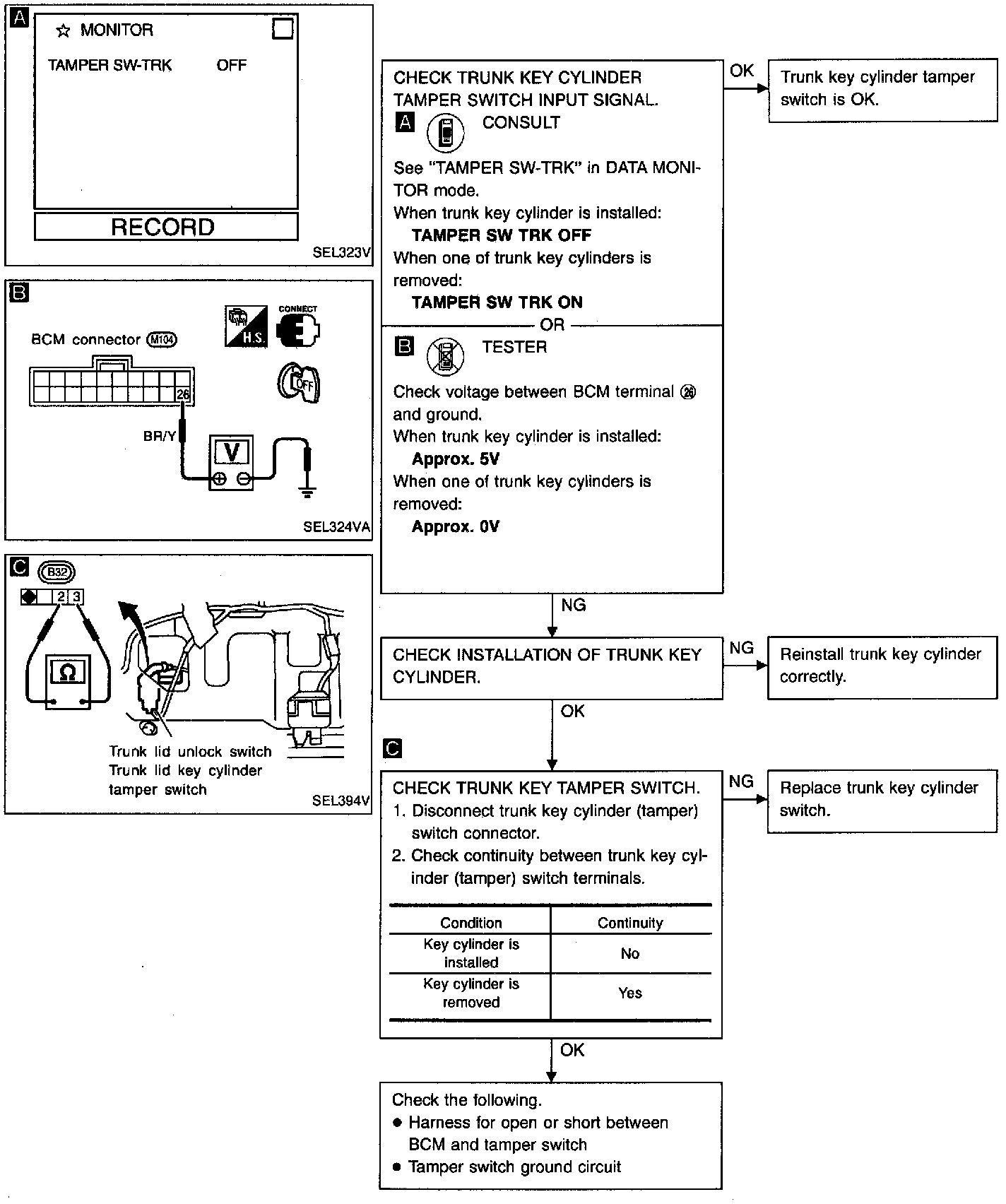

Diagnostic Procedure 1-(4) (Trunk Cylinder Tamper Switch Check)

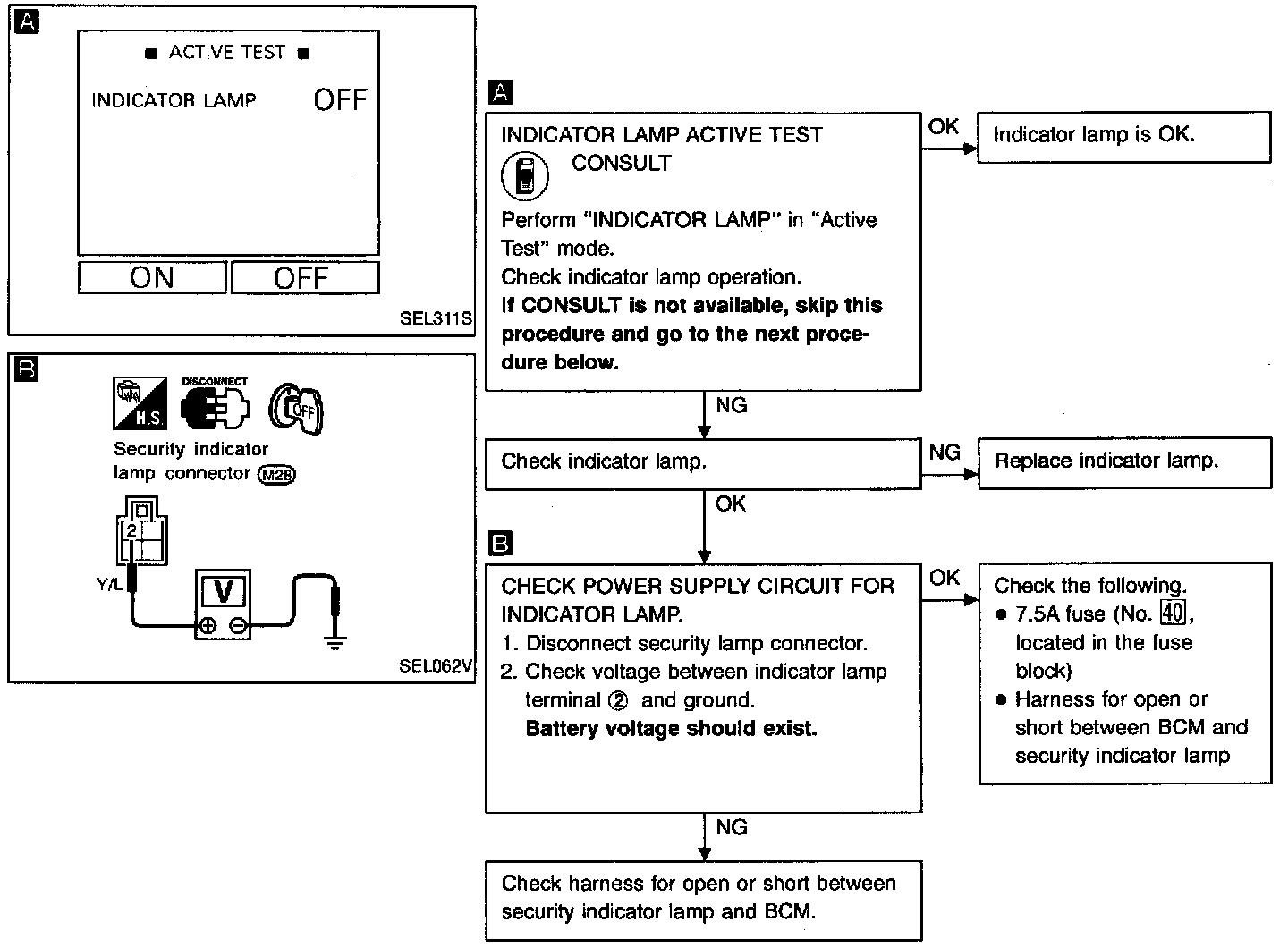

Diagnostic Procedure 2 (Security Indicator Lamp Check)

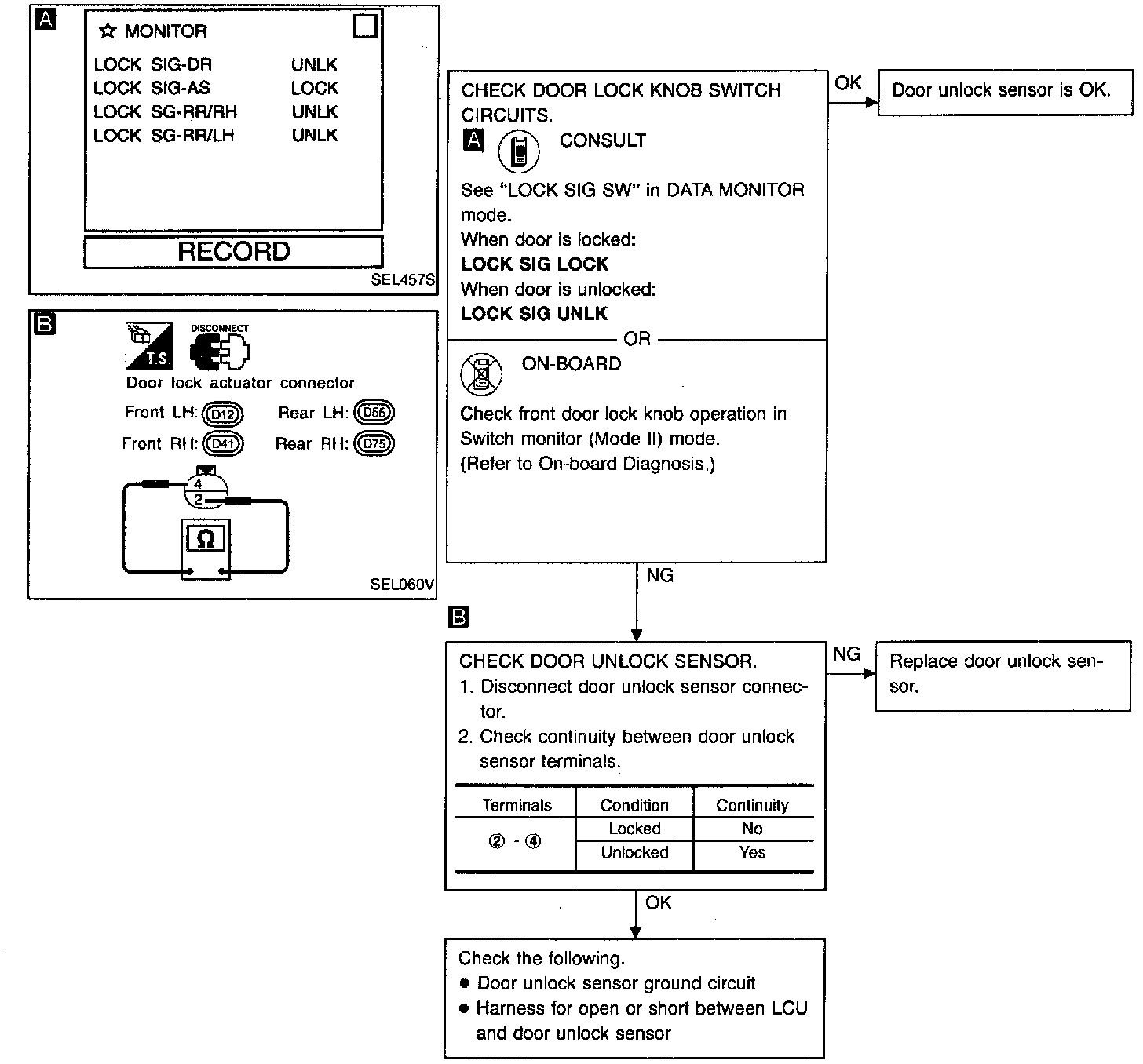

Diagnostic Procedure 3 (Door Unlock Sensor Check)

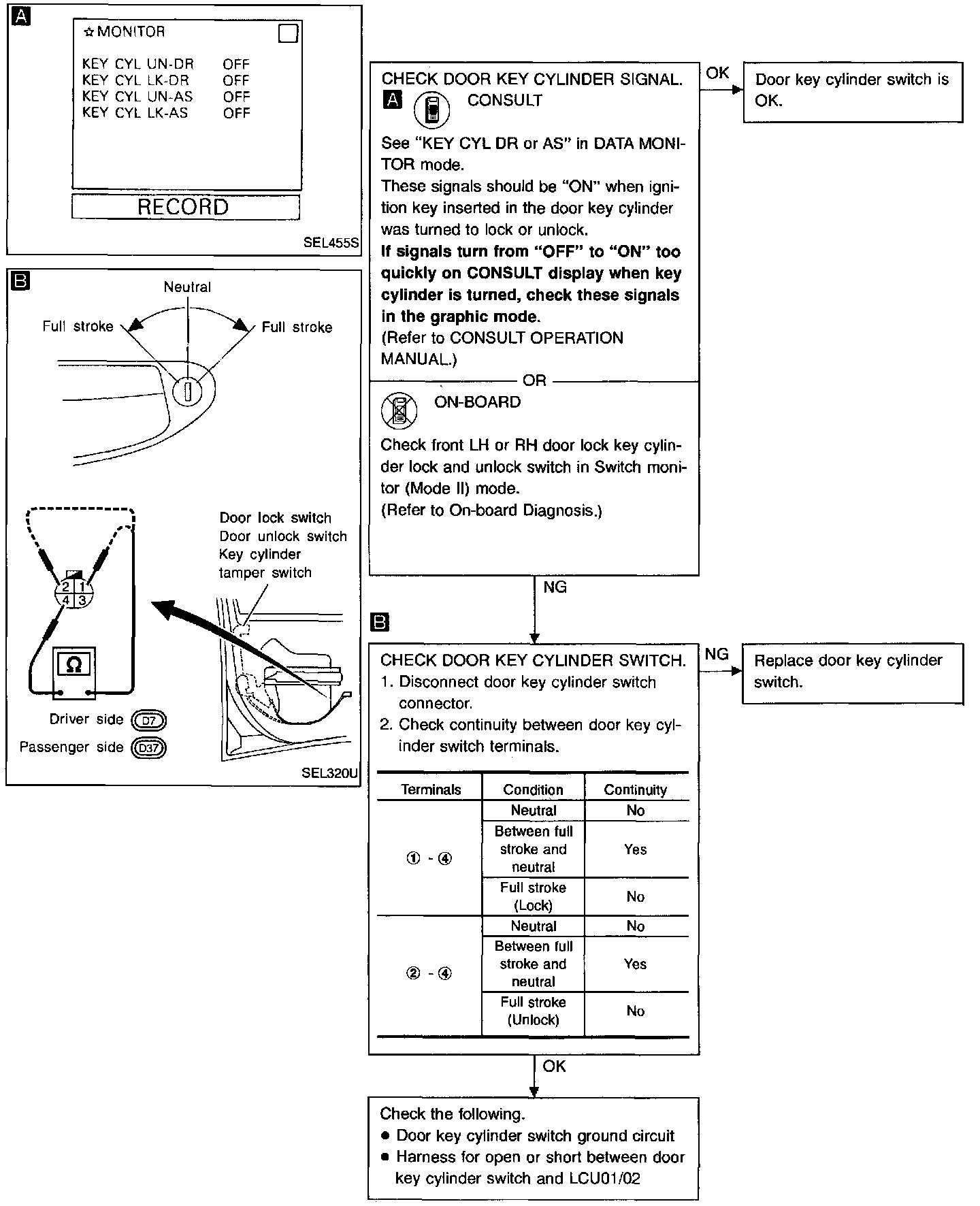

Diagnostic Procedure 4 (Door Key Cylinder Switch Check)

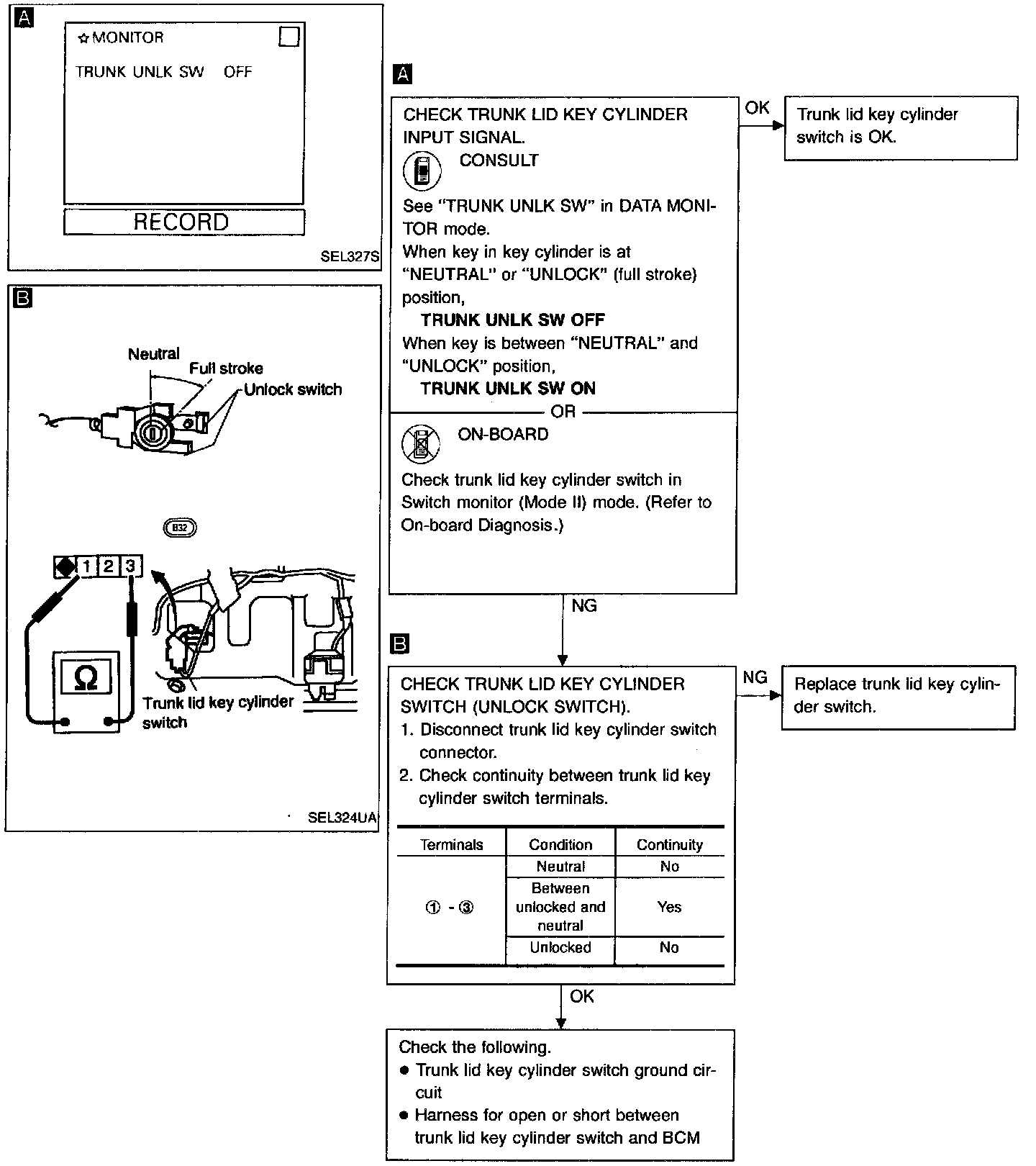

Diagnostic Procedure 5 (Trunk Lid Key Cylinder Switch Check)

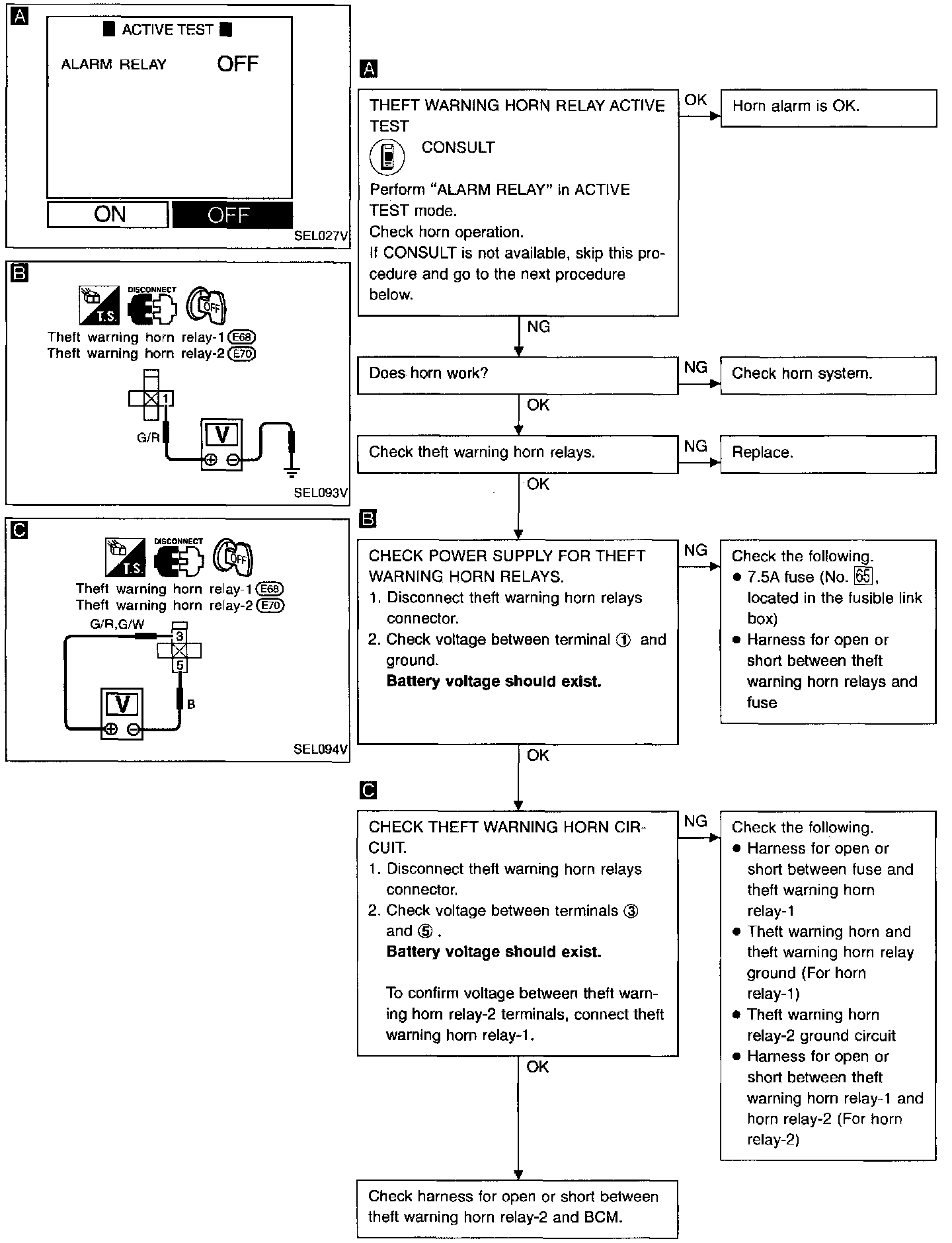

Diagnostic Procedure 6 (Theft Warning Horn Alarm Check)

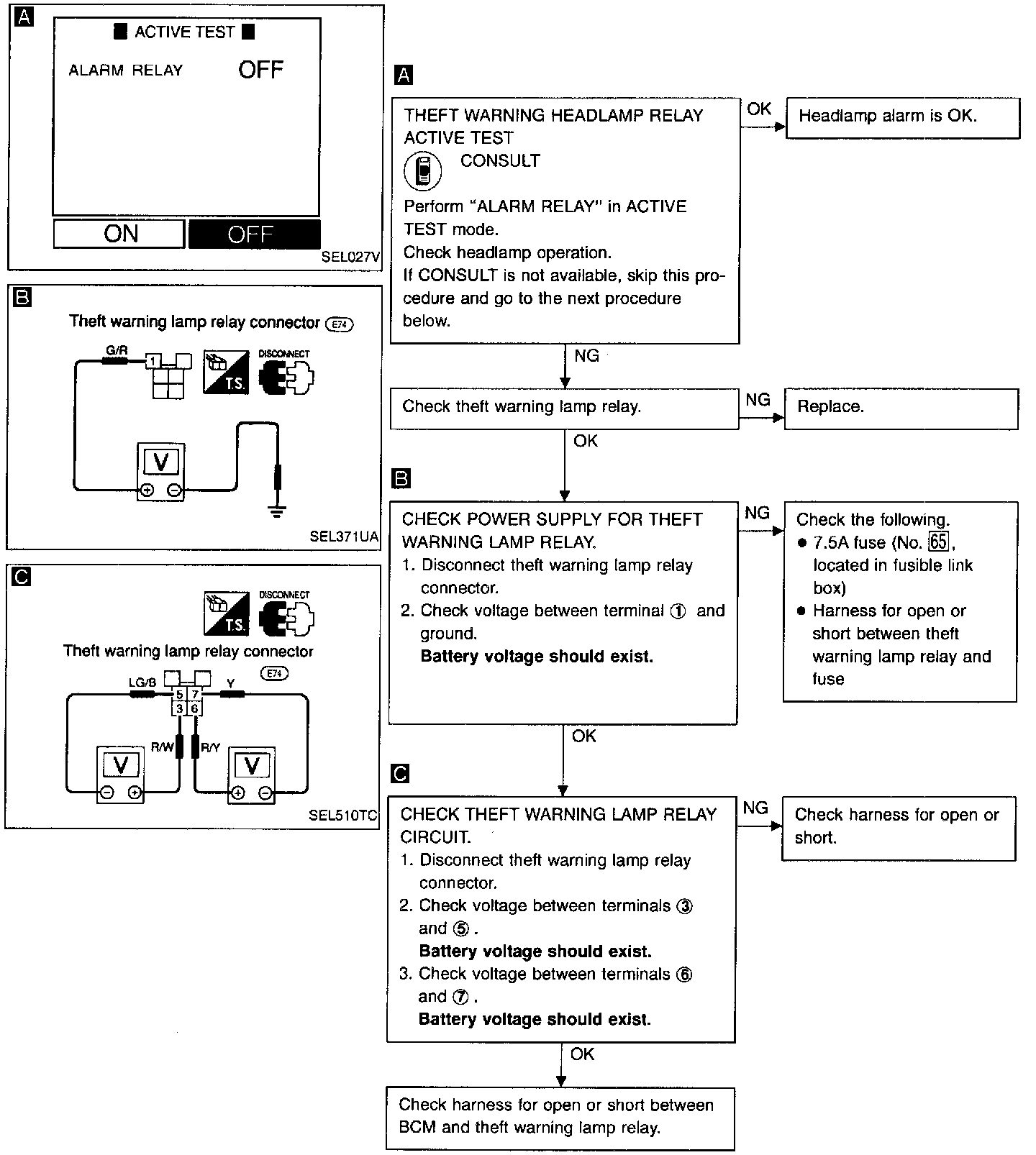

Diagnostic Procedure 7 (Head Alarm Check)

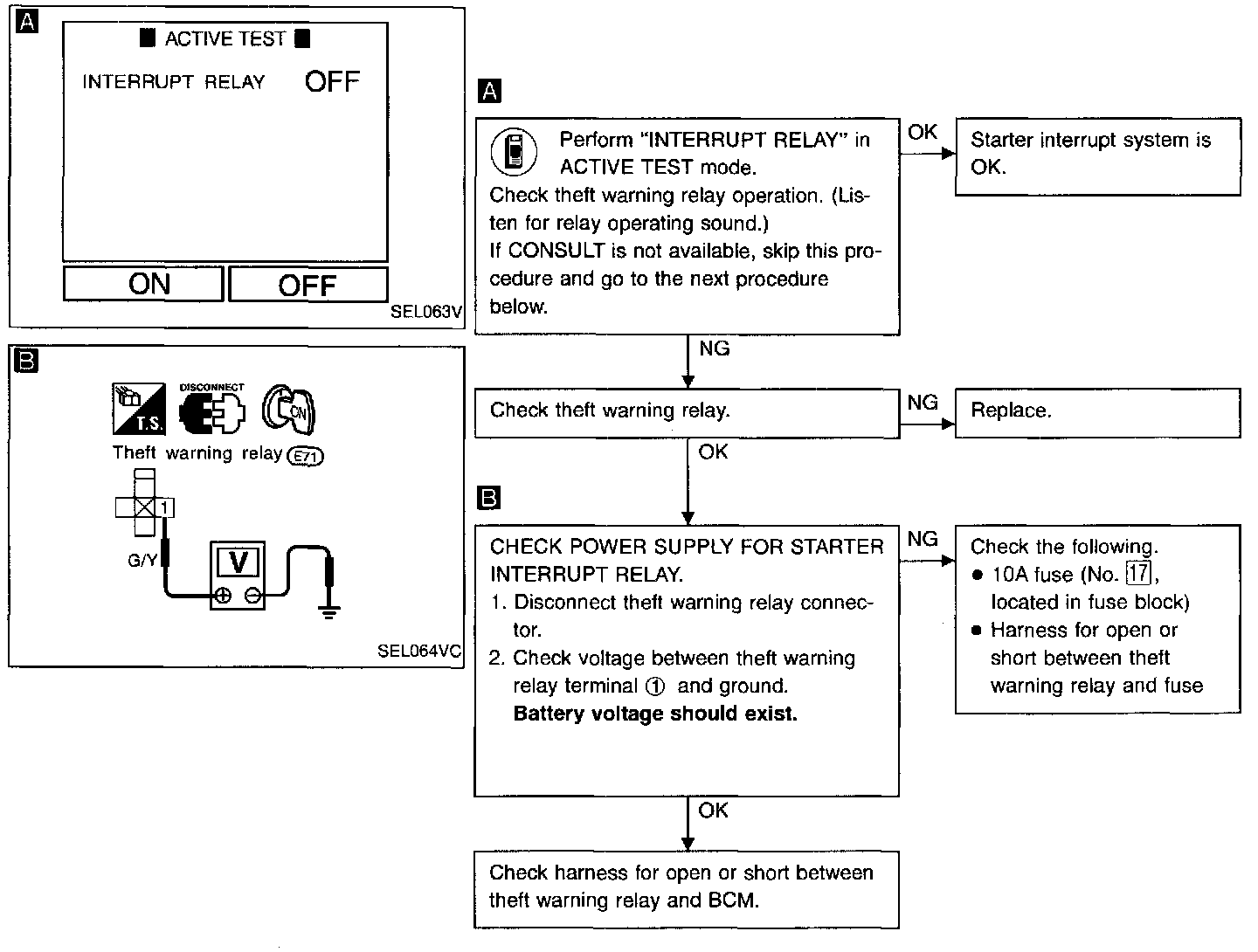

Diagnostic Procedure 8 (Starter Interrupt System Check)
