COMPONENT DESCRIPTION
The rear heated oxygen sensor (Rear HO2S), after three way catalyst, monitors the oxygen level in the exhaust gas.
Even if switching characteristics of the front heated oxygen sensor are shifted, the air fuel ratio is controlled to stoichiometric, by the signal from the rear heated oxygen sensor.
This sensor is made of ceramic zirconia. The zirconia generates voltage from approximately 1V in richer conditions to 0V in leaner conditions.
Under normal conditions the rear heated oxygen sensor is not used for engine control operation.
CONSULT REFERENCE VALUE IN DATA MONITOR MODE
Specification data are reference values.
ECM TERMINALS AND REFERENCE VALUE

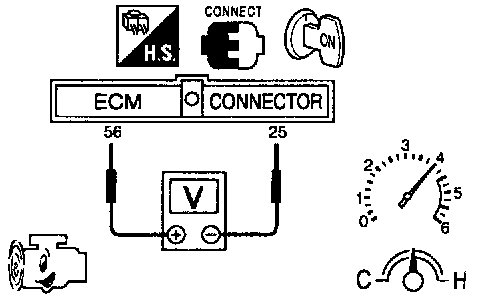

Specification data are reference values and are measured between each terminal and (25) (ECCS ground).
ON BOARD DIAGNOSIS LOGIC
The rear heated oxygen sensor has a much longer switching time between rich and lean than the front heated oxygen sensor. The oxygen storage capacity before the three way catalyst causes the longer switching time. To judge the malfunctions of rear heated oxygen sensor, ECM monitors whether the maximum voltage of the sensor is sufficiently high during the various driving condition such as fuel-cut.
DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE
CAUTION: Always drive vehicle at a sate speed.
NOTE:
- "COMPLETED" will appear on CONSULT screen when all tests "COND1", "COND2" and "COND3" are completed.
- If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.
TESTING CONDITION:
Never stop engine during this test. If the engine is stopped, reperform this test from step 2).
Always perform at a temperature of more than -10°C (14°F).
Procedure for COND1
With CONSULT
(1) Start engine and warm it up to normal operating temperature.
(2) Turn ignition switch "OFF" and wait at least 5 seconds.

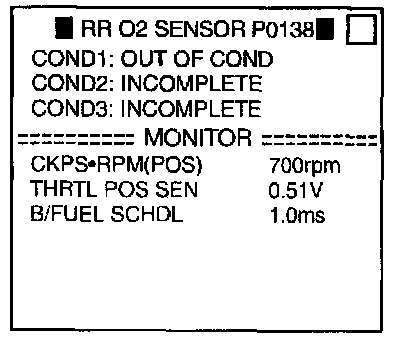

(3) Turn ignition switch "ON" and select "RR O2 SENSOR P0138" of "REAR O2 SENSOR" in "DTC WORK SUPPORT" mode with CONSULT.
(4) Touch "START".
(5) Start engine and let it idle for at least 10 seconds.
(6) Rev engine up to 2,000 rpm 2 or 3 times quickly under no load.

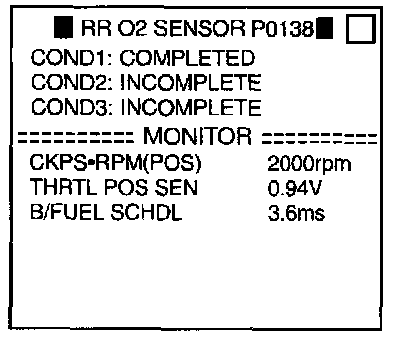

If "COMPLETED" appears on CONSULT screen, go to step 10).
If "COMPLETED" does not appear on CONSULT screen, go to the following step.

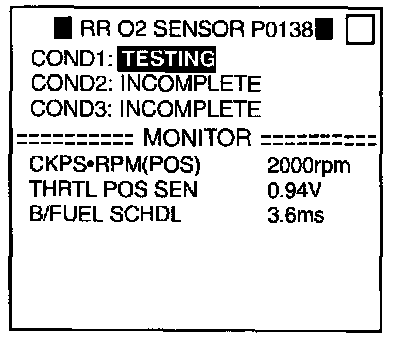

(7) When the following conditions are met, "TESTING" will be displayed at "COND1" on the CONSULT screen. Maintain the conditions continuously until "TESTING" changes to "COMPLETED". (It will take approximately 60 seconds.)
CKPS-RPM (POS): 1,400 - 2,700 rpm
Vehicle speed: 78 - 100 km/h (48 - 62 MPH)
B/FUEL SCHDL: 1.2 - 4.5 ms
Selector lever: Suitable position
NOTE:
- If "TESTING" is not displayed after 5 minutes, retry from step 2).
- If "COMPLETED" already appears at "COND2" on CONSULT screen before "Procedure for COND2" is conducted, it is unnecessary to conduct step 8).
Procedure for COND2

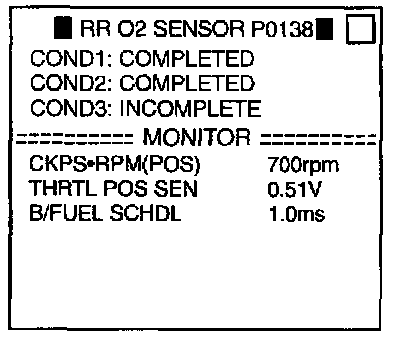

(8) While driving, release accelerator pedal completely with "OD" OFF (A/T models only) from the above condition [step 7] until "INCOMPLETE" at "COND2" on CONSULT screen is turned to "COMPLETED". (It will take approximately 4 seconds.)
NOTE:
- If "TESTING" is not displayed after 5 minutes, retry from step 2).
- It "COMPLETED" already appears at "COND3" on CONSULT screen before "Procedure for COND3" is conducted, it is unnecessary to conduct step 9).
Procedure for COND3
(9) Stop vehicle and let it idle until "INCOMPLETE" of "COND3" on CONSULT screen has turned to "COMPLETED". (It will take a maximum of approximately 6 minutes.)
NOTE: If "TESTING" is not displayed after 5 minutes, retry from step 2).
(10) Make sure that "OK" is displayed afier touching "SELF-DIAG RESULTS".
If "NG" is displayed, refer to "DIAGNOSTIC PROCEDURE".
Electrical Diagrams
Circuit Connectors
1 Of 2:
2 Of 2:
DIAGNOSTIC PROCEDURE
COMPONENT INSPECTION
Rear heated oxygen sensor
With CONSULT
(1) Start engine and warm it up to normal operating temperature.

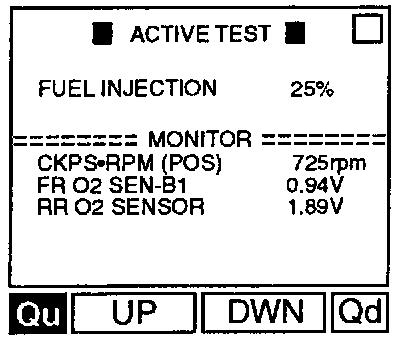

(2) Select "FUEL INJECTION" in "ACTIVE TEST" mode, and select "RR O2 SENSOR" as the monitor item with CONSULT.
(3) Check "RR O2 SENSOR" at idle speed when adjusting "FUEL INJECTION" to ±25%.
"RR O2 SENSOR" should be above 0.48V at least once when the "FUEL INJECTION" is +25%.
"RR O2 SENSOR" should be below 0.43V at least once when the "FUEL INJECTION" is -25%.
