Self-Diagnostic Results With CONSULT

CONSULT INSPECTION PROCEDURE
1. Turn ignition switch "OFF".

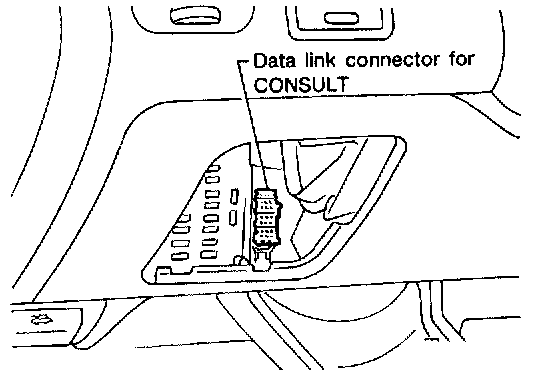

2. Connect "CONSULT" to Data link connector.
3. Turn ignition switch "ON".

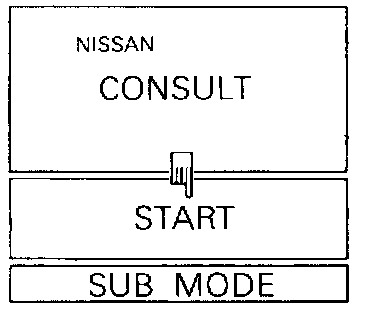

4. Touch "START".

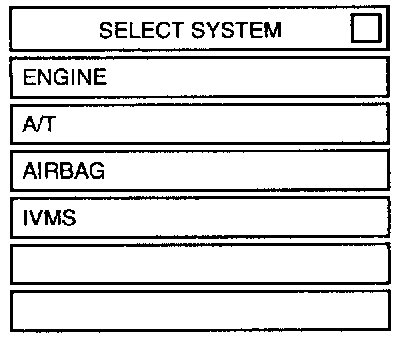

5. Touch "IVMS".





6. Touch "DOOR LOCK".





^ DATA MONITOR, ACTIVE TEST and SELF-DIAGNOSIS are available for the power door lock.

PERFORM SELF-DIAGNOSIS

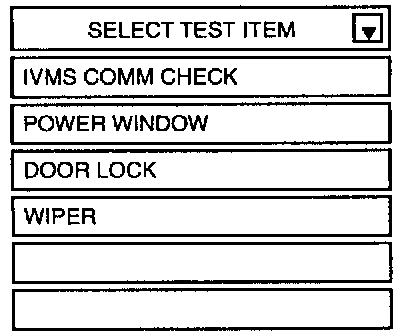

1. Choose "DOOR LOCK" in SELECT TEST ITEM.

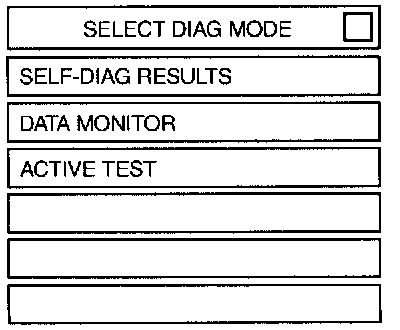

2. Touch "SELF-DIAG RESULTS" of SELECT DIAG mode.

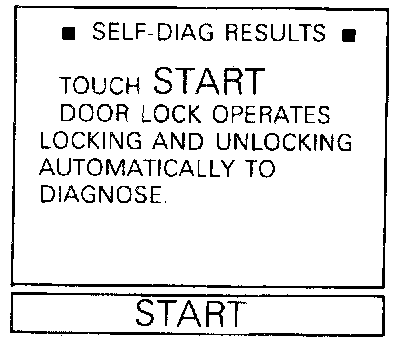

3. Touch "START".

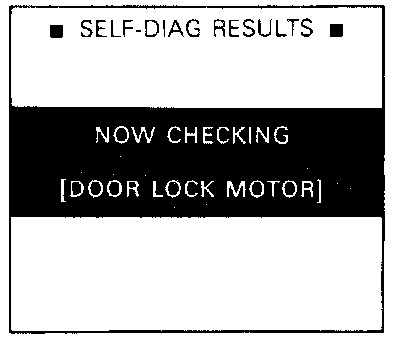

4. Start self-diagnosis on all door motors. Lock and unlock all doors by operating door motors automatically.

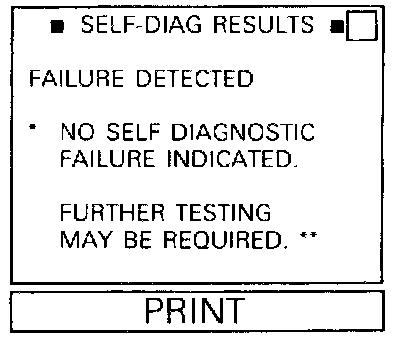

^ When no malfunction is detected.

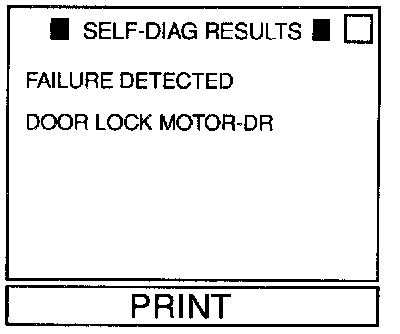

^ When malfunction is detected.

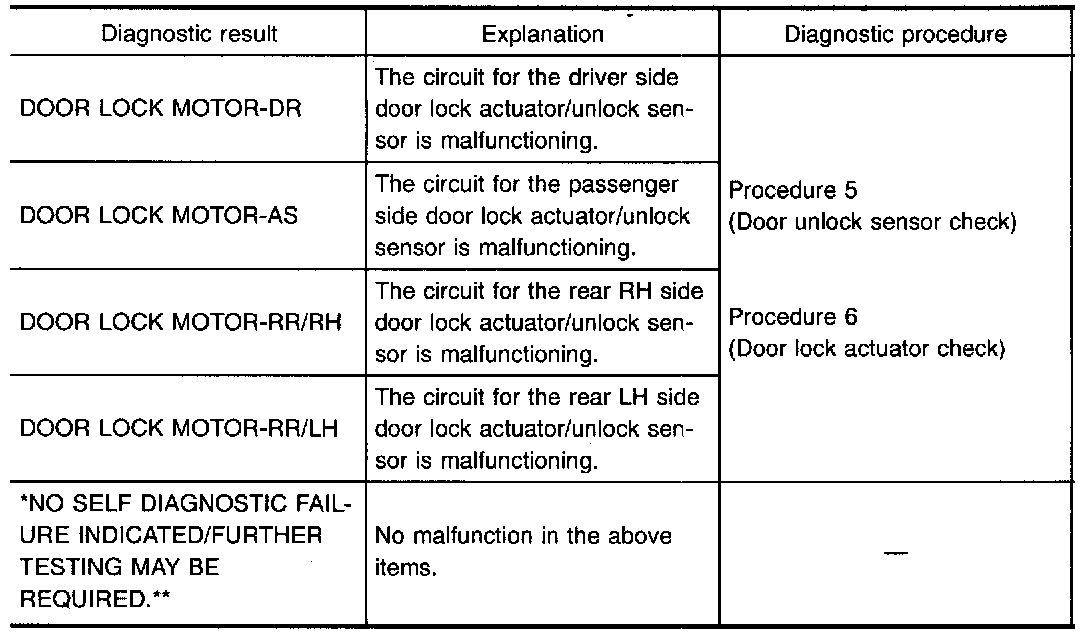

Malfunction Code Table
