Diagnostic Test Procedures

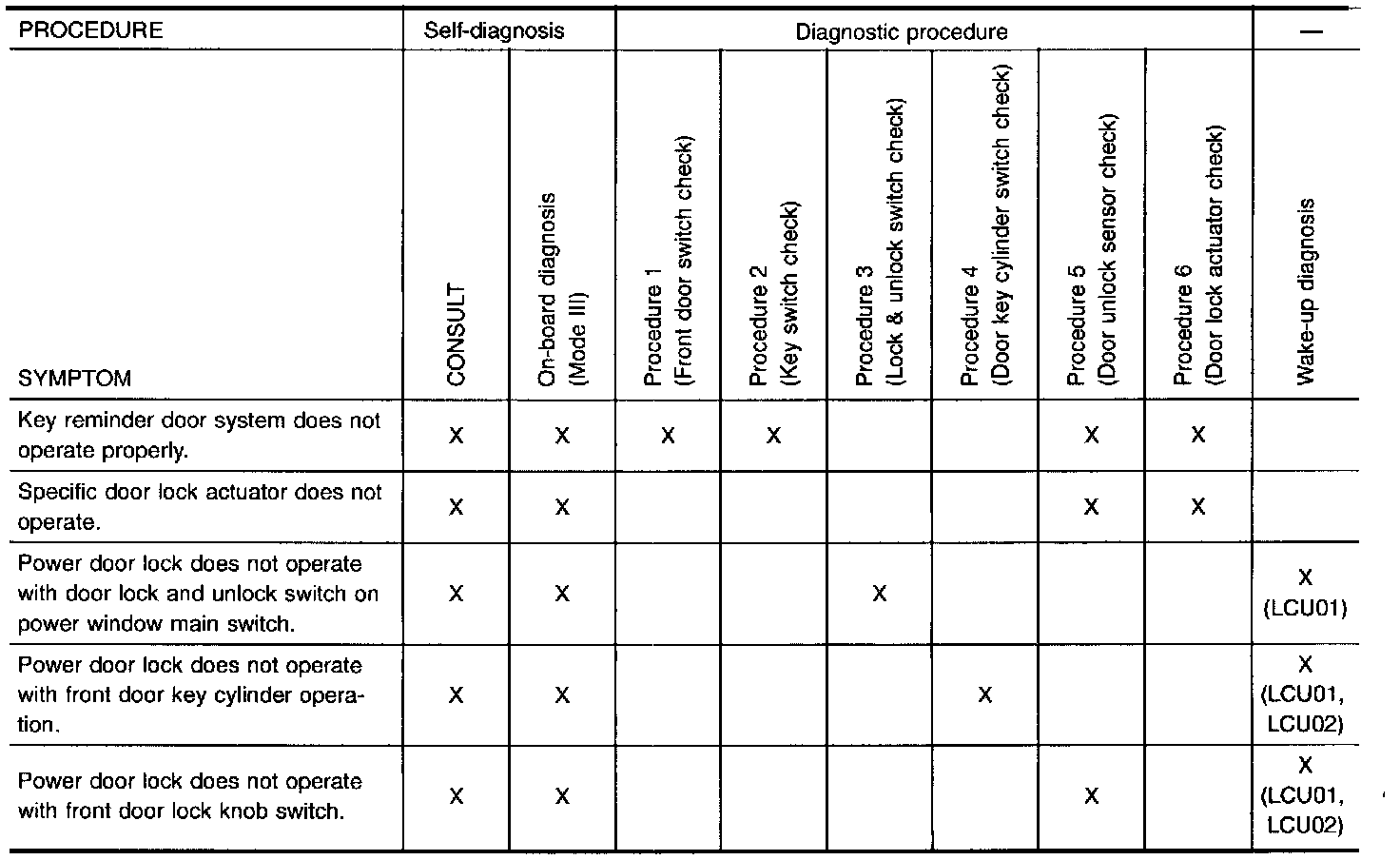

Symptom Chart

DIAGNOSTIC PROCEDURES

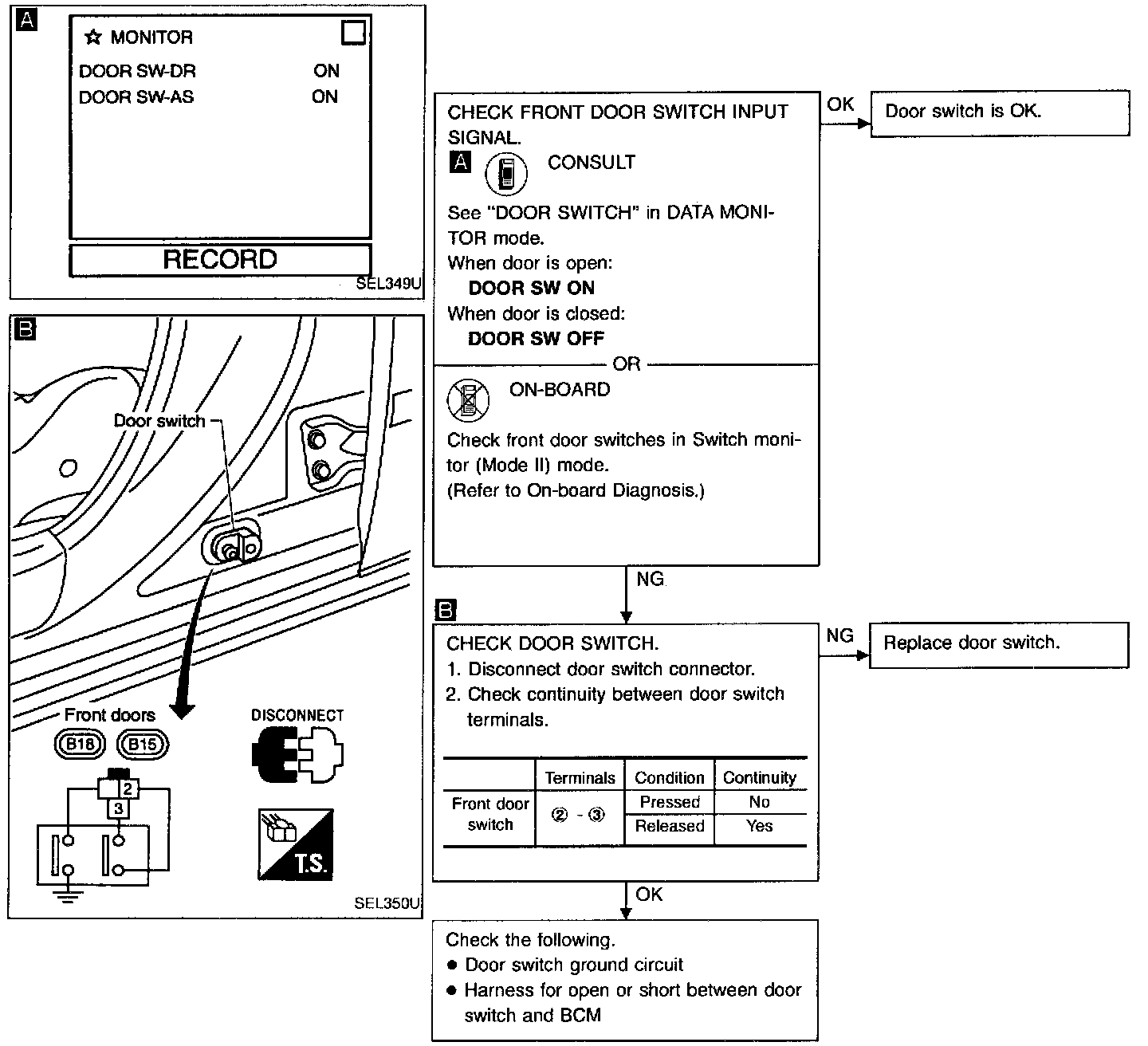

Diagnostic Procedure 1 (Front Door Switch Check)

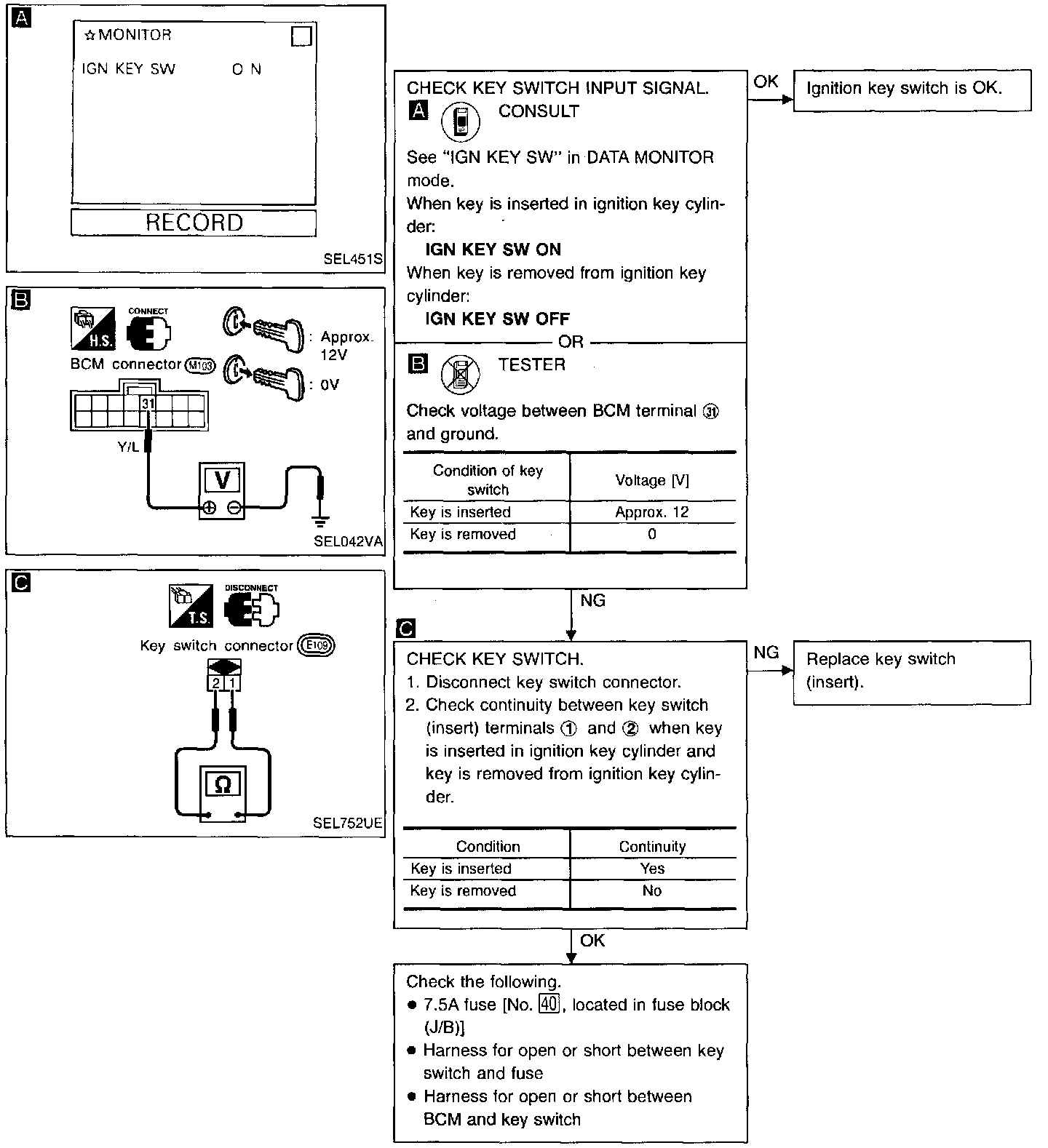

Diagnostic Procedure 2 [Key Switch (Insert) Check]

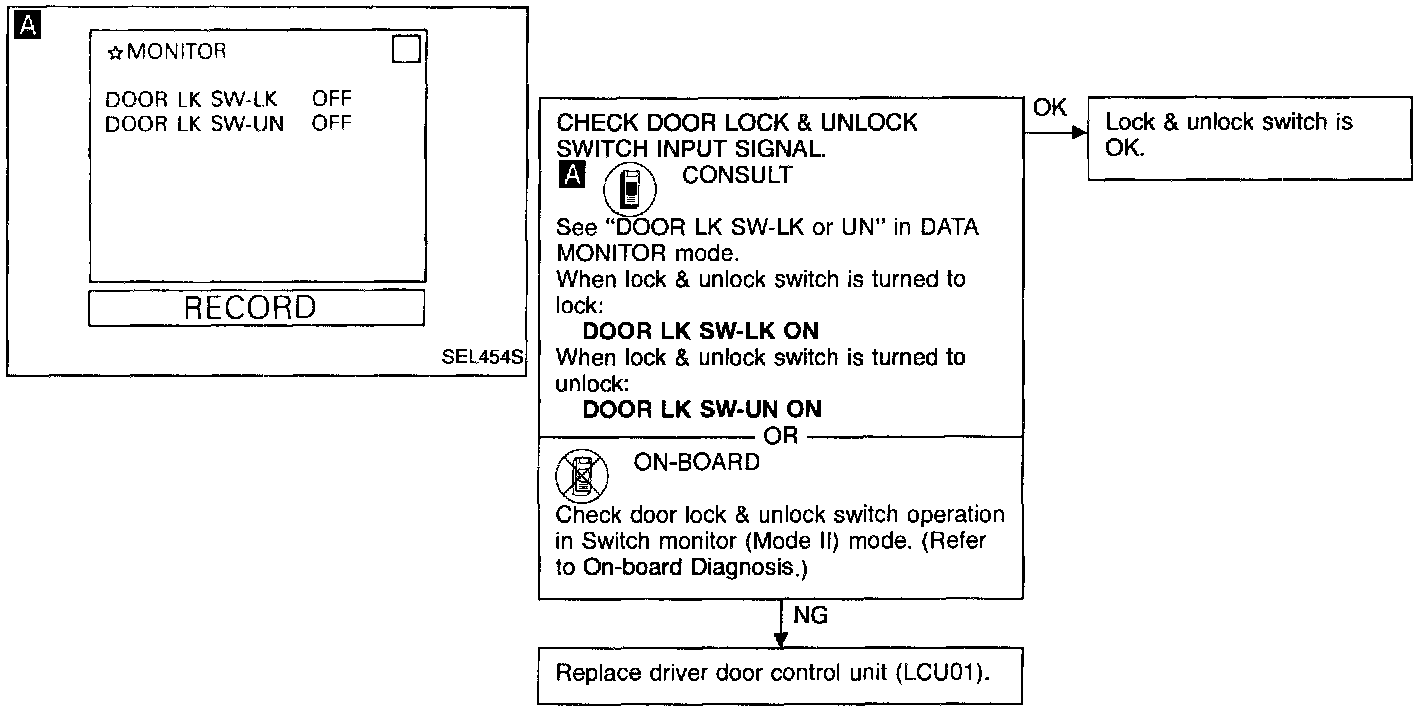

Diagnostic Procedure 3 (Lock & Unlock Switch Check)

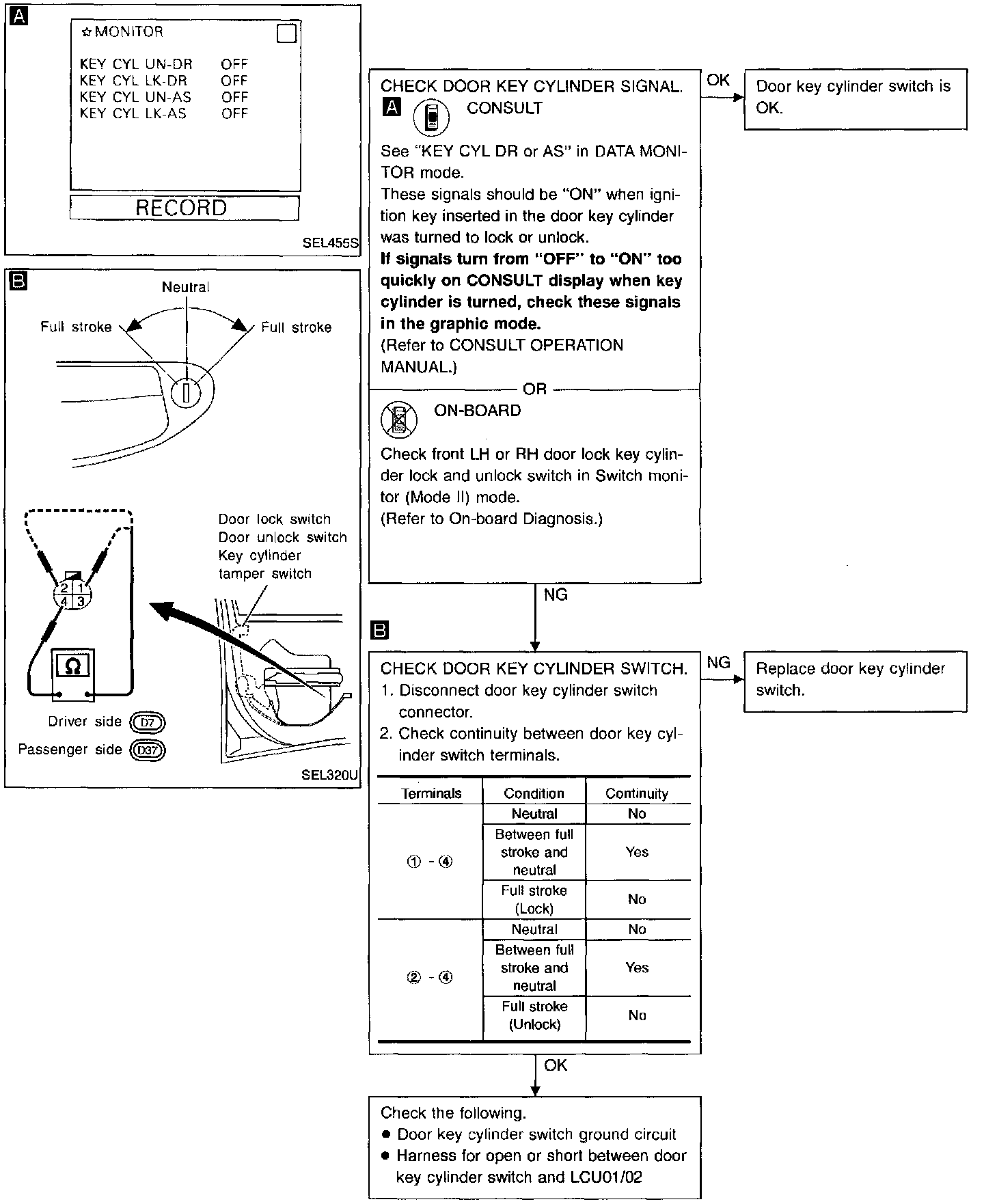

Diagnostic Procedure 4 (Door Key Cylinder Switch Check)

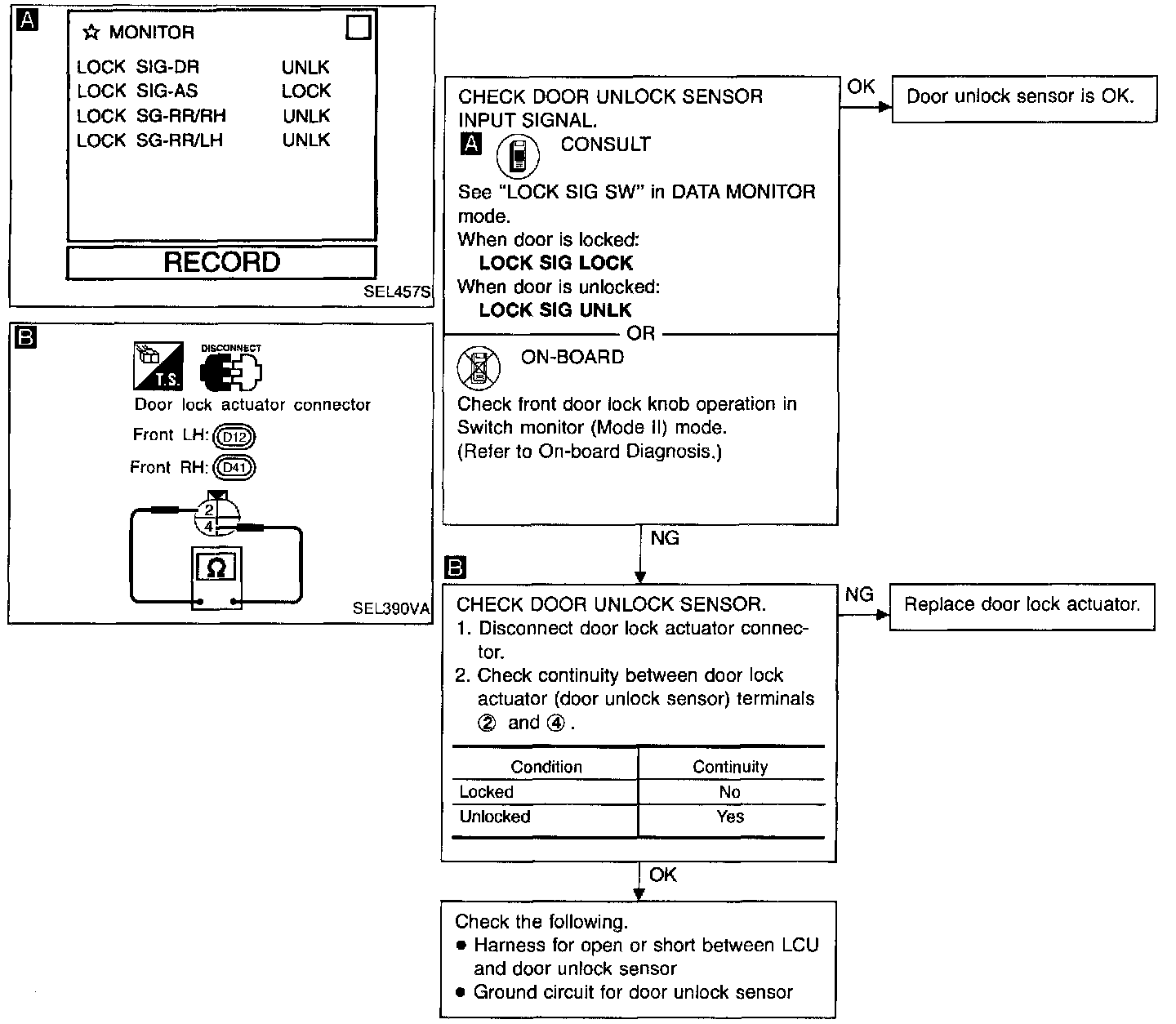

Diagnostic Procedure 5 (Door Unlock Sensor Check)

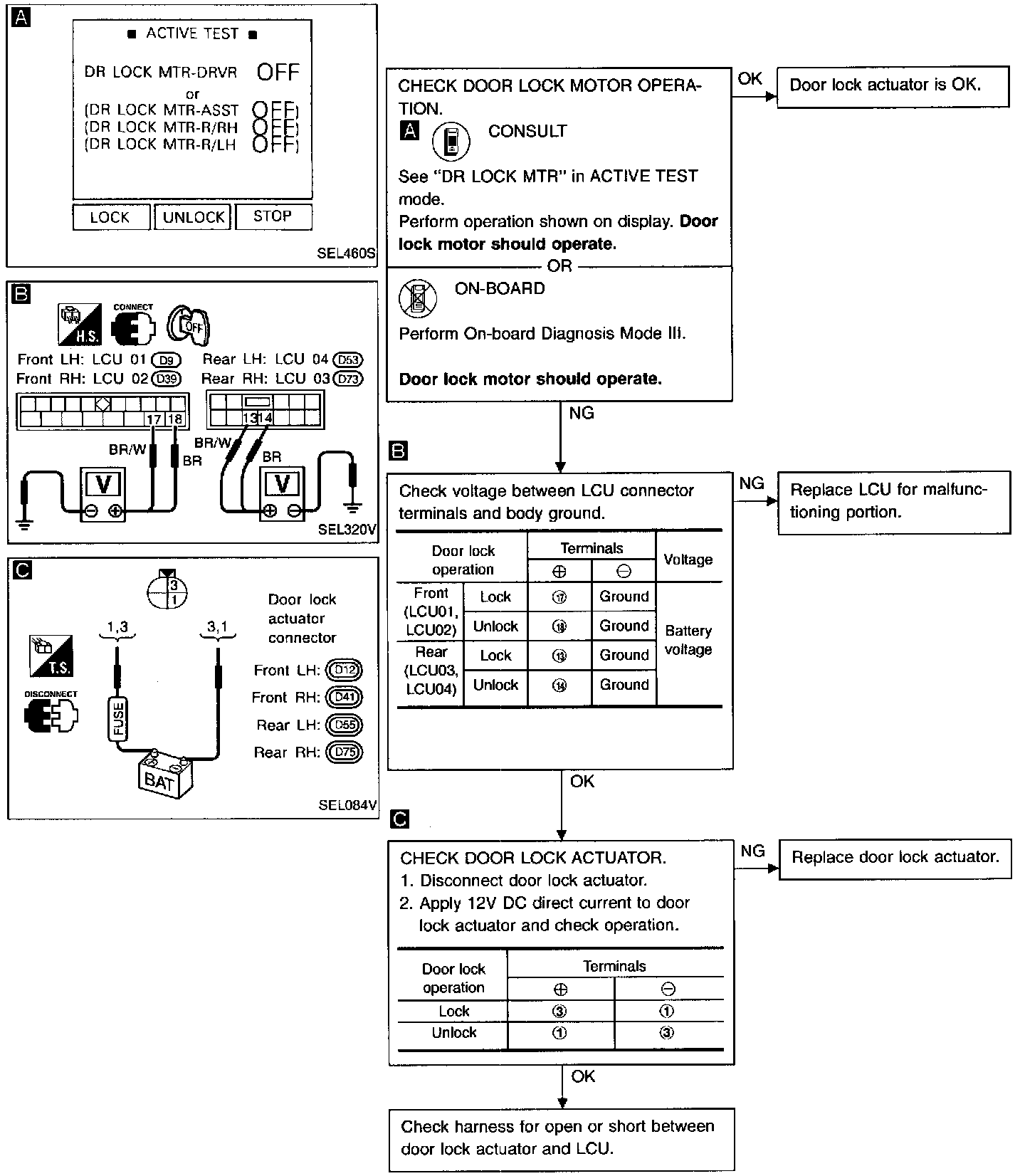

Diagnostic Procedure 6 (Door Lock Actuator Check)
