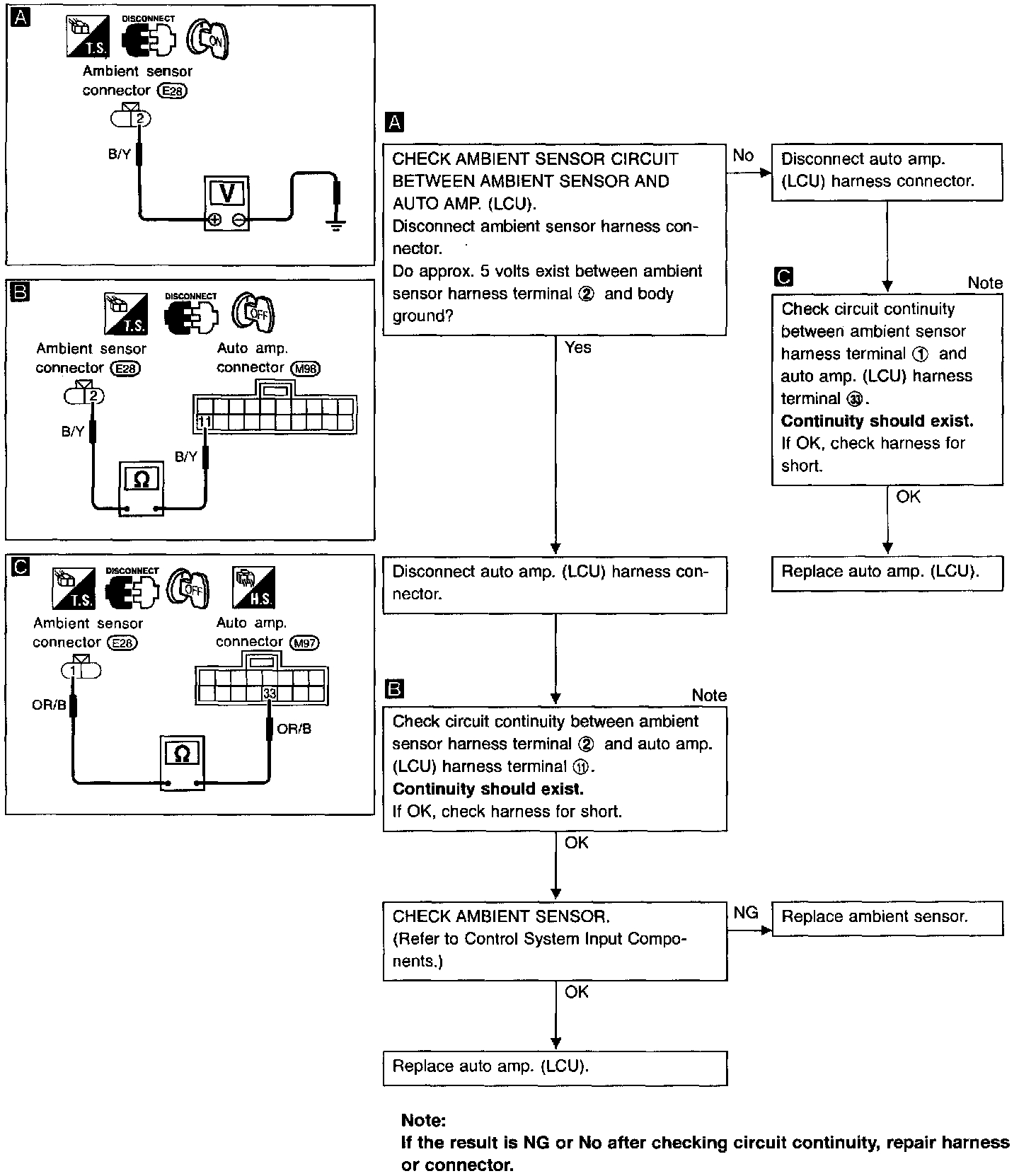

Diagnostic Procedure 1, Ambient Temperature Sensor

Diagnostic Procedure 1

SYMPTOM: Ambient sensor circuit is open or shorted. (21 or -21 is Indicated on display as a result of conducting Self-diagnosis STEP 2.)
