Cruise Control System

CONSULT DIAGNOSIS

1. Turn off ignition switch.

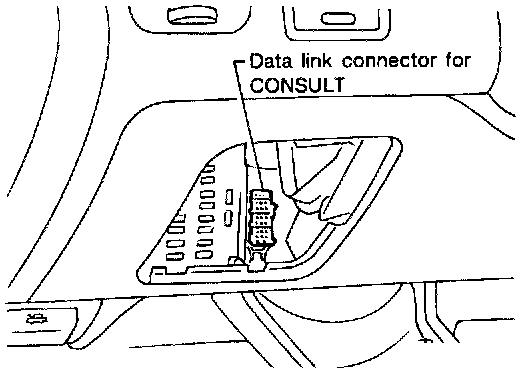

2. Connect "CONSULT" to data link connector for CONSULT.




3. Turn on ignition switch.
4. Turn on Automatic Speed control device (ASCD) main switch.
5. Touch START (on CONSULT display).
6. Touch ASCD.

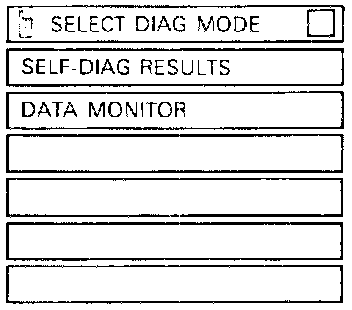

7. Touch SELF-DIAG RESULTS.

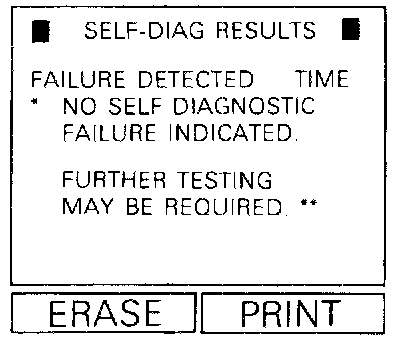

^ Self-diagnostic results are shown on display.




8. Touch DATA MONITOR.

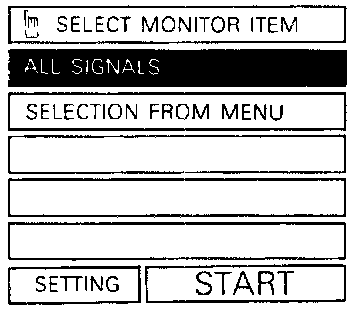

^ Touch START.

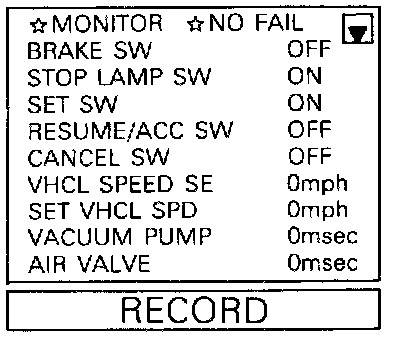

^ Data monitor results are shown on display.

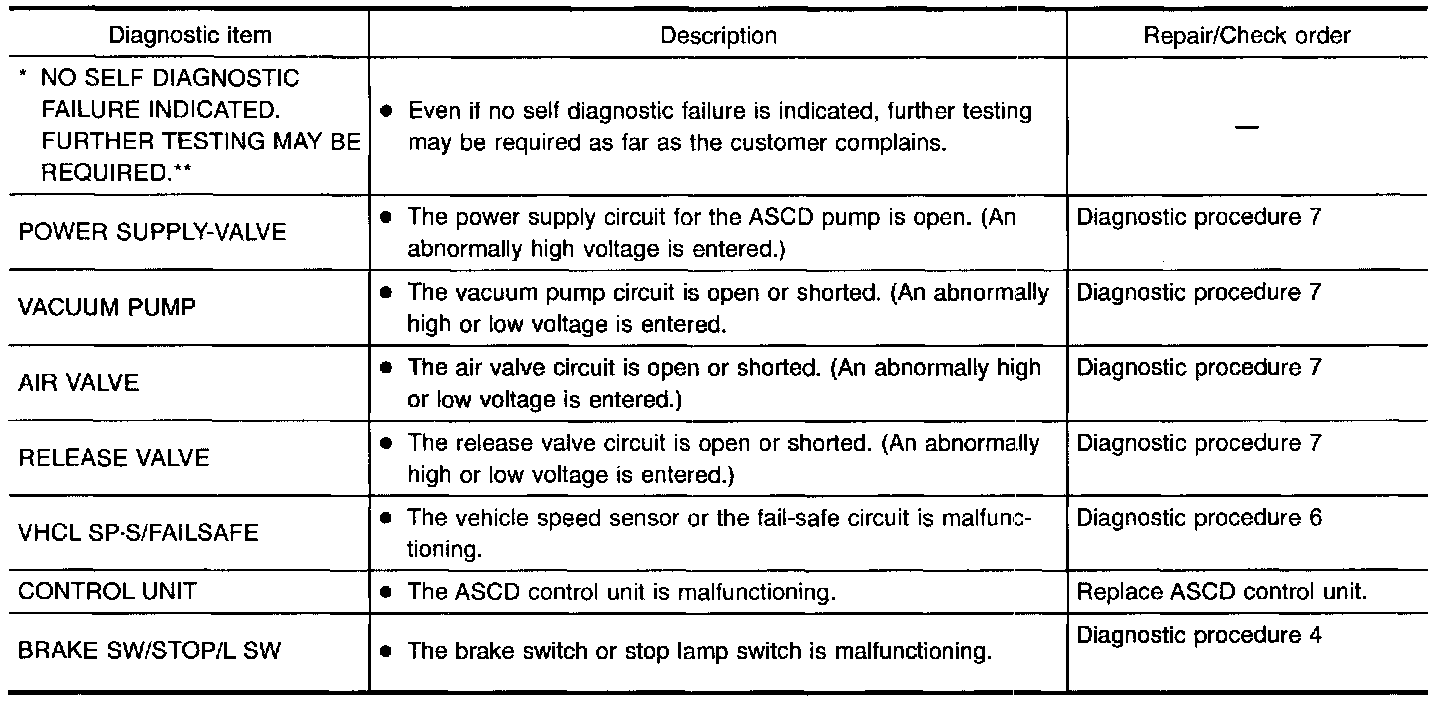

Self-Diagnostic Results

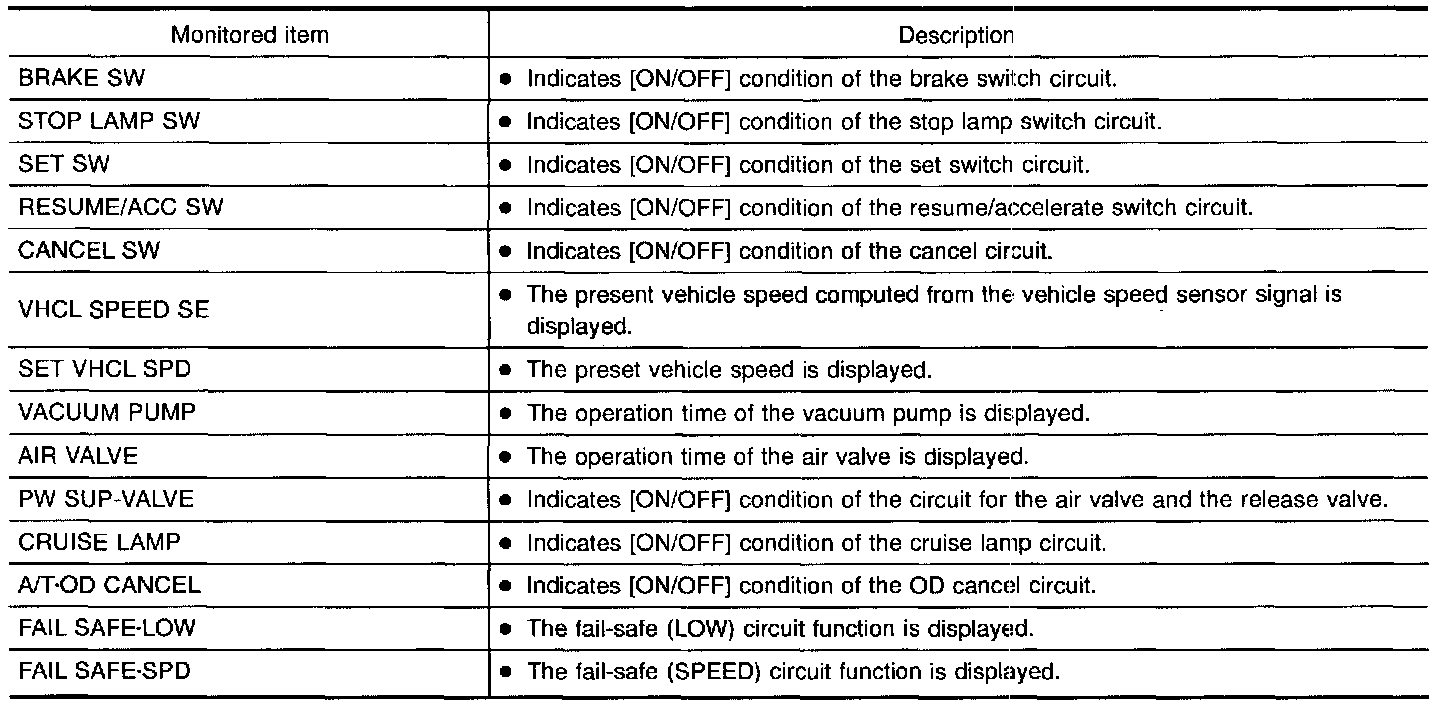

Data Monitor

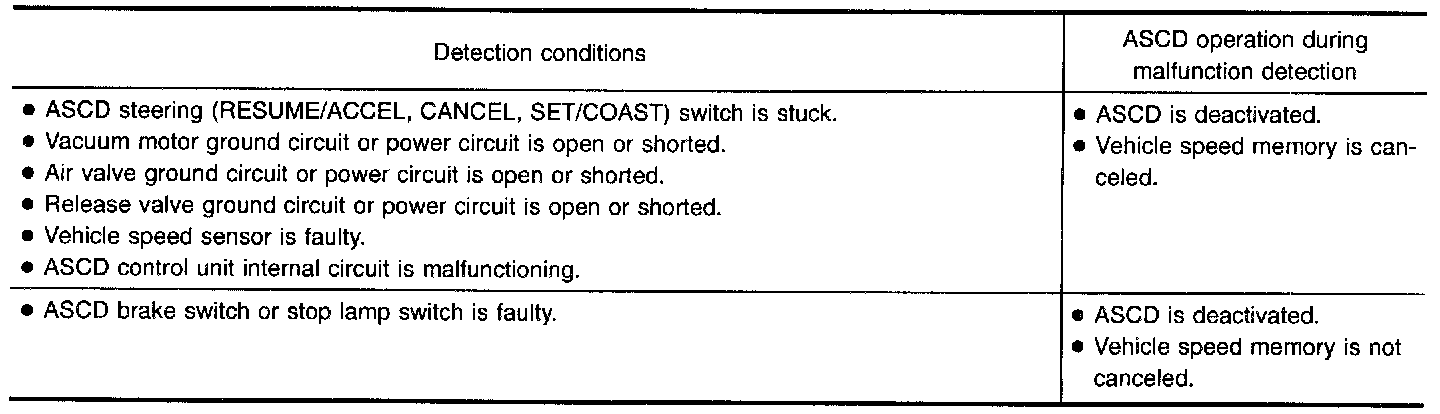

Malfunction Detection Conditions
