Diagnostic Procedure

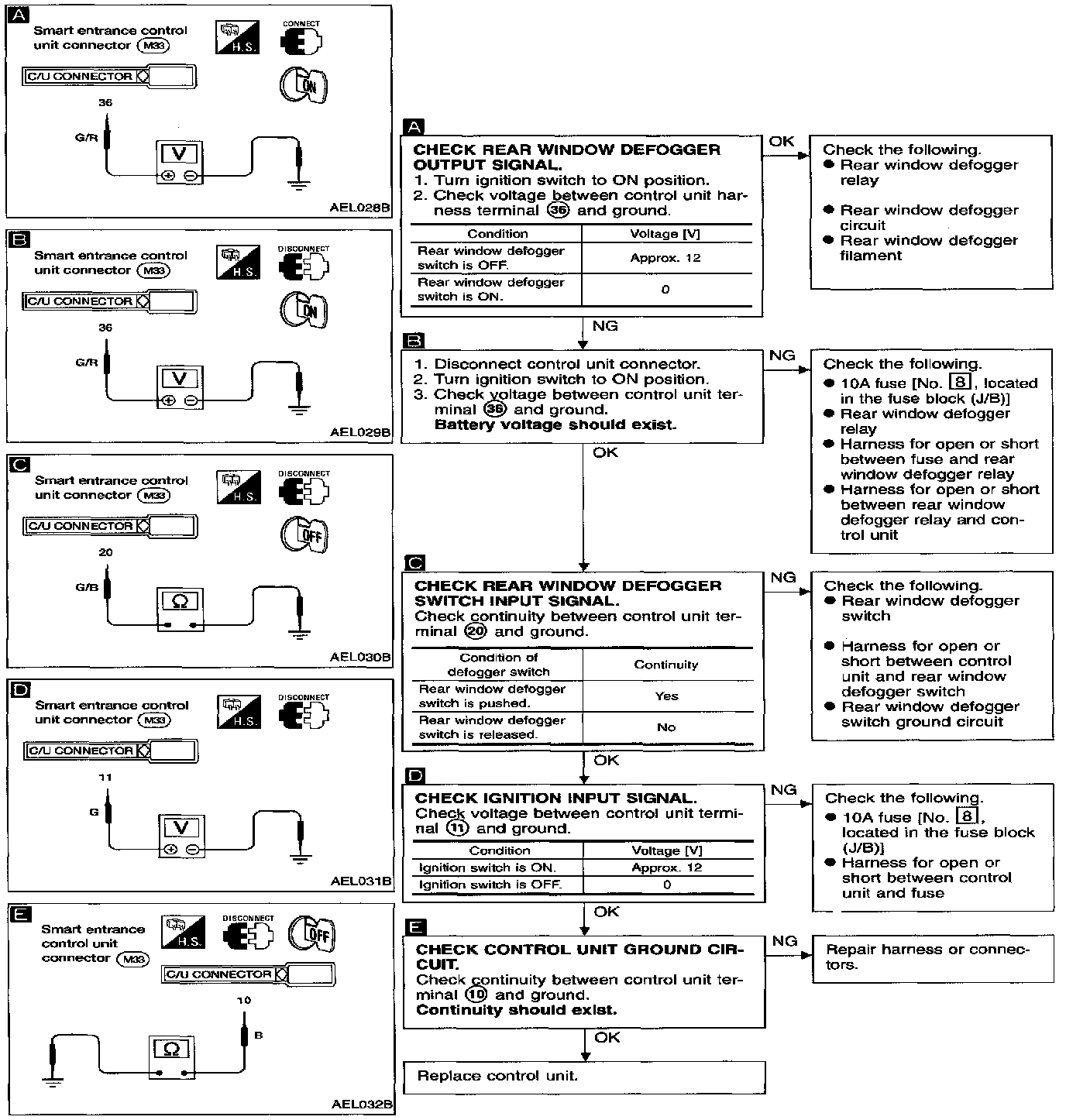

WITH POWER DOOR LOCKS





SYMPTOM: Rear window defogger does not activate, or does not go off after activating.

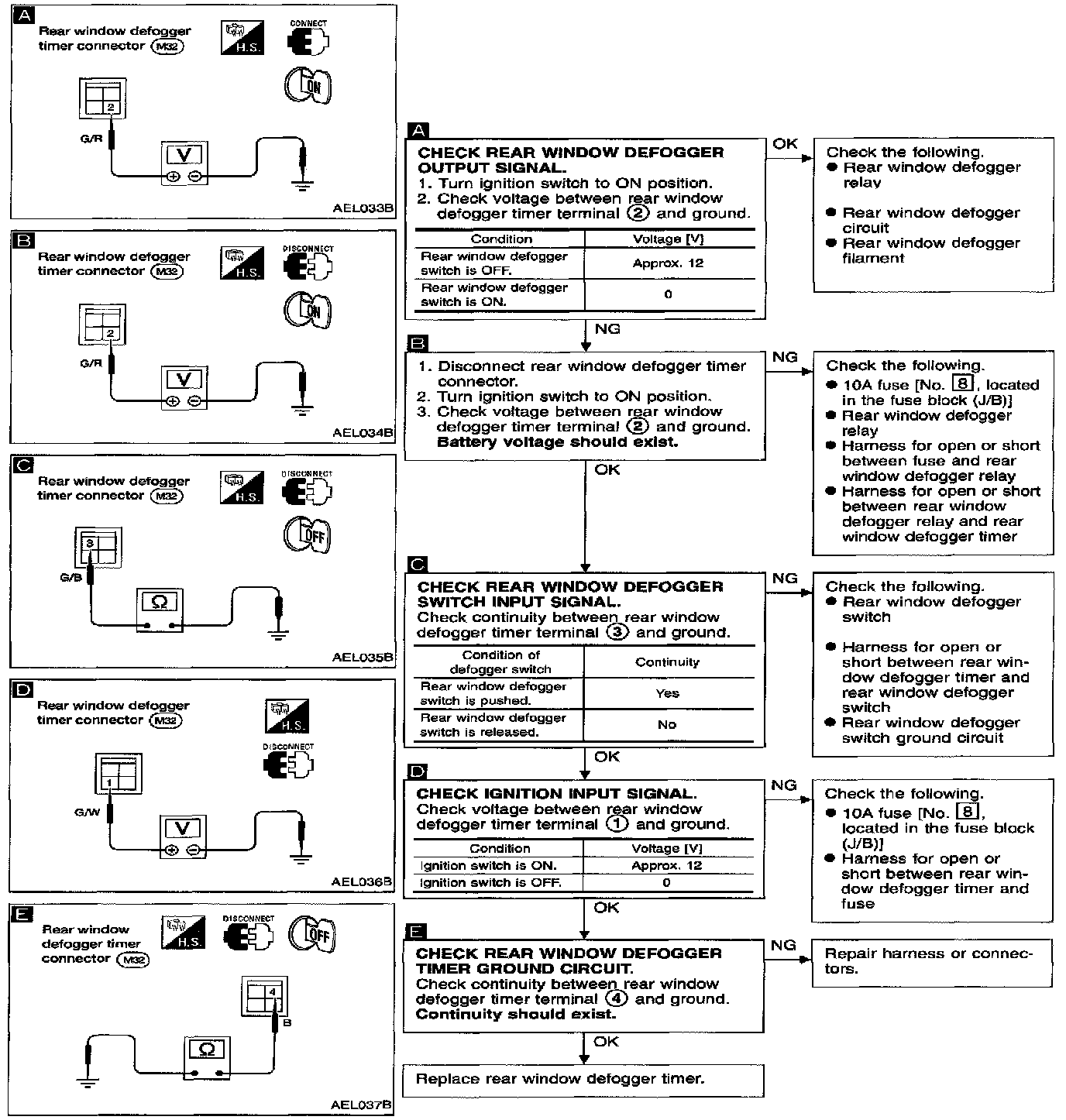

WITHOUT POWER DOOR LOCKS





SYMPTOM: Rear window defogger does not activate, or does not go off after activating.
