Home >> Nissan-Datsun >> 1998 >> Altima XE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Windows and Glass >> Rear Defogger >> Diagrams >> Electrical Diagrams

Electrical Diagrams

MODELS WITH POWER DOOR LOCKS

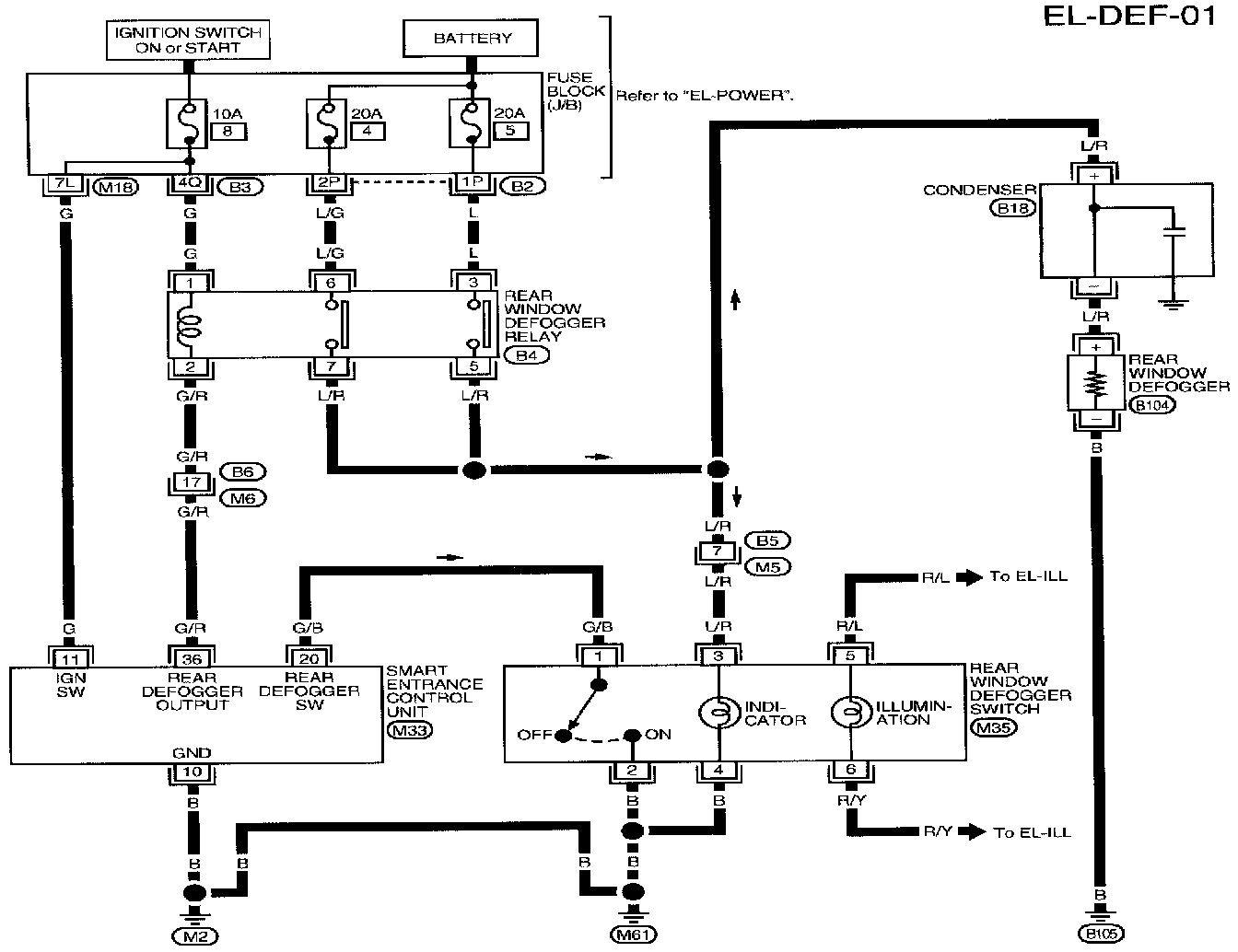

Circuit Diagram

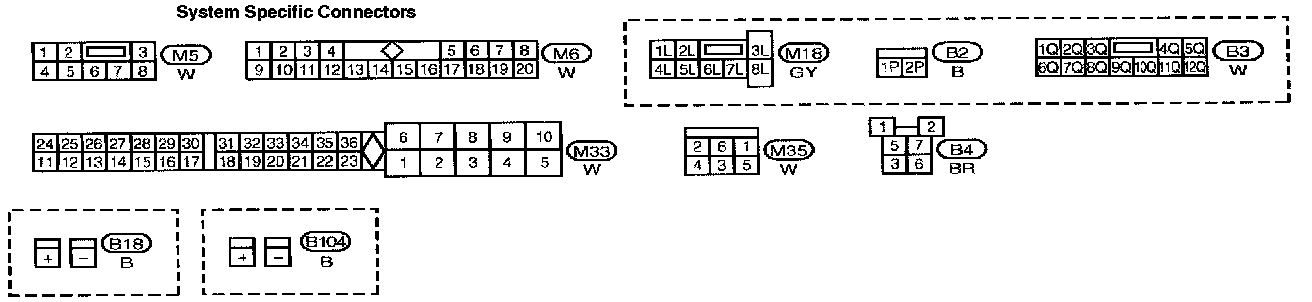

Circuit Connector

MODELS WITHOUT POWER DOOR LOCKS

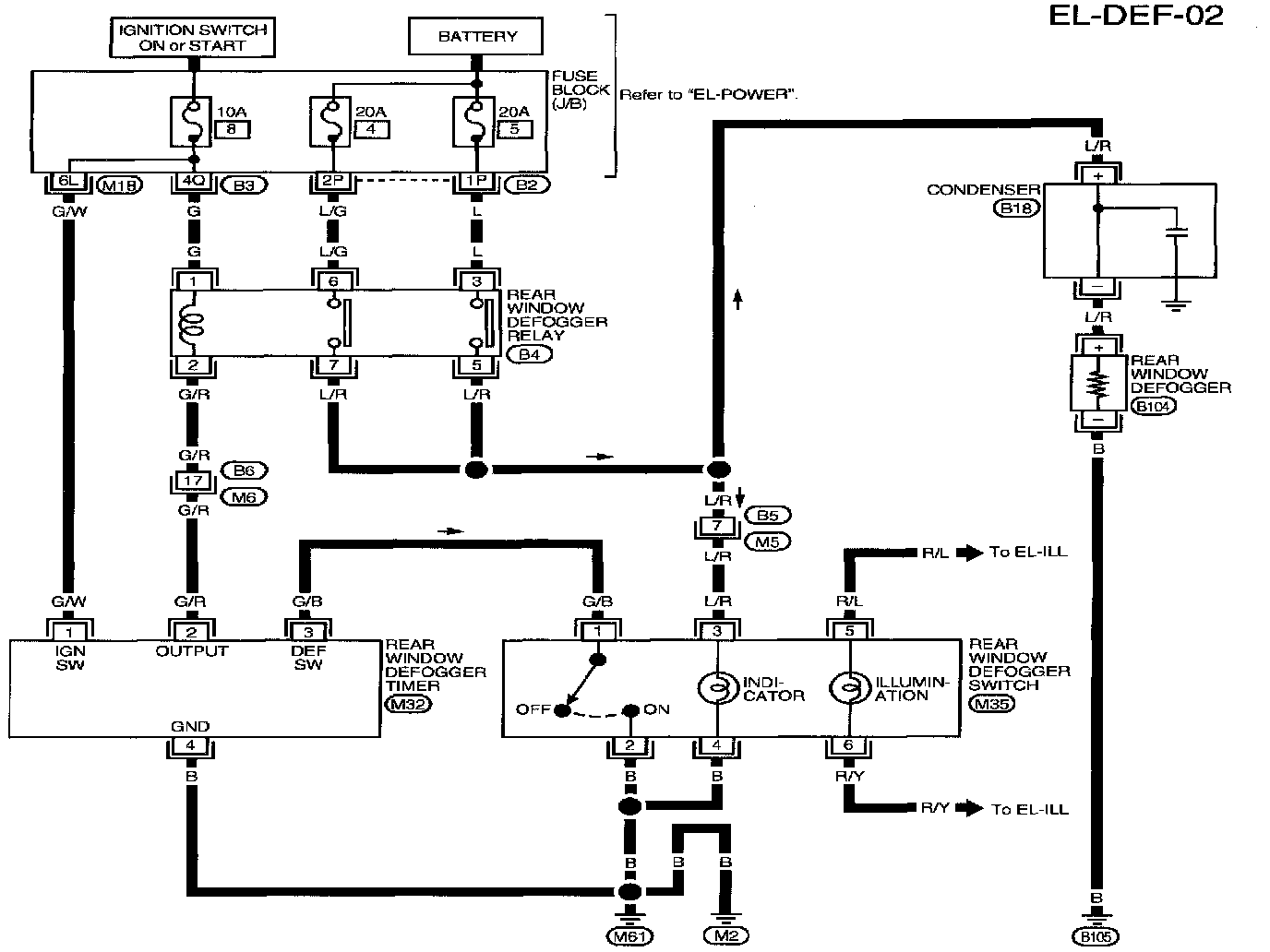

Circuit Diagram

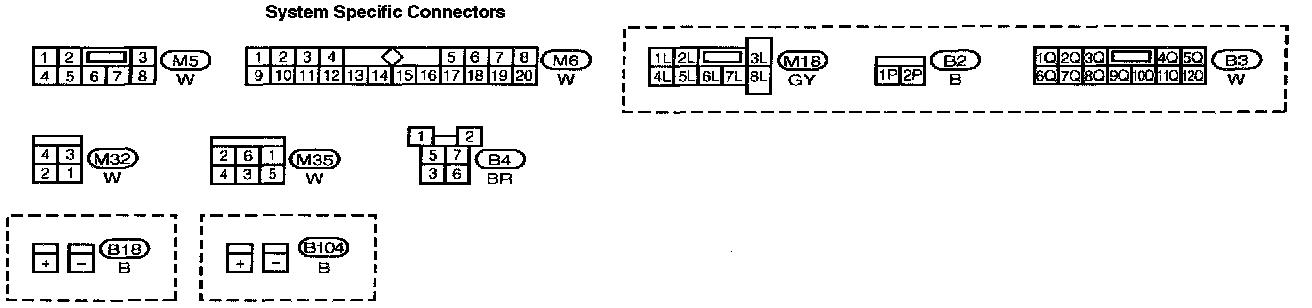

Circuit Connector
