M/T Model Wiring Diagram

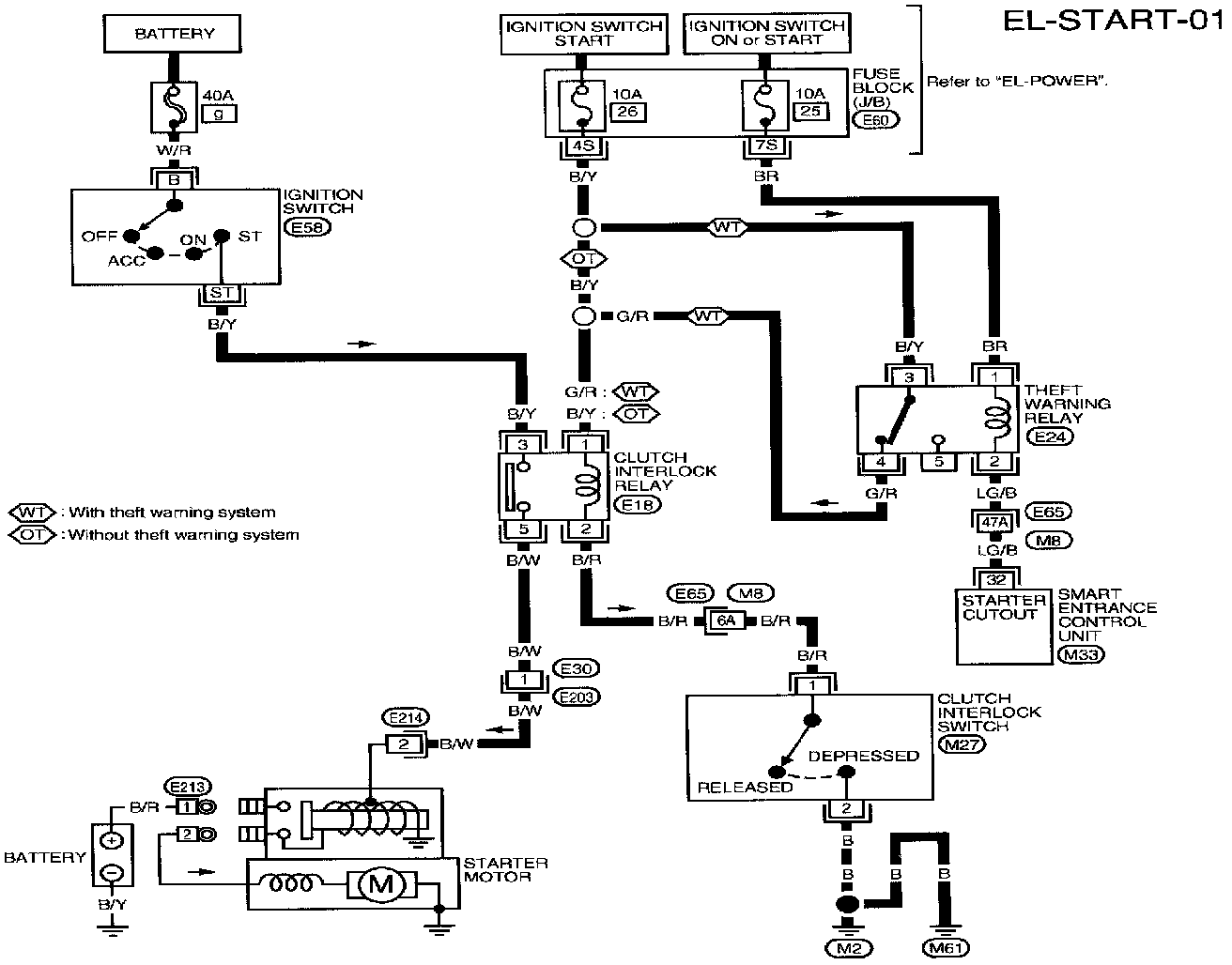

Circuit Diagrams

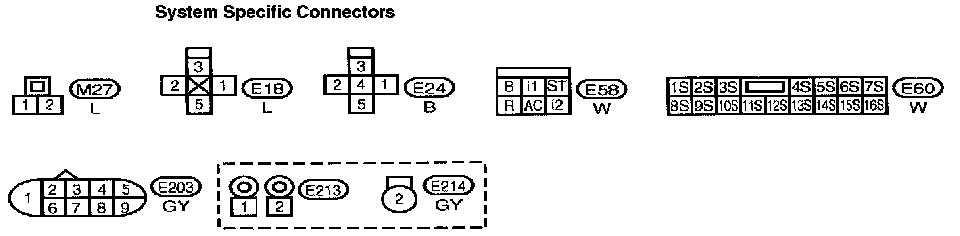

Circuit Connectors





Main Harness And Engine Room Terminal Arrangements





M33 Terminal Arrangement
