Blower Motor Switch: Service and Repair

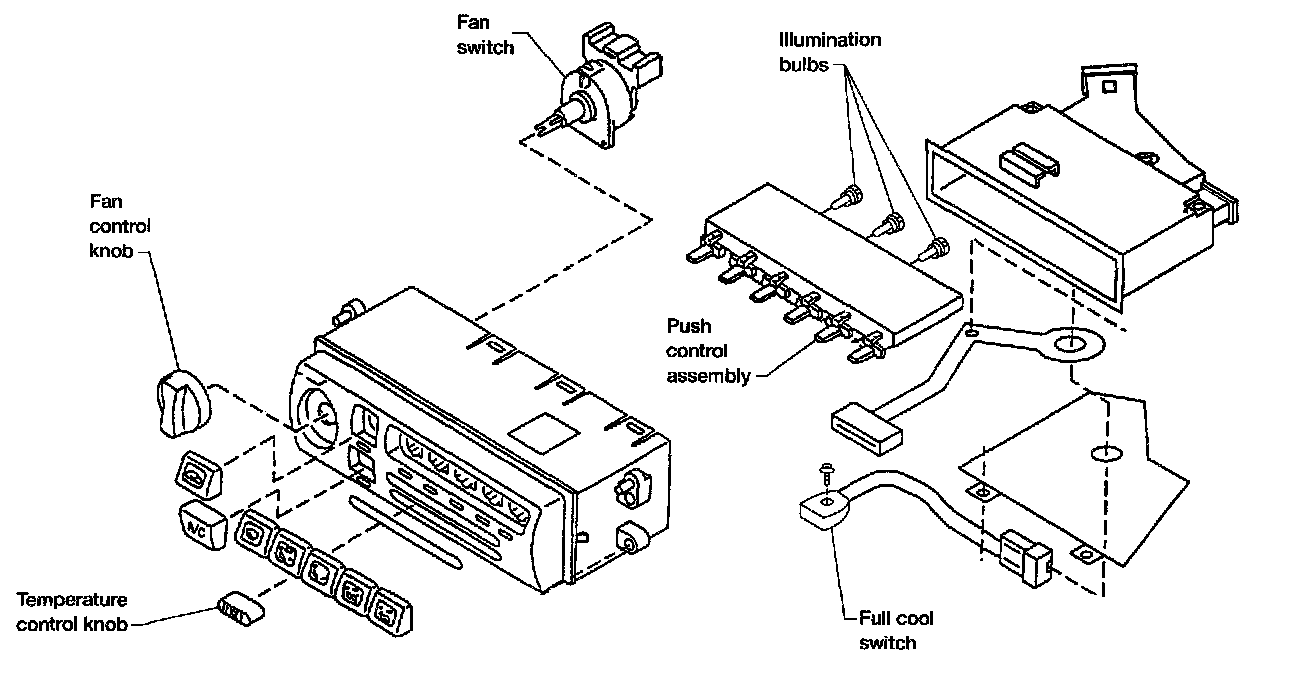

REMOVAL






1. Remove A/C & Heat control.

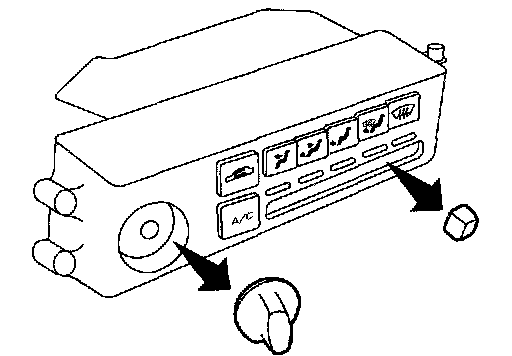

2. Remove fan control knob and temperature control knob.
Wrap knobs with a cloth and pull in direction as shown at left, be careful not to scratch knob during removal.

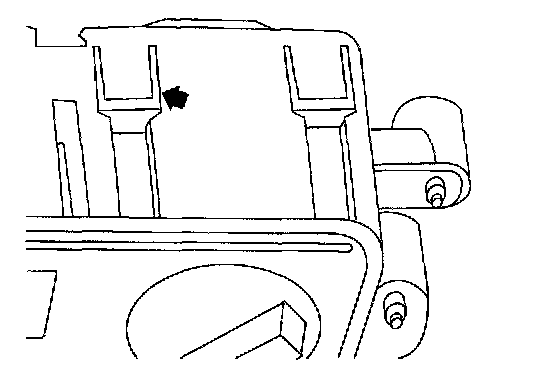

3. Remove fan switch by lifting tabs with a small, flat-bladed screwdriver.

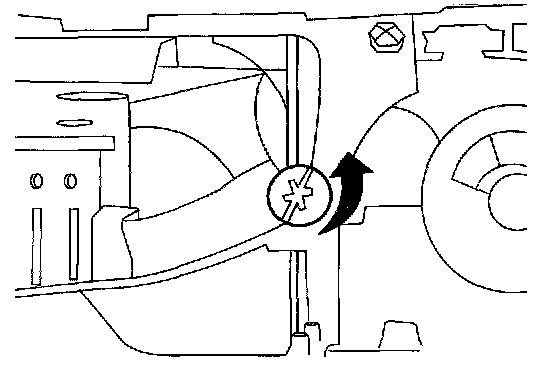

4. Twist illumination bulbs counterclockwise and lift out.

INSTALLATION
Installation is the reverse order of removal.
