Removal

REMOVAL

CAUTION:
^ Before servicing SRS, turn the ignition switch OFF, disconnect both battery cables and wait for at least 3 minutes.
^ Always work from the side of an air bag module.

1. Remove glove box assembly.

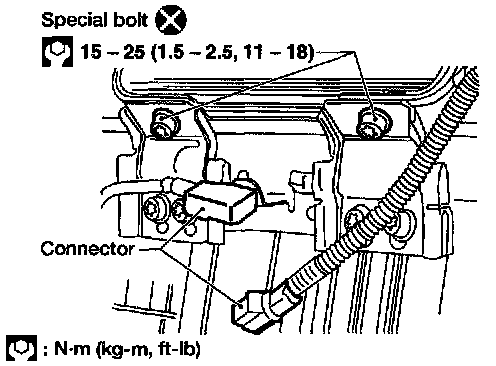

Front Passenger Air Bag Module - Removal:

2. Disconnect passenger air bag module connector.
3. Remove RH upper knee protector.
4. Remove RH side ventilator duct.
5. Using the TAMPER RESISTANT TORX (Size T50), remove two special bolts.

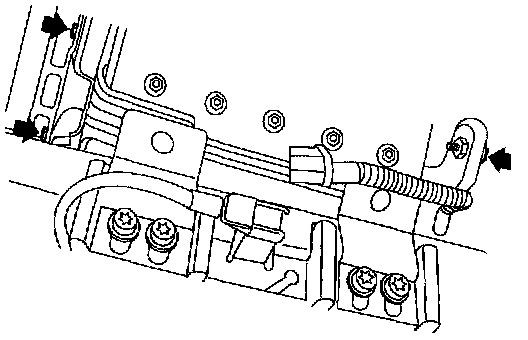

Front Passenger Air Bag Module - Removal:

6. Remove three mounting bolts.

Front Passenger Air Bag Module - Removal:

7. Remove air bag module by releasing the clips from the top of the instrument panel.
^ Air bag module is heavy and should be supported using both hands during removal.

CAUTION:
^ Always place air bag module with pad side facing upward.
^ Do not attempt to disassemble air bag module.
^ The special bolts are coated with bonding agent. Do not use old bolts after removal; replace with new coated bolts.
^ Do not insert any foreign objects (screwdriver, etc.) into air bag module connector.

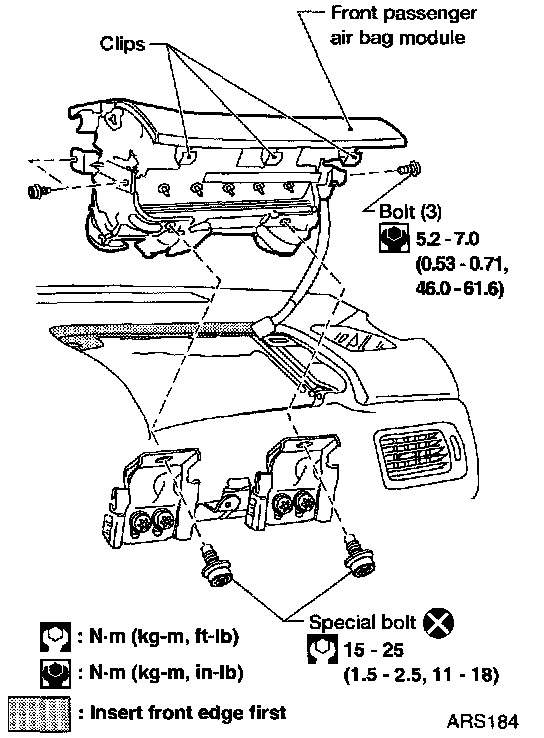

Front Passenger Air Bag Module - Removal:

^ Do not drop or impact air bag module. If any portion is deformed or cracked, replace the module.
^ Do not expose the air bag module to temperatures exceeding 90°C (194°F).
^ Do not allow oil, grease or water to come in contact with the air bag module.
