Installation

INSTALLATION

Front Passenger Air Bag Module - Installation:

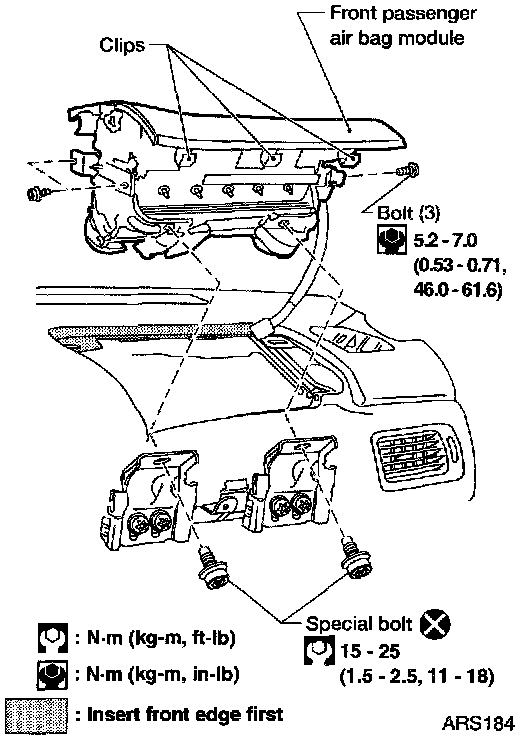

1. Install front passenger air bag module in instrument panel.
^ Insert front edge of air bag module first to ease installation.
^ Ensure harness is not caught between air bag module and support bracket.
^ Install three mounting bolts.
^ Install two new special bolts using TAMPER RESISTANT TORX (Size T50).

Front Passenger Air Bag Module - Installation:

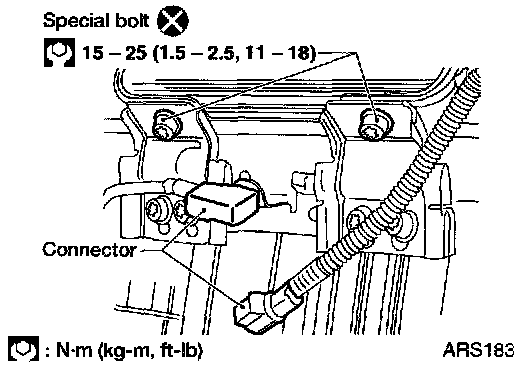

2. Connect inflator connector to air bag harness.
3. Install glove box assembly.
4. Conduct Self-diagnosis to ensure SRS operates properly. (Use CONSULT or warning lamp check.) Clearing Trouble Codes
