Rear Heated Oxygen Sensor Heater

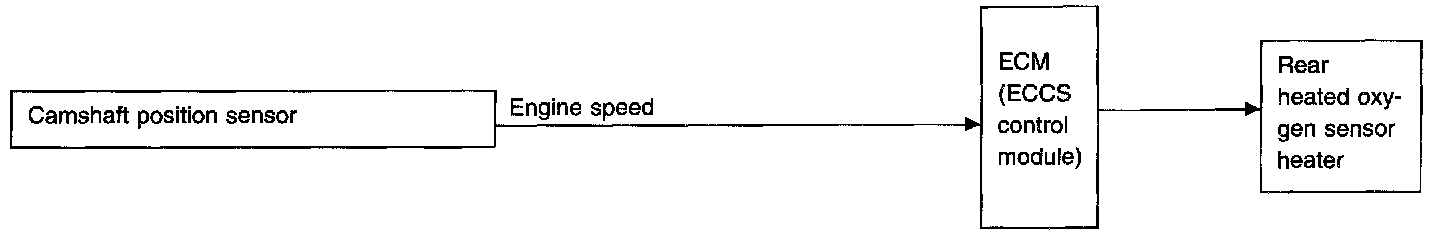

SYSTEM DESCRIPTION
The ECM performs ON/OFF control of the rear heated oxygen sensor heater corresponding to the engine speed.

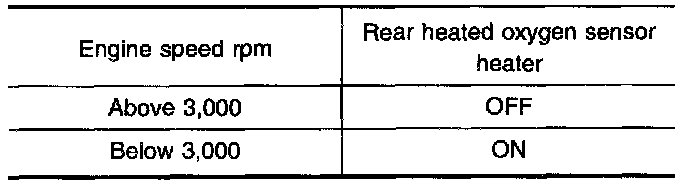

OPERATION
