Oil Pressure Sender: Testing and Inspection

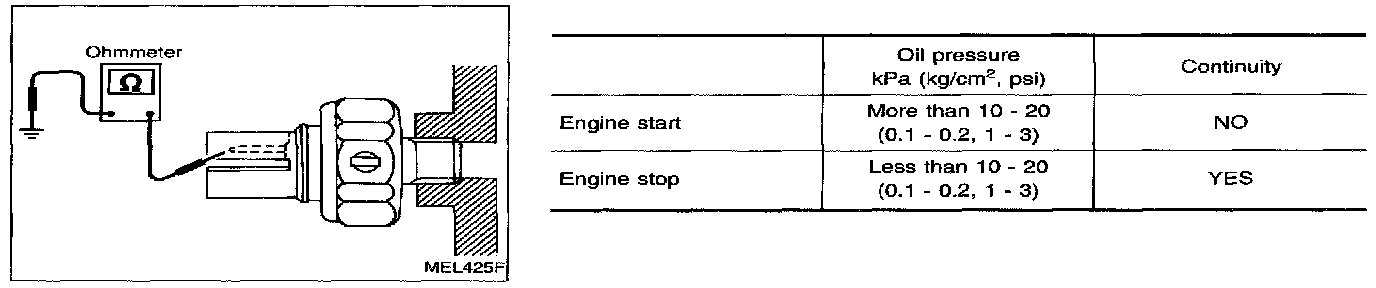

Check the continuity between the terminals of oil pressure switch and body ground.
