System Diagram

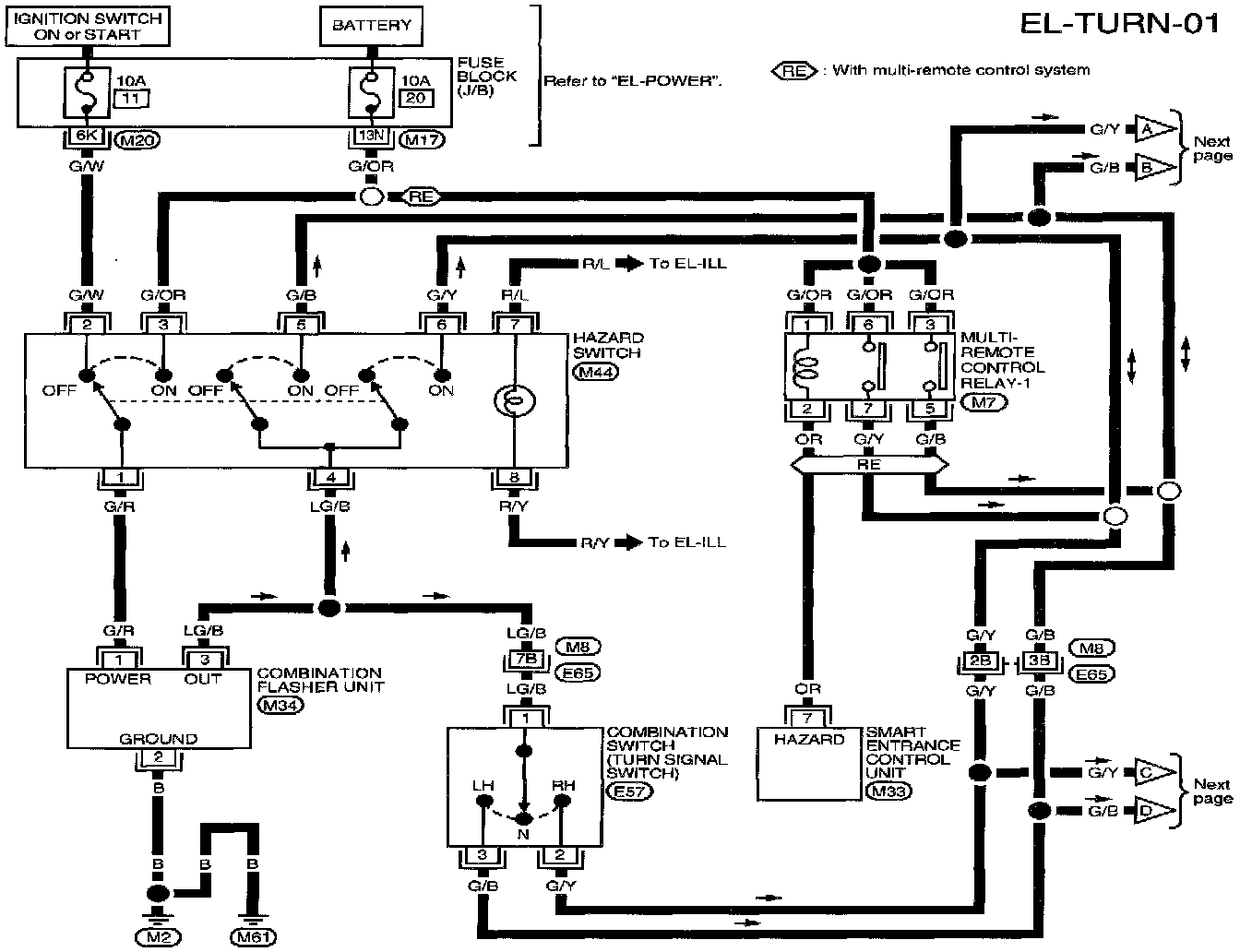

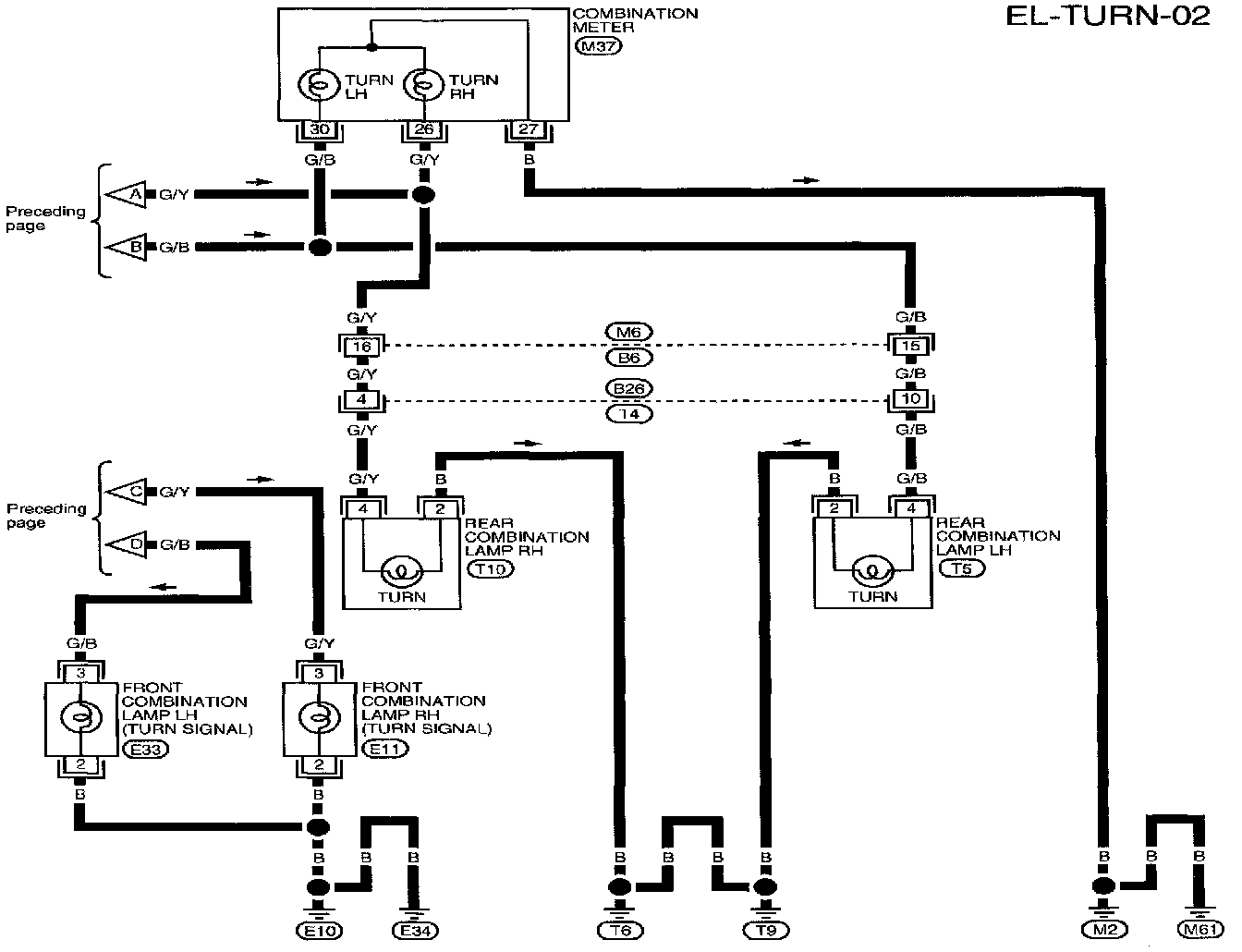

Circuit Diagrams








Circuit Connector





Main Harness And Engine Room Harness Terminal Arrangements
