Air Temperature Sensor ( Ambient / Intake )

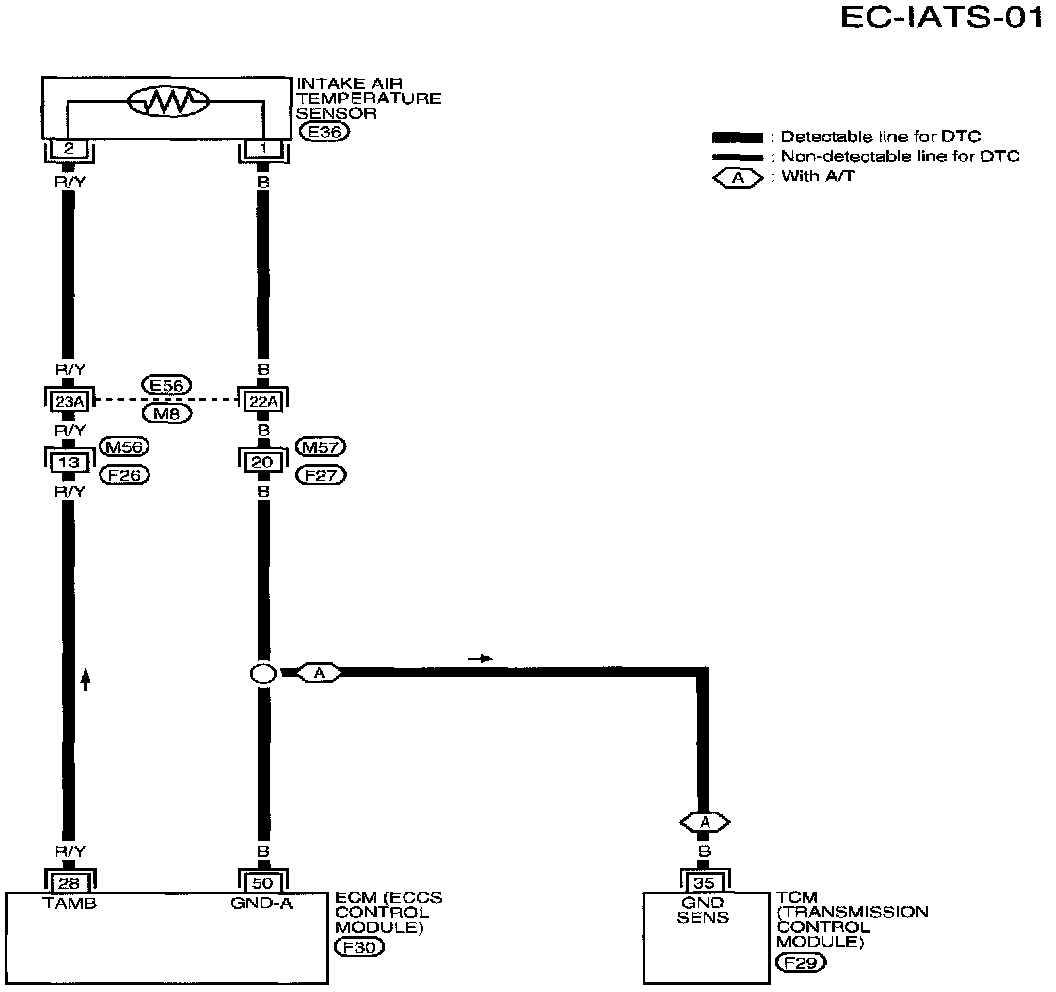

Circuit Diagrams

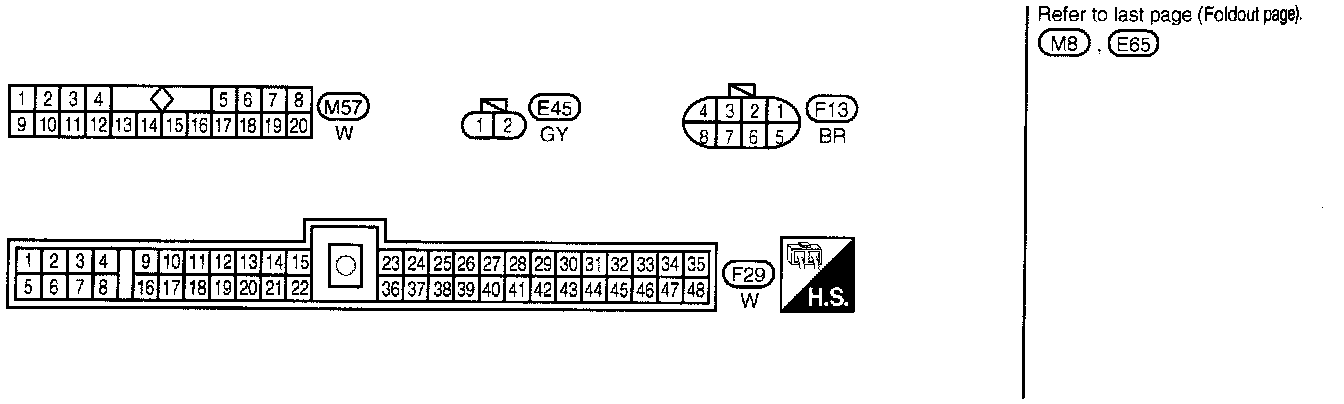

Circuit Connectors





Main Harness And Engine Room Harness Terminal Arrangements
