Sunroof / Moonroof: Service and Repair

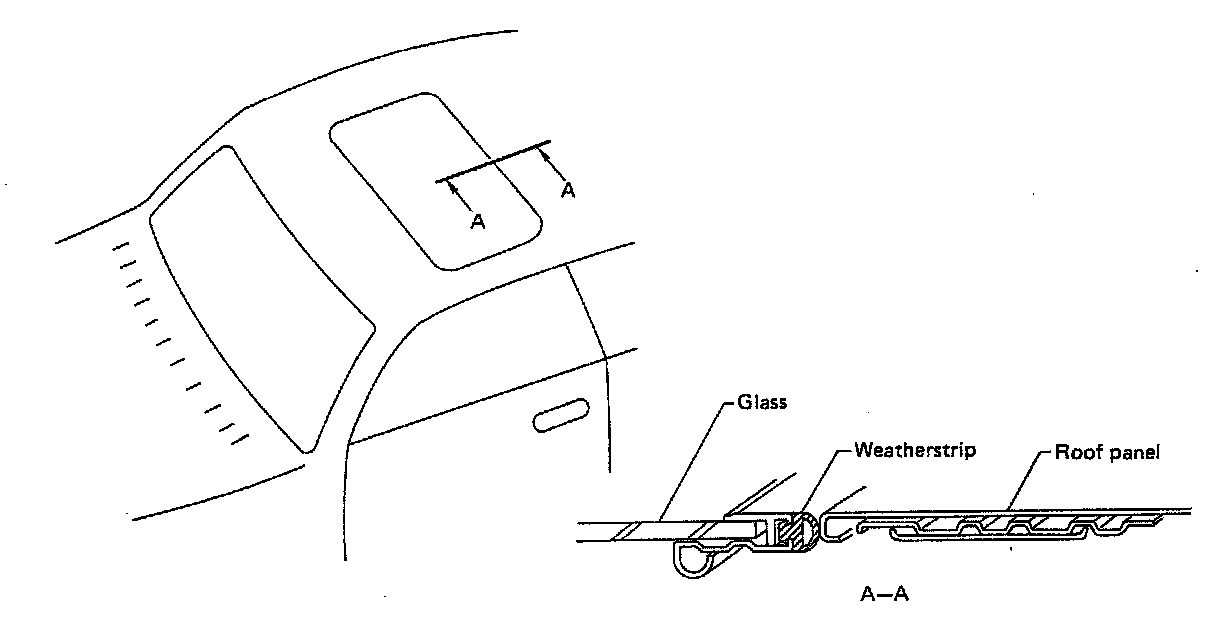

CAUTION:
- After any repair, check sunroof operation and lid alignment.
- Handle finisher plate and glass lid with care so not to cause damage.
- It is desirable for easy installation to mark each point before removal.
- Always work with a helper.
- Remove sunroof frame from rear door opening.

REMOVAL

SUNROOF LID ASSEMBLY
1. Open sunroof shade.
2. Close sunroof lid.
3. Remove side trim clips.
4. Remove the six nuts securing sunroof lid assembly to link assembly.

SHADE ASSEMBLY
5. After removing sunroof lid assembly, remove screws securing rear drains to roof.
6. Remove rear drain.
7. Remove shade assembly.

SUNROOF ASSEMBLY
8. Remove headlining.
9. Disconnect interior lamp harness.
10. Disconnect front and rear drain hoses.
11. Remove nuts and bolts securing sunroof rail and motor to roof.
12. Remove sunroof assembly.





LINK & WIRE ASSEMBLY
13. After removing shade assembly and sunroof assembly, remove the two screws securing holders to sunroof rail.
14. Remove the two screws securing window deflector to sunroof rail.
15. Remove window deflector.
16. Remove the two screws securing guide stoppers to sunroof rail.
